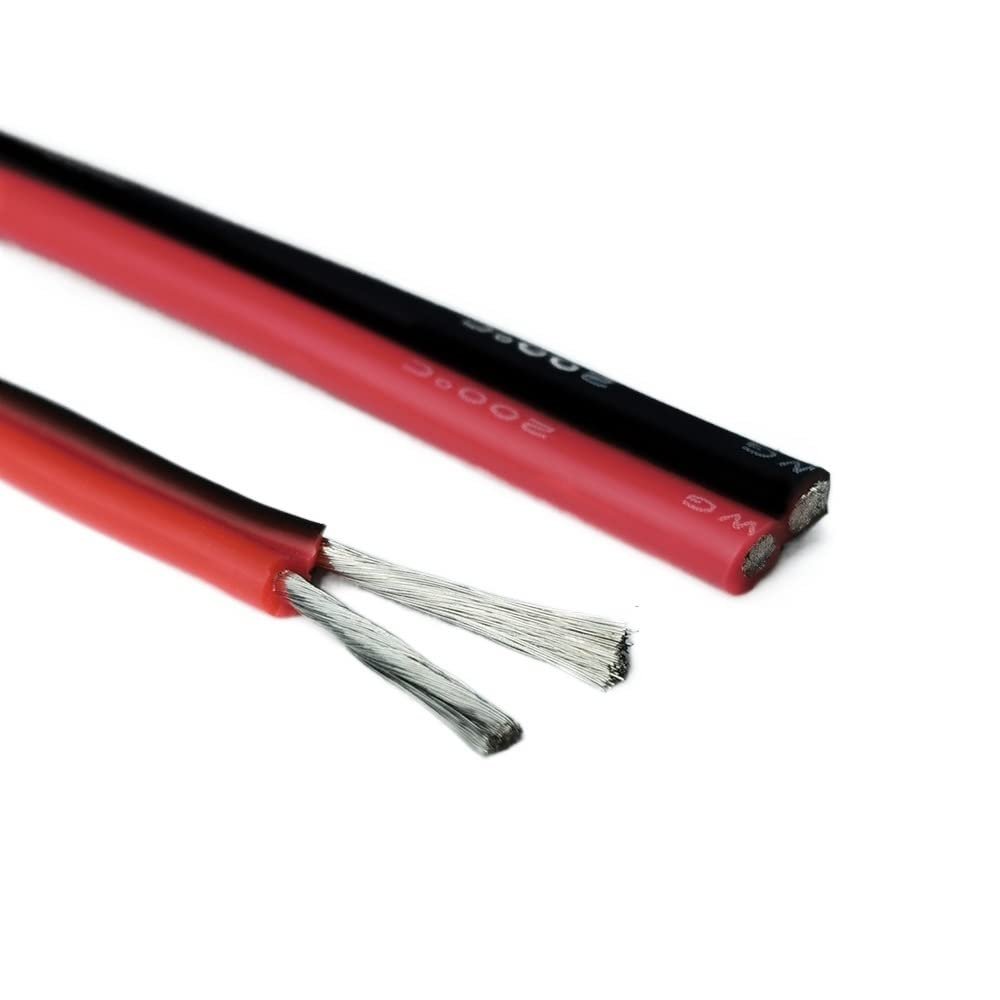

GatherTOOL 5M Heat-Resistant Soft Silicone Wire and Cable 8/10 /12/14 /16/18/ 20/22/ 24/ 26awg Silica Gel Red and Black Parallel Lines (Size : 5m, Color : 18 AWG 0.75mm)

Description

• Insulation Material: Silica gel
• Conductor Material: Tin-plated pure copperConductor
• Color: red black
• This product is widely used in electronic products, batteries, airplane model batteries, model wiring harnesses, electrical equipment and internally connected instrumentation equipment, lamps and motor wires

5-10m/batch heat-resistant soft silicone wire and cable 8 10 12 14 16 18 20 22 24 26awg red and black parallel lines

Insulation Material: Silica gel
Conductor Material: Tin-plated pure copperConductor
Color: red black
Length: 5M
Packing: 5M

use:
This product is widely used in electronic products, batteries, airplane model batteries, model wiring harnesses, electrical equipment and internally connected instrumentation equipment, lamps and motor wires
Home DIY

Detailed parameters of all specifications below
2*8 wire gauge
Temperature: -65 degrees to 200 degrees
Diameter of each copper wire: 0.08mm
Core: 1650 strands (8.3 square mm)
Outer diameter: 6.3mm*2

2*10 wire gauge
Temperature: -65 degrees to 200 degrees
Diameter of each copper wire: 0.08mm
Core: 1050 strands (5.3 square millimeters)
Outer diameter: 5.5mm*2

2*12 wire gauge
Temperature: -65 degrees to 200 degrees
Diameter of each copper wire: 0.08mm
Core: 680 strands (3.42 square millimeters)
Outer diameter: 4.5mm*2

2*14 wire gauge
Temperature: -65 degrees to 200 degrees
Diameter of each copper wire: 0.08mm
Core: 400 strands (2.07 square mm)
Outer diameter: 3.5mm*2

2*16 AWG
Temperature: -65 degrees to 200 degrees-
Diameter of each copper wire: 0.08mm
Core: 252 strands (1.27 mm2)
Outer diameter: 3.0mm*2

2*18 AWG
Temperature: -65 degrees to 200 degrees-
Diameter of each copper wire: 0.08mm
Core: 150 strands (0.75 square mm)
Outer diameter: 2.3mm*2

2*20 AWG
Temperature: -65 degrees to 200 degrees-
Diameter of each copper wire: 0.08mm
Core: 100 strands (0.5 square mm)
Outer diameter: 1.80mm*2

2*22 AWG
Temperature: -65 degrees to 200 degrees-
Diameter of each copper wire: 0.08mm
Grains: 60 servings (0.3 square millimeters)
Outer diameter: 1.70mm*2

2*24 AWG
Temper
