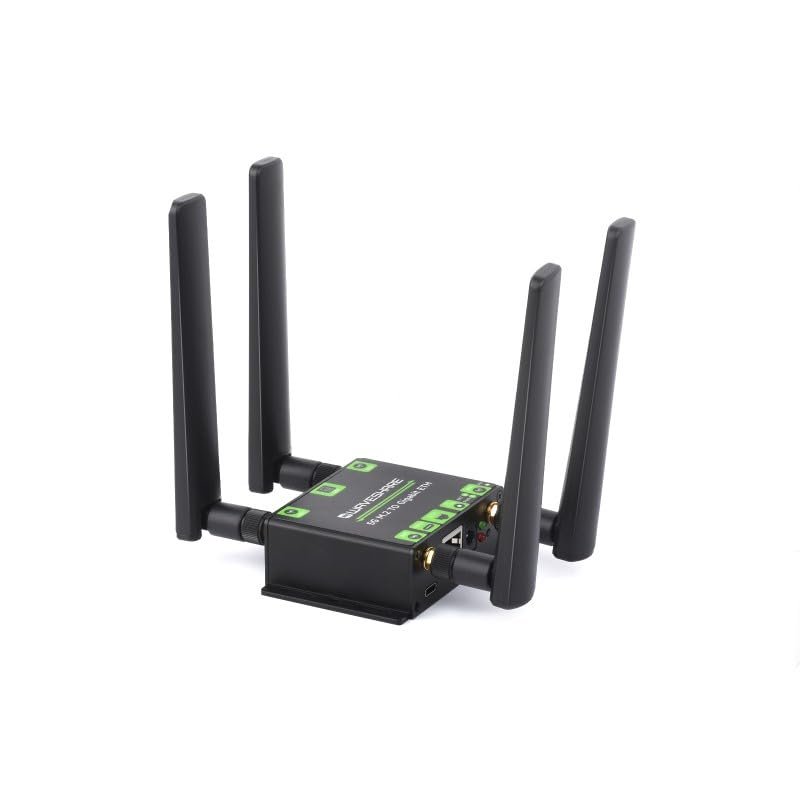

5G M.2 to Gigabit Ethernet Converter, 5G M.2 to USB3.1, Quad Antennas, Onboard M.2 Key B Interface, USB3.1 Port, Includes SIM8262E-M2 5G Module (SIM8262E-M2 5G M.2 to ETH)

Description

• Supports 5G modules with M.2 (NGFF) Key B interface, compatible with mainstream 5G modules from the brands such as SIMCom, Quectel, and Fibocom
• Supports 5G modules in 3042/3052 packages such as SIM82XX, RM5XX and FM160XX series
• Onboard RTL8125 Ethernet chip, supports 5G to Gigabit Ethernet for high speed 5G networking via the Gigabit Ethernet port
• Onboard USB 3.1 Type-A port for connecting to PC, Raspberry Pi, or Jetson series motherboards for high-speed 5G networking or debugging
• Onboard voltage translator circuit, supports 9-12V power supply via DC 5.5mm jack, or 5V/2A power supply via USB 3.1 port

5G M.2 To Gigabit Ethernet Converter, 5G M.2 To USB3.1, Aluminum Alloy Case, Wall-Mount Support, Quad Antennas, Onboard M.2 Key B Interface, USB3.1 Port, Includes SIM8262E-M2 5G Module.
Supports SIMCom / Quectel / Fibocom Mainstream 5G M.2 Modules. Compatible With 3042 / 3052 Packages.

Features At A Glance
Supports 5G modules with M.2 (NGFF) Key B interface, compatible with mainstream 5G modules from the brands such as SIMCom, Quectel, and Fibocom
Supports 5G modules in 3042/3052 packages such as SIM82XX, RM5XX and FM160XX series
Onboard RTL8125 Ethernet chip, supports 5G to Gigabit Ethernet for high speed 5G networking via the Gigabit Ethernet port
Onboard USB 3.1 Type-A port for connecting to PC, Raspberry Pi, or Jetson series motherboards for high-speed 5G networking or debugging
Onboard voltage translator circuit, supports 9-12V power supply via DC 5.5mm jack, or 5V/2A power supply via USB 3.1 port
Onboard standard SIM card slot
Onboard power supply and network indicator, reset button, for checking the working status of the module and 5G debugging
Aluminum alloy enclosure with oxidation dull-polish surface, CNC process opening, solid and durable, desktop or wall-mount support
Comes with 4 5G omnidirectional high-gain antennas and 12V power supply adapter, easy to use directly with 5G module

Applications
1. Networked Medical Treament
2. Intelligent Agriculture
3. Smart City
4. Smart Robots
5. Security Monitoring Networking
6. Intelligent Bus WIFI

PACKAGE CONTENT
1. 5G M.2 TO Gigabit ETH x1
2. SIM8262E-M2 + Heatsink x1
3. 5G antenna x4
4. 12V Power Supply x1
5. USB Type-A to Type-C cable ~1m x1
