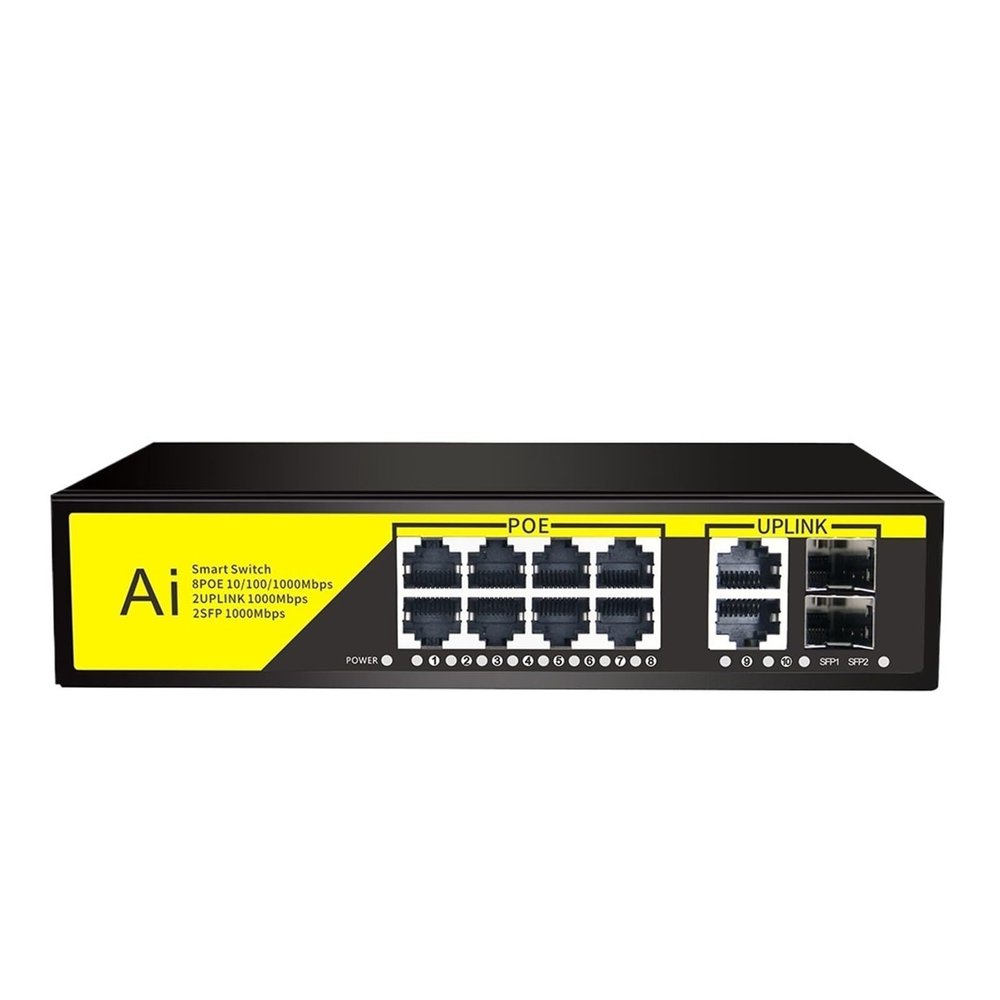

52V POE Switch 100Mbps/1000Mbps Ethernet Switch 6/12 Port 802.3 Af/at Ethernet Network(Black-12port)

Description

• Hubs

Hubs
port:
8-port POE 10/100/1000 Mbps
2-port uplink 1000Mbps
2-port SFP 1000Mbps
material: metal
Backplane broadband: 20 Gbps
Standard: IEEE 802.3af/at
Power output: DC 52V 2.3A 120W
Power input: AC/IN 110~240V
Communication mode: full duplex
6-Port 100Mbps Product Description
1.4-port PoE switch: 4 x 10/100 Mbps PoE ports for secure IP camera connections + 2 x 100/1000Mbps Fast Ethernet uplink ports for router/NVR connections, and play
248V POE switch provides power and data from a single point over a single Cat5 cable using Power over Ethernet PoE
3.Seitch can be used on any 10/100Mbps link and provides industry standard IEEE 802.3af power.
4. Advanced auto-sensing algorithms power 802.3af end devices, and in addition, PoE switches use automatic uplinks to automatically determine PoE requirements, speed, duplex, and cable type. Easy to operate and reliable.
product information
Product name: MINI 4-port 10/100M active POE switch (4+2)
Data pins: 1/2+, 3/6-
Power supply type: built-in, 1/2+, 3/6-
PoE output power: 15.4W/30W
Connector: 4*10/100mbps POE port, 2*10/100mbps uplink port
Network media Cat5 (UTP) or more
Network standards: IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3x flow control IEEE 802.3af Power over Ethernet
PoE power: 15.4W per port (IEEE802.3af).
Wiring: Data and power provided via pairs 12 and 36
Half-duplex backpressure and IEEE 8023x full-duplex flow control
Buffer memory 48Kb embedded memory per unit
Backplane bandwidth: 1.2G
Network delay: 100Mbps to 100Mbps transmission, 64-byte frame in store-and-forward mode is less than 20us
strength
Input: 52V DC input
PoE power consumption: 15.4W per port (IEEE802.af)
LED Indicator System: Power, PoE Max Power
Per port: link, activity, speed, PoE activity, PoE errors
Environmental specifications
Working temperature-10-55(32-104)
Storage temperat
