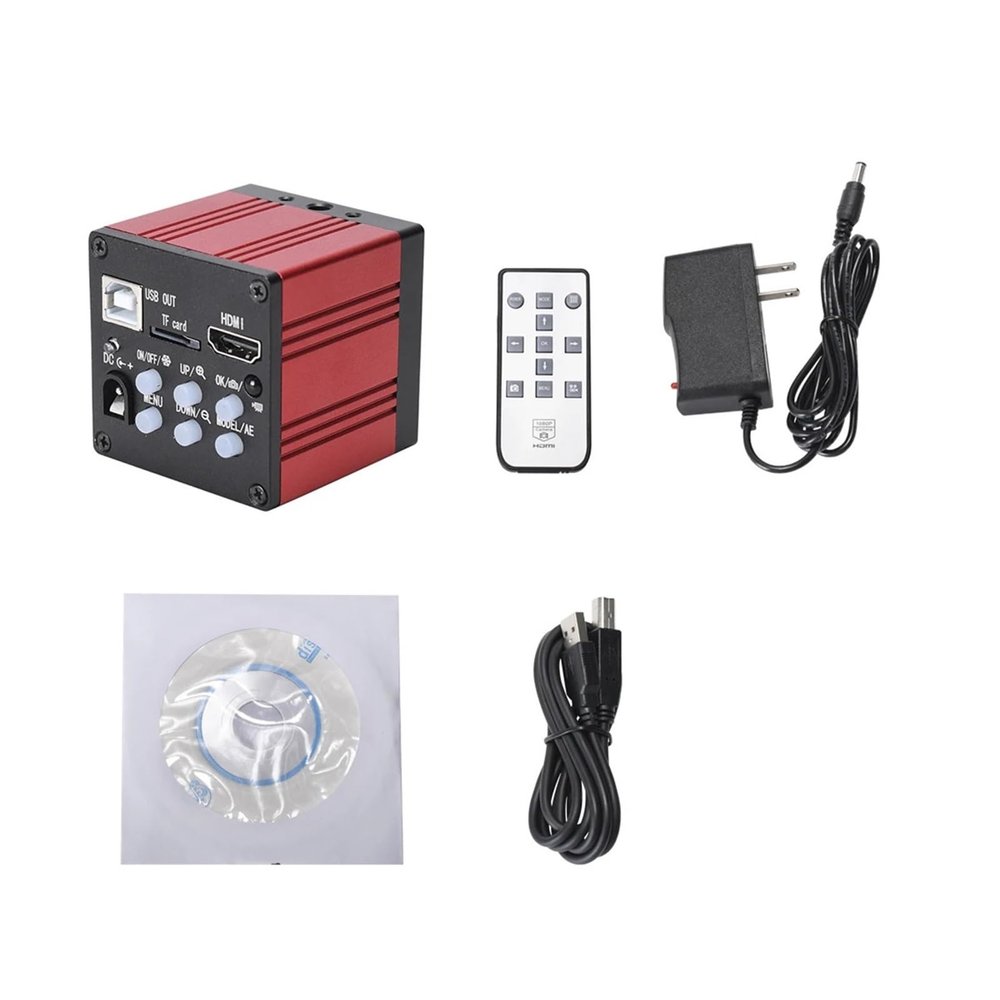

51MP 60FPS Microscope Camera 180X Lens HDMI USB 1080P Industrial Electronic Digital Microscope for Phone Repair PCB Soldering(Red Camera Full kit)

Description

• 60FPS video recording ensures smooth and real-time viewing, ideal for phone repairs and PCB soldering tasks.
• Versatile connectivity options with HDMI and USB ports make it easy to connect to various devices for instant use.
• 180X magnification lens allows for in-depth examination of small components, perfect for electronics and industrial applications.
• with adjustable LED lighting enhances visibility and provides optimal illumination for detailed work.

Noting:
1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK ( no need to use the power supply)
Camera Features:Model: Camera with HDMI USB2.0 two output
Image format: jpg
Image resolution: 51MegaPixel
Video format: MP4(for TF card)
Video recorder: 1080P@60FPS
HDMI Video resolution: 1920*1080 @ 60FPS
USB Video resolution: 1920*1080@30FPS; 1280*720@30FPS;640*480@30FPS; 320*240@30FPS
White Balance: Auto/Manual
Light: Auto/Manual
Exposure: Auto/Manual, value adjustable
Line: different color,5 horizontal line , 5 vertical line,any positions
Camera Specification:Image sensor: 51megapixel CMOS sensor 1/2.33 inch
Effective pixel: 51megapixelPixel size:1.335m 1.335mFrame rate:60fpsDefinition:FULL HD
Housing:metal
Lens:C/CS
Digital Zoom:Support
Brightness control:Auto/manual
Film and record:Support
TF card interface:Max 64G
USB interface:Standard usb2.0 interface (Type B)
Input Voltage: DC 12V
180X C-Mount Objective Lens:
Working distance: 100-150mm (without any barlow)
Working distance: 200-205mm (with 0.5X barlow)
zoom c-mount Lens
0.5X C-mount adapter
zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 168mm(L) * 50mm(DIA)
Weight: 450g
144 LED Ring Light:
144 bright white LED bulbs
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,
Variable intensity control
Power input:
