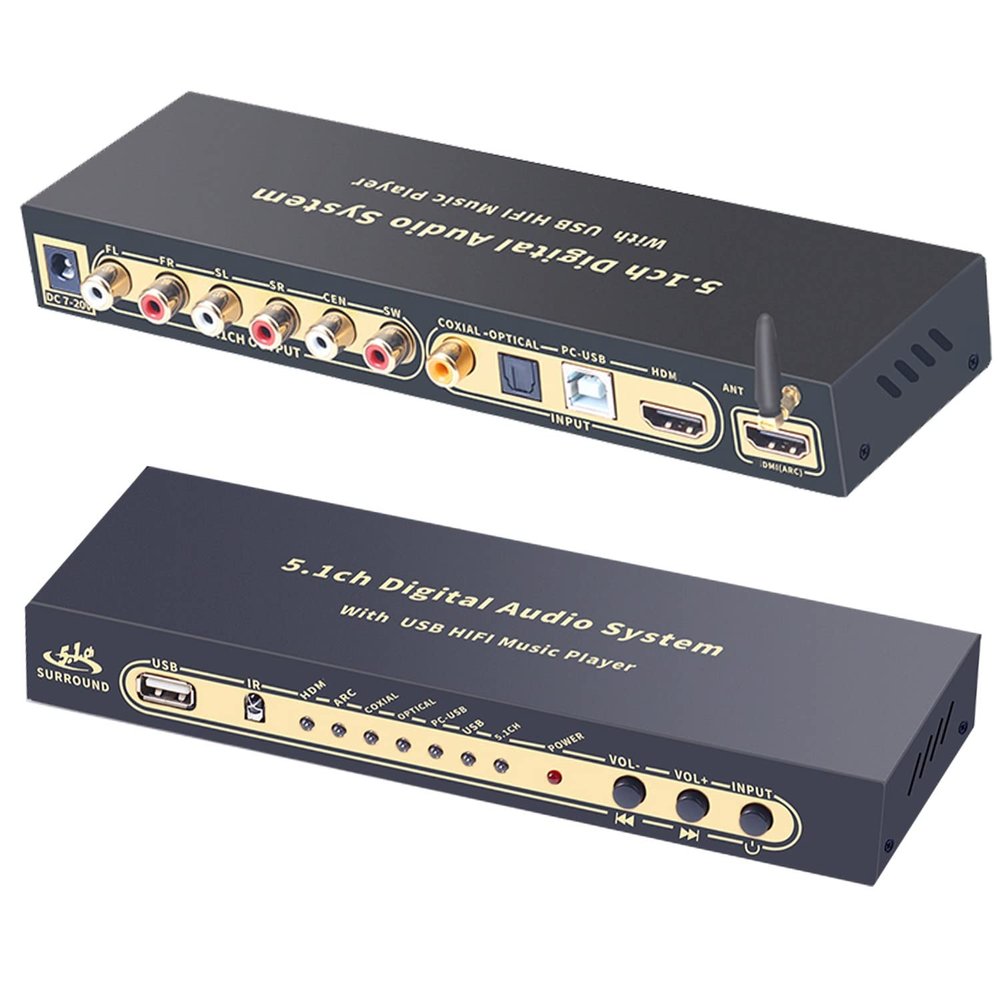

5.1CH Audio Converter Decoder DAC DTS AC3 FLAC APE 4K*2K HDMI to HDMI Extractor HD Dolby Atmos U-Disk HDMI Bluetooth 5.0 Fiber Optic ARC Coaxial Cable for Blu-ray Player PS Computer

Description

• [5.1CH LOSSLESS SOUND QUALITY SURROUND] - Built-in high performance RTOS operating system, supports DTS / DOLBY AC3 / LPCM / PCM format, USB sound card supports WINXP / WIN7 / WIN8 / WIN10 and other system source code input.
• [AUDIO-DECODER] - Decode HDMI, Bluetooth, fiber optic, coaxial, PC-USB, U-disk playback and other audio into a 2.0 or 5.1 independent channel output (6 channels) and amplify the volume via a power amplifier or an active loudspeaker output.
• [HDMI ARC] - On the HDMI interface that supports ARC, TVs and projectors can return high resolution audio signals through the ARC to the decoder via the HDMI cable, and the decoder decodes the audio output to the amplifier or speakers without connecting a separate audio Cable.
• [HDMI (X1) 4K 3D HD] - HD HDMI with one input, one output, fiber optic coaxial input, support for HDCP, ARC and 4K resolution, suitable for various network boxes or set-top boxes and other standard HDMI -Interface devices to achieve 5.1 CH surround sound system.
• [WIDE COMPATIBILITY] - With SPDIF / coaxial input and 2.0 / 5.1ch RCA + 3.5mm audio output, suitable for Blu-ray, DVD, PS3, PS4, HDTV, etc. (Note: The RCA output should be connected to the amplifier first, but not directly to the speakers.)

FEATURE:
- Support one HDMI input, one Coaxial input, one Optical input,one PC-USB input, one AUX input, one USB 2.0 input. You can switch different signal sources randomy via Button or Remote
- Support one HDMI(ARC) output, one Optical output,one Coxial output, one 5.1ch analog audio output of RCA , all audio output simultaneously
PSPlease use 19-core standard HDMI cable
- All signal source(HDMI/ARC/COXIAL/OPTICAL/PC-USB/USB) can decode to 5.1ch output, it is audio decoder system
- Support Bluetooth 5.0 audio receiver
- HDMI resolution up to 4Kx2K@30hz, support 3D
- Supported audio farmat :DTS HD/DTS/DTS-ES/Dolby Atmos/ AC3/WAV/FLAC/APE/HDCD/AAC/WMV/MP3/M4A etc
- Support 5.1ch/2.0ch output mode,FL/FR active when 2.0ch output mode
- Support Button or IR remote switch input source
- Supporting IR adjust VOLOME
- The power-off memory function, automatically switch to the last used signal channel, USB broadcast memory before the power-off.
- The use of DC 12V/1A external power adapter power supply, wide voltage can use DC (5-19V) power supply

HDMI version: HDMI1.4 & HDCP 1.4
HDMI baud rate: 10.2 Gbit / s
HDMI DDC: 5 Vpp (TTL)
DSPsample: 32-192 KHz
DigtalLevel: 0.1-1.5 Vp-p
S / N @ 0dB: 90dB
Frequency: 20Hz-20KHz
Input: AC100V-240V 50/60 Hz
Output: DC 12V / 1A
HDMI bandwidth: 340 MHz
HDMI TDMS: 0.5-1.5 Vpp (TTL)
HDMI cable length: 20 m standard cable
DSP baud rate: 16-24 bit
5.1-channel output level: 1.5 V RMS (1 kHz at 0 dB)
THD: 0.03%
MAX. Power: 200 mA
Operating humidity: 10-90% RH (non-condensing)
Storage humidity: 5-95% RH (non-condensing)
Product weight: 450g
