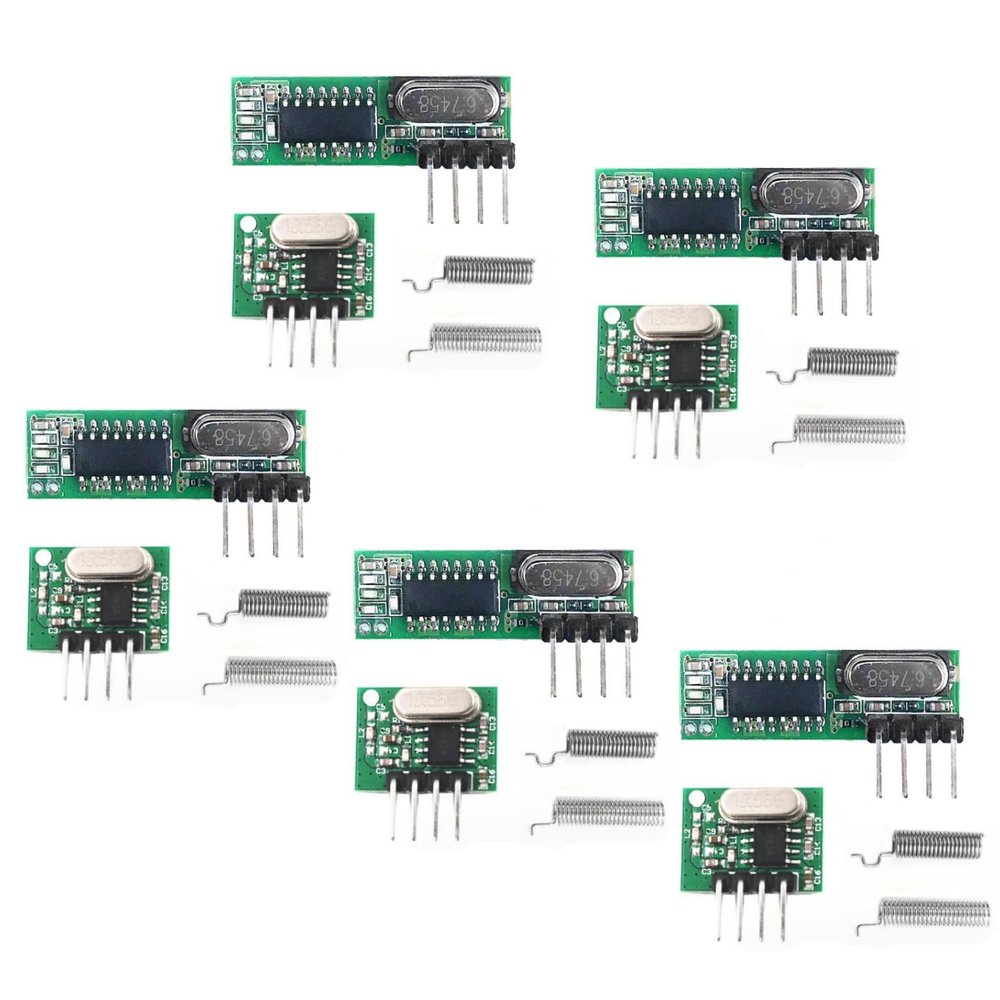

5 PCS 433mhz Wireless RF Transmitter and Receiver with Antenna Ask Remote Control Module DIY Kit for Arduino

Description

• 433mhz RF Transmitter and Receiver Superheterodyne UHF ASK Remote Control Switch Module For Arduino Wireless Diy Kit.
• Mains input voltage range: 2.2V-5V; Operating frequency: 433.92 MHz, bandwidth of about 150KHz.
• Low-power performance, along with high dynamic range (greater than 60dB). Module uses highly integrated chip, built front-end low-noise amplifier,Mixers, filters, frequency synthesizer circuit, etc., can maximize the signal optimization.
• Support ASK / OOK modulation, the receiver sensitivity of -108dBm.
• Applications: Can be used for wireless power switch, socket, remote control switch, receiver module, smart home products, remote control curtains, remote MP3, and so on.

Product Features:
1. Support ASK / OOK modulation, the receiver sensitivity of -110dBm;
2. Operating frequency: 433.92 MHz, bandwidth of about 150KHz;
3. Mains input voltage range: 3.0V-5V; Working current: Type :5.0mA (Requirement:VDD=5V) ; Type :6.0mA (Requirement:VDD=3V)
4. Quiescent Current: 1uA
5. Low power consumption;
6. Good selectivity and spurious radiation suppression, and easy to pass CE / Fcc international certification;
7. Good local oscillator radiation suppression, multiple receiver module to work with (ie, more than single income) and will not interfere with each other, used together without affecting the receiving distance;
8. Multiple transmission rates, the general module for 2KHz, up to 10KHz;
9. Temperature range: -40-85C
10. Ultra-small size of 30.25 8.5 1 (mm) (can be customized according to customer)
11. External antenna: 32CM single core wire, wound into a spiral
Applications
1.wireless power switch, socket, remote control switch, receiver module,
2. access control, electric cars, motorcycles, automobile anti-theft products, remote door openers, closers control system
3. security, surveillance systems, home security products, electric doors, alarm host, alarm
4. rooms controls, shutter doors, windows, remote control socket, remote control LED, remote audio remote control electric doors, garage door remote control, remote control retractable doors, remote rolling gates, sliding door
5. smart home products, remote control curtains, remote MP3, audio
Package Included:
5 * Receiver module
5 * Transmitter module
10 * Antenna (Short antenna for Transmitter; long antenna for Receiver.)
