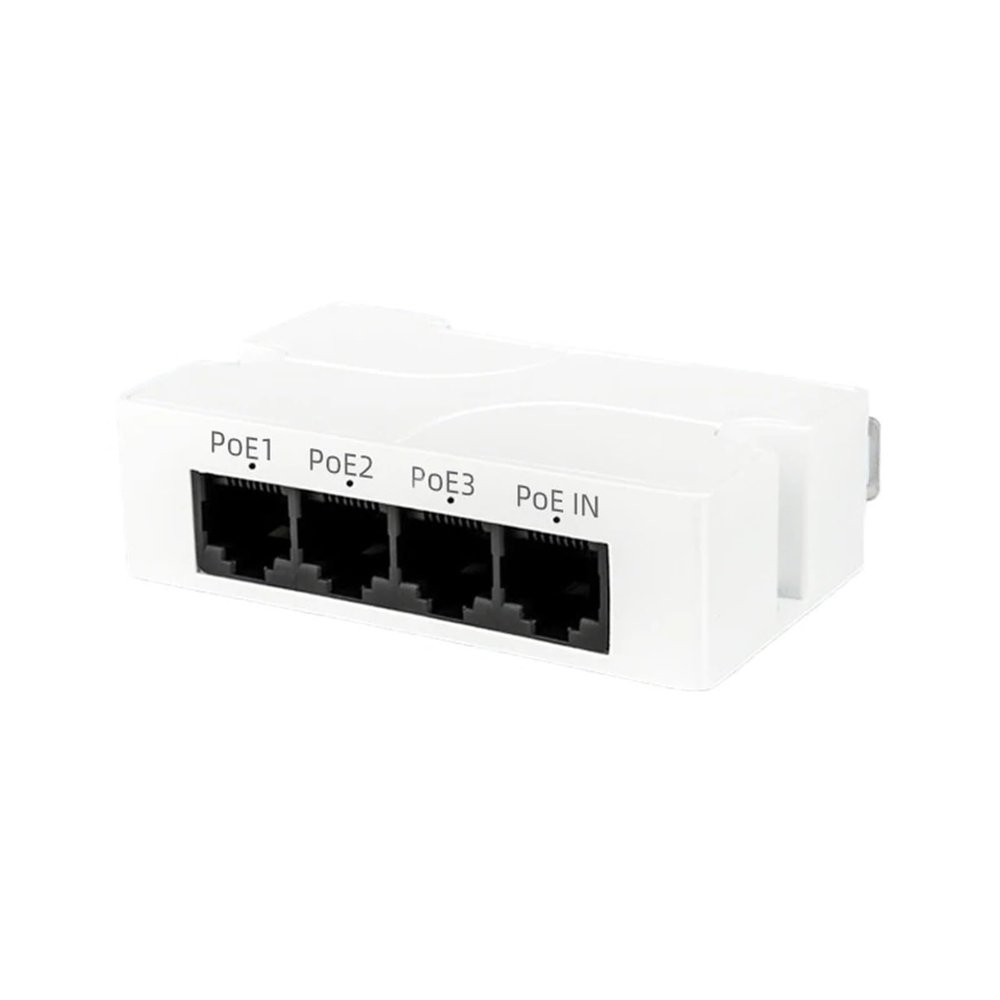

4-Port POE Extender 10/100Mbps 1 to 3 Network Switch Repeater with IEEE802.3af and Play Function

Description

• Hubs

Hubs
Fast Ethernet PoE repeater, this product provides 1 port fast IEEE802.3af/at (PoE) receiving port input,
3-port fast IEEE802.3af/at(PoE) power port output.
Product Description
1. Complies with IEEE 802.af Power over Ethernet (supports 10/100M)
Extend PoE range by another 100 meters
2. Automatically detect and protect PoE equipment from damage due to incorrect installation
3. and play, no configuration required
The 4.3-port PoE extender can forward Ethernet and PoE power to 1 end device through Cat5, Cat5e, Cat6, Cat6e, UTP cables.
The 5.3-port PoE extender has three 10/100M Lan ports, one of which is used for power input and the other three are used for power output. Compliant with 10/100/1000 BASE-TX, IEEE 802.3 af-PoE.
6. Use with AP, IP camera, IP phone and other network equipment when the power cord is missing or far away from the power socket.
7. Installed in hotels, schools, buildings, villages, etc.
Specification
Network standards: IEEE802.3, IEEE802.3u, IEEE802.3x
PoE connection standard: IEEE 802.3af/at
PoE port input power: maximum input 30W
PoE port output power: maximum output per port 24W/average 8W
PoE powered input transmission core: 1/2+, 3/6-, 4/5+, 7/8-
PoE power output transmission core: 1/2+, 3/6-
POE power transmission distance: 100 meters
Power transmission medium: 10/100/1000BASE-TX: Category 5 and above unshielded shielded twisted pair
address table: 2K
Packet buffer memory: 48 bytes
Switching capacity: 1.0Gbps
Network protocols: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-flow control, IEEE 802.3af-Power over Ethernet;
Regulatory Compliance: FCC Part 15B, ROHS Directive 2011/65/EU, Low Voltage Directive 2014/35/EU, EMC Directive 2004/108/EC;
Working temperature: -10 to 55
Working humidity: 10%~90%, no condensation;
Dimensions: 82x52x23mm
Weight: 55g
