4K UHD 60FPS Industrial Camera IMX 334 Electronic Autofocus 180X Zoom Digital Microscope for Phone Repair PCB Soldering(120X Parfocal Lens)

Description

• Features 180X optical zoom to capture intricate details in phone repairs and PCB soldering.
• Electronic autofocus ensures precise focusing on your subject, making it easier to work on small components.
• Compatible with various devices, perfect for electronics enthusiasts, technicians, and hobbyists alike.

1:PC Support : Windows XP/7/8/10 system
2:For USB output, the white balance, exposure and color adjustment are automatic, they can't be adjusted. For HDMI output, the functions can only be adjusted while connecting with monitor, if you connect the camera with computer, the functions also can not be adjusted.
3:When use USB connection, please make sure no TF card in the camera ,TF card storage is only for HDMI output. USB output will be storage in PC.
4:when connect the camera with computer, just plug the USB line is OK (power supply is not required)
Specification:
Real-time output resolution: 4K/2K/1080P
Sensor Size: 1/1.8inch
Pixel Size: 2.0 x 2.0 m
Image Resolution: 8528 x 4808 (41 MegaPixel)
Frame rate: 3840 x 2160 @30FPS(4K); 1080P @60FPS
Image Format: JPEG
WaveLength[nm]: 400nm~1000nm
Lens Type: C/CS Mount
Storage: TF Card, Maximum support 256G (TF card is not included)
HDR Function: Support HDR,Multiple exposure HDR, Digital overlap HDR
Video output interface: HDMI/USB dual interface can output image simultaneously
Timer function: Support taking pictures/video recording at specified time
Comparison on the same screen: Real-time observation and comparison of two products
White Balance: Support One-click, Auto and Manual white balance
Image Zoom: 7x digital zoom
Transverse and vertical line: Support multi-color, 5 pcs of transverse lines/vertical lines, movable Different color,5 horizontal line, 5 vertical line, any positions
Exposure: Auto/Manual, value adjustable
Video format: Video format
Size: 454553mm
Noted: Single camera doesn't support autofocus function

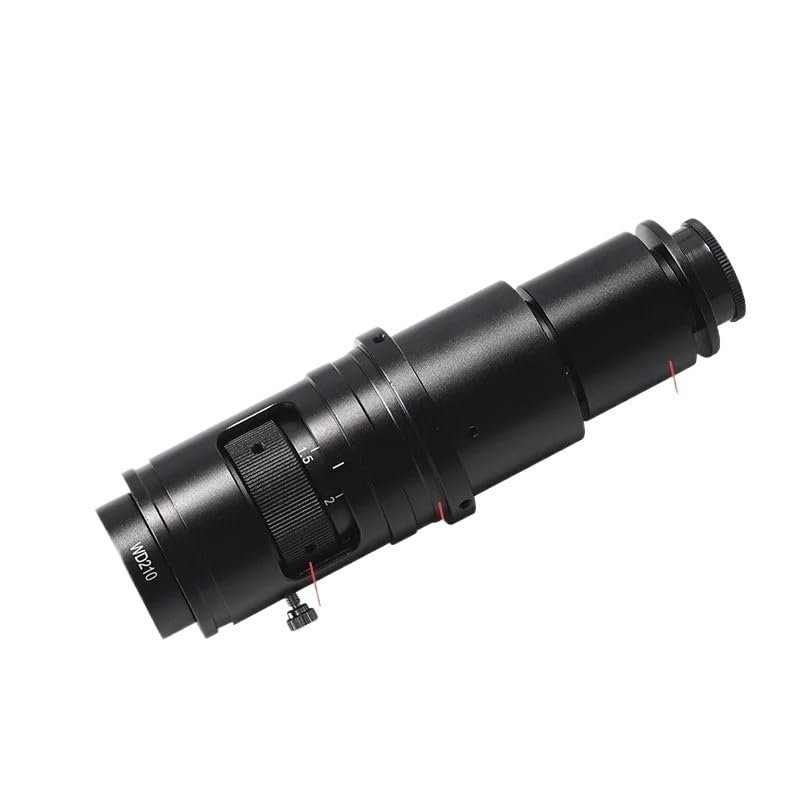

120X Parfocal Lens:
Working distance: 210mm (Autofocus only work at this working distance)
Connector: C-mount
Field of View: 6mm*4mm to 46mm*26mm
Objective Lens: 0.7X - 5X (about 10 - 120X on the display)
Fixed working distance with autofocus
38 LED Light:
38 bright white LED b
