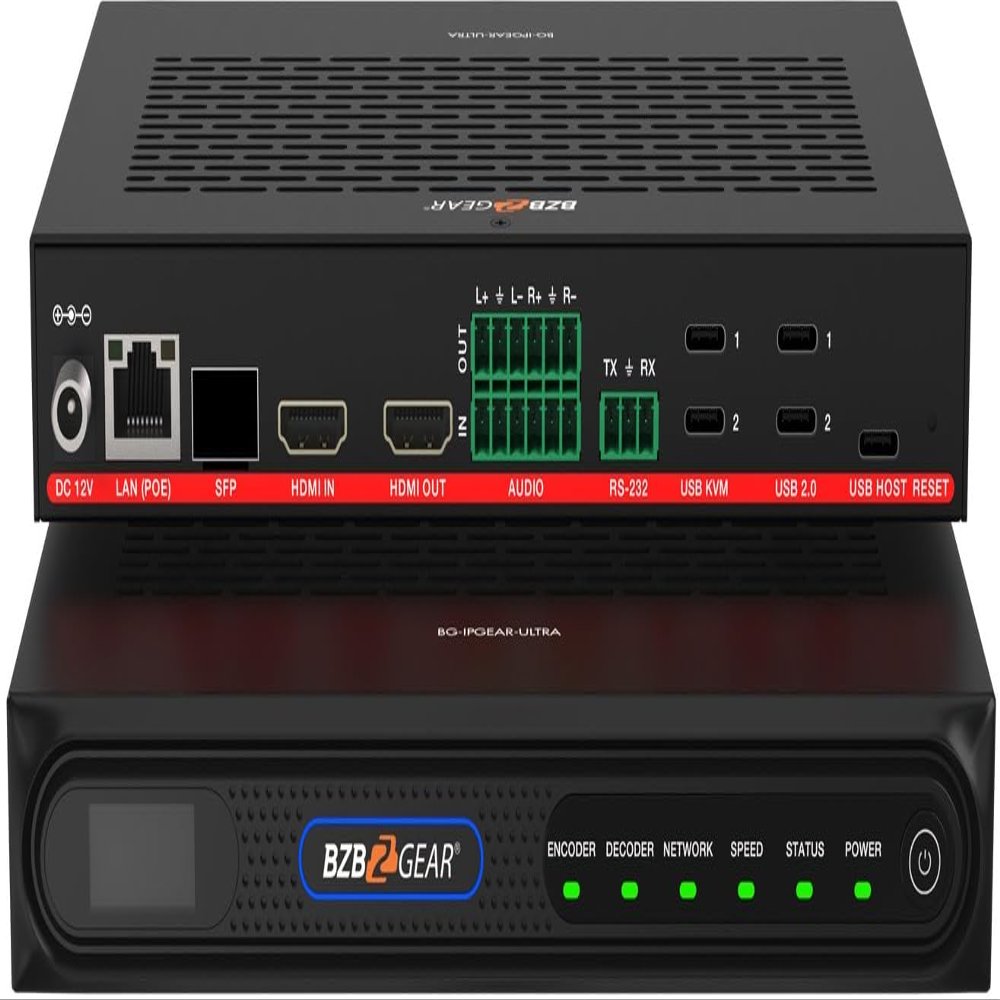

4K HDMI 2.0 Over IP Transceiver with Seamless Matrix Switching/Video Wall/MultiView/KVM/USB 2.0/POE

Description

• HDMI 2.0b and HDCP 2.2 - Ensures seamless integration with the latest video standards. 4K@60Hz Video - Delivers stunning image quality with support for up to 18Gbps video bandwidth. High-Quality Audio - Supports LPCM 2.0CH 48kHz for clear and precise audio output.
• User Rights Management - Offers secure and flexible managing access for authorized users. Window Roaming - Allows a single decoder unit to process up to 16 signals, enabling windowing, roaming, overlaying, and splicing for dynamic displays. Audio Embedding/De-Embedding - Provides flexible audio management capabilities for embedding and extracting audio.
• Universal H.264/265 Protocol: Ensures seamless integration with IPC and security camera systems. Multi-Screen Splicing: Supports high-definition background images, multi-screen displays, scrolling subtitles, and character overlay for advanced visual presentations. Signal Extension and Distribution: Facilitates point-to-point extension, multicast mode, matrix, and video wall functions over a 1G network switch.
• Transceiver Flexibility: Compatible with both fiber and copper connections for versatile installation options. POE Support: Features standard 802.3af Class 3, PD mode for power over Ethernet. Central Management: Includes mobile app support for comprehensive system management.
• HDMI Local Loop-Out: The encoder supports HDMI local loop-out for additional display needs. Visual Interaction Mode: Provides a comprehensive view of signal sources, screen status, scene preview. KVM Seat Management: Supports both one-to-one and one-to-many configurations, allowing efficient PC management.

Introducing the BG-IPGEAR-ULTRA 4K60Hz advanced AVoIP kit. Key features of the BG-IPGEAR-ULTRA series include HDMI 2.0b and HDCP 2.2 compliance, support for video resolutions up to 4K60Hz (4:4:4), and a video bandwidth of 18Gbps. Audio formats support LPCM 2.0CH at 48kHz. The integrated design of the encoder and decoder supports both fiber and copper connections, with a window roaming function that allows a decoder unit to process up to 16 signals for arbitrary windowing, roaming, overlaying, and splicing. The system supports KVM seat management, universal H.264/265 protocol, high-definition background images, multi-screen splicing, scrolling subtitles, character overlay, point-to-point signal extension, signal distribution, multicast mode, matrix, and video wall functions over a 1G Network Switch. It also features integrated central managing over APP on portable devices, user rights management, flexible operating via KVM, APP, and standard POE support (802.3af Class 3, PD mode). The encoder supports HDMI local loop-out and audio embedding and de-embedding functions, along with comprehensive visual interaction modes, signal source, large screen status, scene preview. The BG-IPGEAR-ULTRA transceiver is a versatile AV over IP solution that offers exceptional audio and video quality with ultra-low latency. It supports both fiber and copper connections, automatically prioritizing copper for seamless switching. Capable of extending audio and video signals over a standard 1G network switch, it reaches distances up to 328 ft/100 m. The transceiver enhances its functionality with seamless switching, video wall capabilities, multiview options, and KVM seat management. Its flexible design allows it to function as either an encoder or a decoder, simplifying installation and inventory management.
