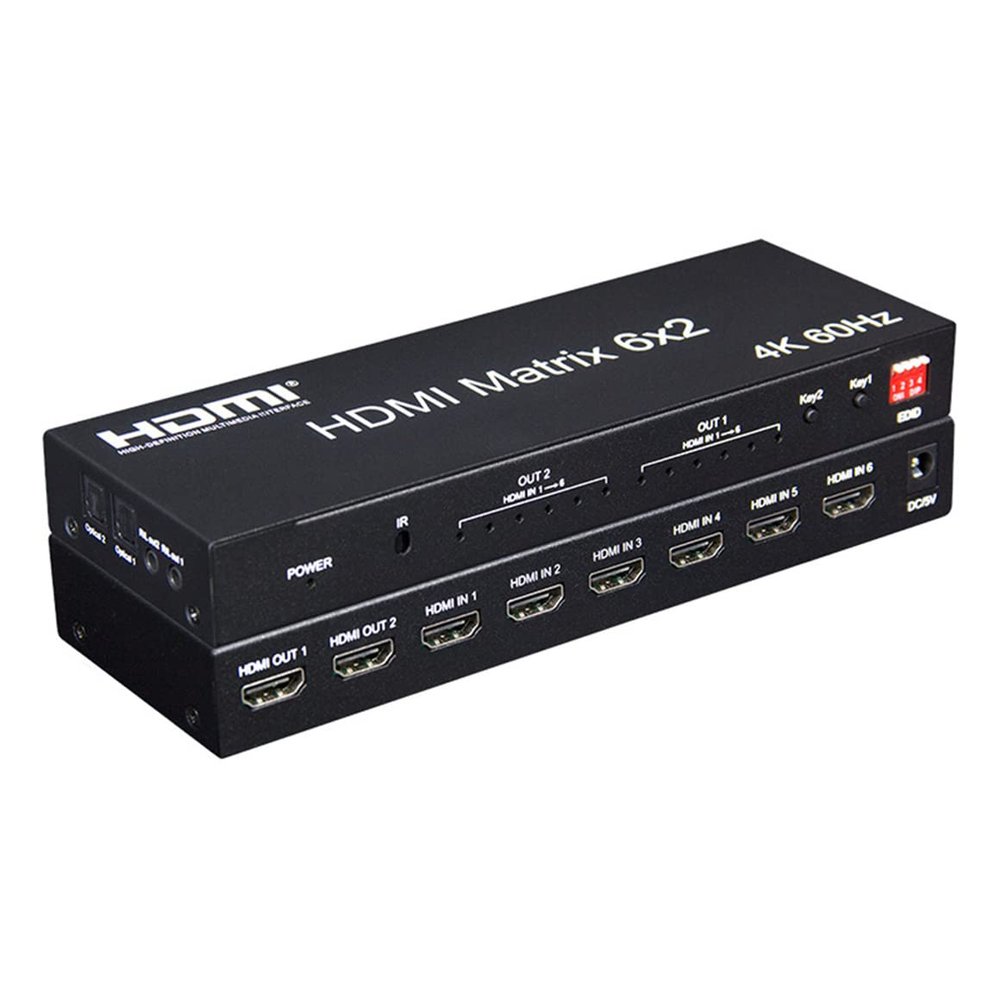

4K 60hz 6x2 HDMI Matrix 6 in 2 Out HDMI Splitter Switch 4x2 HDMI Matrix Audio Video Converter with EDID for PC TV Dual Monitor (6x2 HDMI Matrix)

Description

• 1. Switcher/Distributor: HDMI2.0 six-input two-output 4K@60Hz matrix, six switches, two distribution. Audio separation, stereo/optical audio output, external speakers/headphones can be connected Optical fiber, 3.5mm dual audio interface (two optical fibers + two 3.5mm interfaces).
• 2. Four major features: anti-static technology to prevent electronic components from being damaged by static electricity. Anti-surge technology enhances product stability and prevents surge impact. 4K*2K/60HZ, enjoy high-definition vision and experience the delicate world. 3D imaging technology, 3D large-screen viewing and enjoy three-dimensional visual effects.
• 3. Compatible with many devices: support set-top boxes, desktops, notebooks, PS4 game consoles and other devices with HDMI interface, connect projectors, monitors, etc., plug and play. Compatible with multiple systems: compatible with Windows series, Mac OS, Linux and other systems, no need to install drivers, plug and play.
• 4. Button/remote control switch: double choice, remote control switch or manual button switch, any screen is under your control.
• 5. Wide range of applications: suitable for home sharing, TV stores, advertising display, multimedia teaching and other scenes.

Introduction : .
The HDMI 4K 60Hz matrix 6x2 can connect 6 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. The matrix allows six HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output ports can realize independent audio output by optical fiber or stereo head phone.
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Support 3D video format;
Support 4K (input) to 2K (output) (Down scaler);
Support 2 HDMI audio extraction, 3.5mm headphone jack and optical fiber jack output at the same time;
6 HDMI signal input switching or distribution to two HDMI displays;
Support LPCM/Dolby/DTS 5.1 channel extraction;
Specification:
HDMI resolution: up to 3840*2160/60Hz
Support video format: 8/10/12 bit color depth
Support audio format: LPCM/DTS/Dolby-AC3
Maximum bandwidth transmission: 600MHz
Maximum transmission rate: 3x6Gbps
Input cable length: 4K/30HZ15m AWG26 HDMI standard cable; 4K/60HZ5m standard 2.0 cable
Output cable length: 4K/30HZ15m AWG26 HDMI standard cable; 4K/60HZ5m standard 2.0 cable
HDMI input ports: 6
HDMI output port: 2
Maximum working current: 1A
Power adapter specifications: Input: AC (50HZ, 60HZ)
100V-240V; Output: DC5V/1.5A
Operating temperature range: (-15 to +45)
Operating humidity range: 5 to 90%RH (non-condensing)
Dimensions (length * width * height): 200x70x25 (mm)
Weight: 305g
