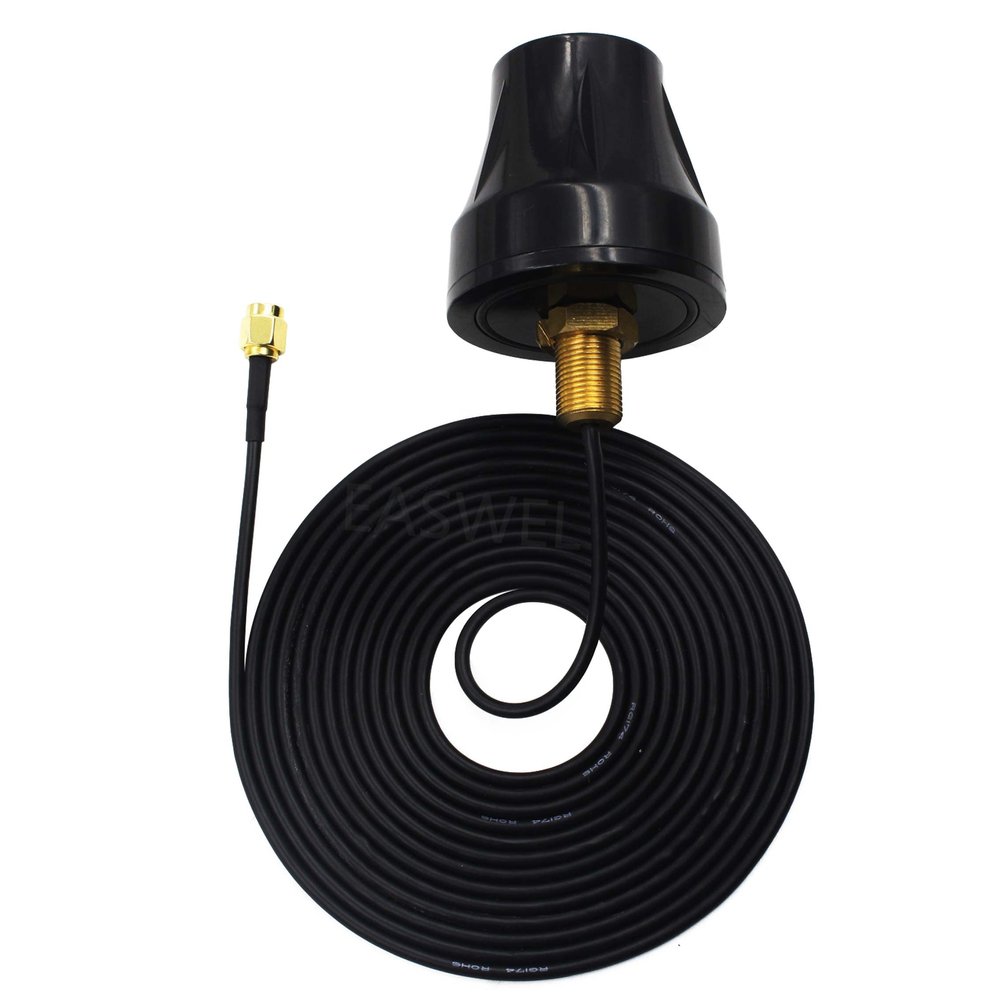

4G Outdoor Cellular Antenna for SPYPOINT Link-EVO Cellular Wildlife Trail Camera

Description

Feature:

Frequency? 700Mhz , 800Mhz , 900Mhz , 1800Mhz , 1900Mhz , 2100Mhz , 2600Mhz
Antenna Connector? RP (Reversed Polarity) SMA
Antenna Type: Hole/Fixed/Wall/Ceiling Mount
4G LTE Antenna Specification:
Frequency Range: 698~960/1710~2690MHz
V.S.W.R: ?2.0
Polarization: Linear
Gain: 2dBi?Zenith?
Impendance: 50?
Feature: Fixed Wall Mount; Thru Hole Mount (Screws Diameter: M12 11.76,,-11.95mm)
Mechanical:
Cable: RG174
Cable Length: 3 Meters
Connector: RP SMA Male Connector
Material: ABS
Mounting Method: Screw Thru Hole of 12mm Diameter
Environmental:
Operating Temperature: -40?~+85?
Relative Humidity: Up to 95%
Ingress Protection: IP67
Vibration: 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly: ROHS Compliant
L Bracket
Hole Diameter: 11.88mm
Material: Stainless steel (Iron)
Net Weight: 26g / 1pcs
Use (as shown in the figure),
