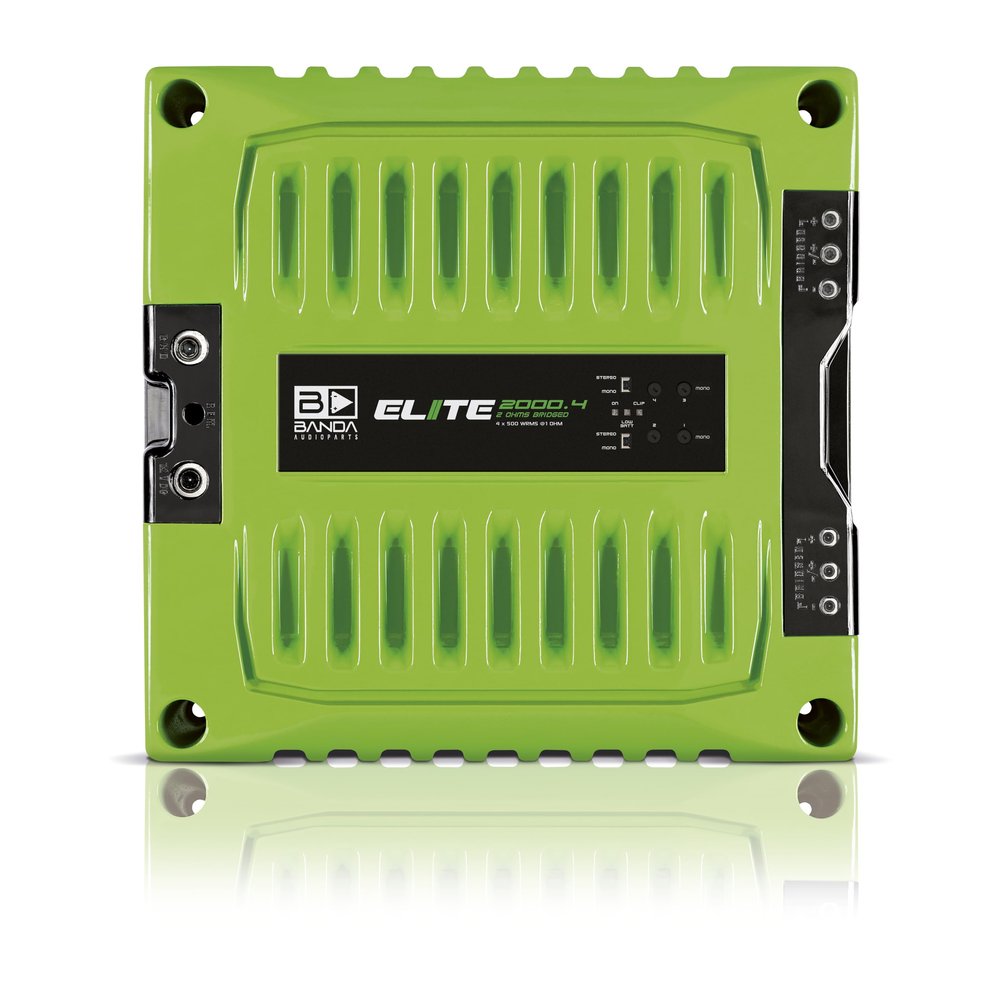

Banda Audioparts 4-Ch. Vehicle Audio Bass Amplifier - 500 Watts High-Powered Mono Bass Amplifier w/Subsonic Filter and Low Pass Filter Stable at 2 ohm, LED Indicators, Sound Specialization

Description

• POWER SUPPLY: Class D amplifier, Total Power 14,4 @ 1 Ohm: 4x600 WRMS, Total Power 14,4 @ 2 Ohms: 4x400 WRMS, Total Power 14,4 2 Ohms Bridged: 2x1250 WRMS, Total Power 12,6 2Ohms Bridged: 2x1000 WRMS, 2 Ohms Efficiency: 80%, 1Ohm Efficiency: 86%
• MONO BASS AMPLIFIER INDICATORS: Blue LED: source and powered amplifier indicator, Red LED: output distortion (clipping), Constant - output short circuit indicator, Yellow LED: low voltage battery, Constant - Fuse blown or missing
• POWER OUTPUT AND IMPEDANCE: Input Voltage: 9 to 15V, Input Impedance: 100K Ohms, THD+Noise: less than 0.1%, Input Sensitivity: 220mV to 4V, Signal to Noise Ratio: 80dB
• SOUND SPECIALIZATION: This high-powered Power Amplifier is cutting edge technology at its finest. RCA connectors ensure a secure connection between amplifier and speakers that allow distortion-free sound
• OTHER TECHNICAL SPECS: Recommended Fuse: 100A, Current @ Rest: 1A, Ave. Sinusoidal Current Draw: 210A, Ave. Music Current Draw: 100A, Recommended Power Wire Gauge : 21mm/4 AWG, Recommended Speaker Wire Gauge: 2x2.5mm/2x13 AWG, Size: 2.2 x 8.4 x 9.7''

* Total Power 14,4 @ 1 Ohm: 4 x 600 WRMS * Total Power 14,4 @ 2 Ohms: 4 x 400 WRMS * Total Power 144 Bridged: 2 x 1250 WRMS 2 ohm * Total Power 126 @ 1 Ohm: 4 x 500 WRMS * Total Power 126 @ 2 Ohms: 4 x 300 WRMS * Total Power 126 Bridged: 2 x 1000 WRMS 2 ohm * Efficiency @ 2 Ohms: 81% * Efficiency @ 1 Ohm: 76% * Input Voltage: 9 - 15V * Input Impedance: 100K Ohms * THD+Noise: 0,10% * Input Sensitivity: 220mV - 4V * SNR: 80dB * Frequency Response: 5Hz to 22kHz (-3dBs) * HPF (High Pass Filter)HPF (High Pass Filter): 20 to 90Hz @ 12dB/octave Linkwitz-Riley * LPF (Low Pass Filter)LPF (Low Pass Filter): 90 to 20kHz @ 12dB/octave Linkwitz-Riley * Recommended Fuse Recommended Fuse: 100 A * Current at Rest Current at Rest: 1A * Average Current Draw (Sinusoidal)Average Current Draw (Sinusoidal): 210 A * Average Current Draw (Music)Average Current Draw (Music): 100 A * Power Wire Gauge (min. Recommended)Power Wire Gauge (min. Recommended): 21mm / 4 AWG * Speaker Wire Gauge (min. Recommended)Speaker Wire Gauge (min. Recommended): 2 x 2.5mm / 2 x 13 AWG * Weight (Lb)Weight (Lb): 3.3 * Height (in)Height (in): 54 * Width (in)Width (in): 209 * Depth (in): 243
