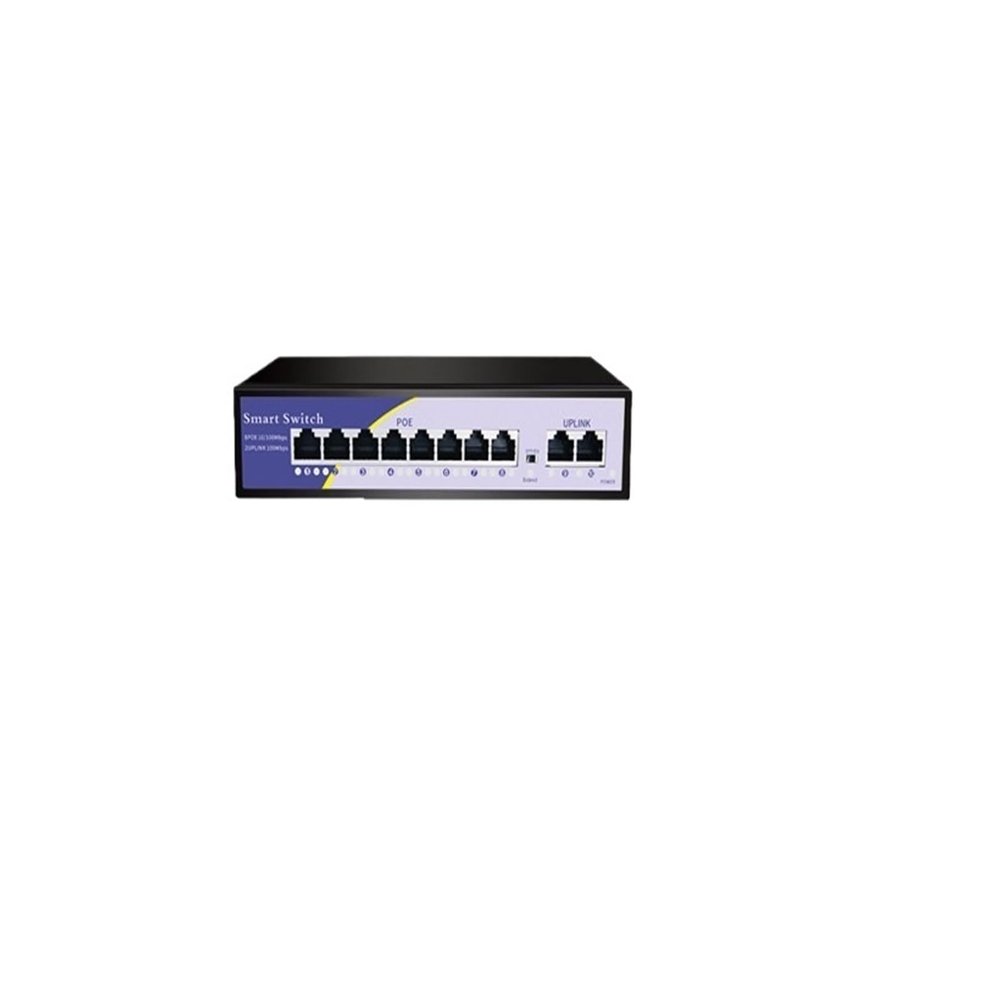

48V POE Network Switch 10/100/1000Mbps Ethernet Switch 4-port/8-port Network Switching hub IEEE 802.3 AF/at Network Camera Switch(Black1010B)

Description

• Hubs

Hubs
PoE output power: 15.4W/30W
Network media: Cat5 (UTP) or above
Network standards: IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x flow control IEEE 802.3af Power over Ethernet
PoE power: 15.4W per port (IEEE802.3af).
Wiring: Data and power provided via pairs 12 and 36 or 45 and 78
Processing type store-and-forward half-duplex backpressure and IEEE 8023x full-duplex flow control
Address database table Size2K address
Buffer memory 48Kb per unit Embedded memory backplane bandwidth: 1.2/2/5.6G
Network delay: 100Mbps to 100Mbps transmission, 64-byte frame in store-and-forward mode is less than 20us
Power supply: input 52V DC input 110V-250V
Installation method: desktop/rack installation
Environmental specifications operating temperature-10-55(32-104)
Storage temperature-40-70(14-158)
Operating humidity 90% maximum relative humidity, no condensation
Storage humidity 95% maximum relative humidity, non-condensing
packing list
POE switch*1
User Guide*1
Warranty card*1
Power cord*1
