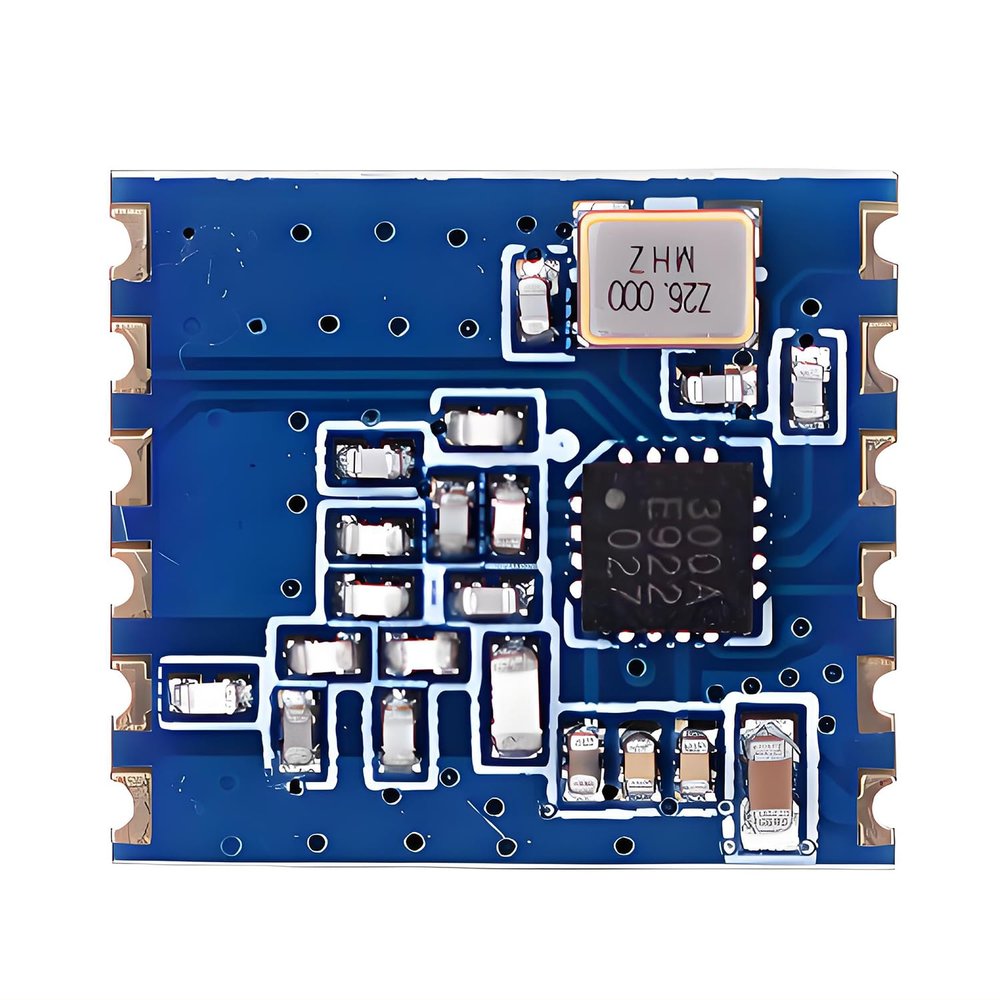

433MHz Low Power Module cmt2300a Transmit Receive Intelligent Communication Module 800m (1)

Description

• Digital Transmission Module: SPI interface low power consumption 800 meters communication distance.
• Special Design: Anti-jamming and high sensitivity bidirectional communication + power-on reset.
• Low Power Module: SPI communication + small size maximum transmit power 20dBm.
• Positioning accuracy: 400m. Speed accuracy: 0.5 to 300 kbps. Antenna type: external antenna. Transmit power: 77 mA. Sensitivity: -121dBm 2.0kbps. Operating Voltage: 1.8 ~3.6 V. Data format: OOK/FSK. Voltage Range: 1.8 to 3.6 V. Sleep Current: 300 nA.
• Application Areas: Industrial monitoring and control ,Automatic Meter Reading, Remote control and Home Security.

433MHz Low Power Module cmt2300a Transmit Receive Intelligent Communication Module 800m

Digital Transmission Module
SPI interface low power consumption 800 meters communication distance.
Anti-jamming and high sensitivity bidirectional communication + power-on reset.
SPI communication + small size maximum transmit power 20dBm.

Product detail:
Model: HC-300S
Positioning accuracy: 400m
Speed accuracy: 0.5 to 300 kbps
Antenna type: external antenna
Transmit power: 77 mA.
Communication interface: SPI
Sensitivity: -121dBm 2.0kbps
Application areas: industrial monitoring and control / remote control and security
Operating Voltage: 1.8 ~3.6 V
Data format: OOK/FSK
Overall Dimension: 14*12.5mm
Product Series: 433 Series
Frequency Band: 433MHz
Voltage Range: 1.8 to 3.6 V
Sleep Current: 300 nA
