EBYTE

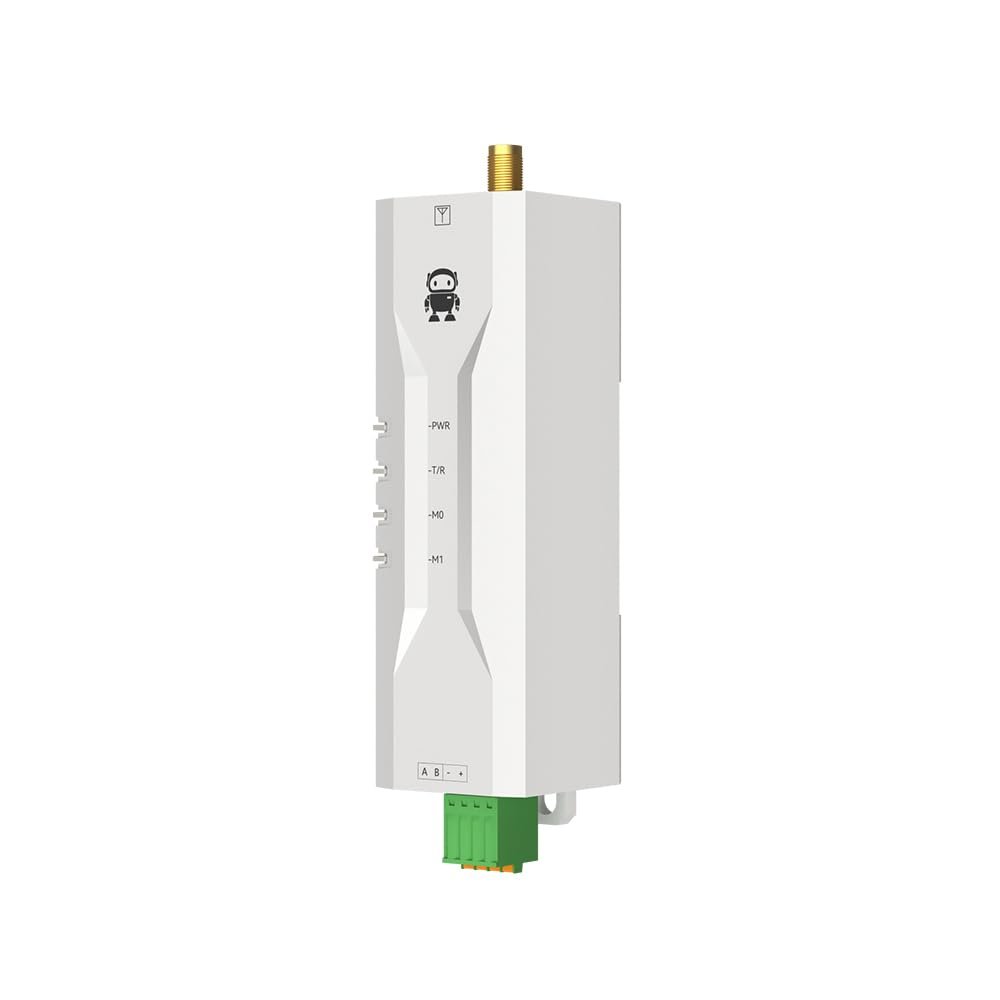

433 868 915M ChirpIoT Data Transmission Mini Wireless Modem EWD95M-X00GL Series Long Distance Automatic Relay Network DC 5-28V (400M 30dbm RS485)
£54.78
£91.30
Save 40% (£36.52)
-
Order within 17 hours and 31 minutes to get between May 21 - May 27 -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description
- Support AT commands, which makes it more convenient to use; The modulation method based on ChirpIoT brings a longer communication distance and stronger anti-interference ability . Under ideal conditions, the communication distance can reach 5km;Supports automatic relay networking, multi-level relay is suitable for ultra-long-distance communication, and multiple networks can run simultaneously in the same area;
- Supports users to set communication keys by themselves, which cannot be read, greatly improving the confidentiality of user data; Support RSSI signal strength indication function, which is used to evaluate signal quality, improve communication network, and measure distance; Support wireless parameter configuration, remotely configure or read parameters by sending command data packets wirelessly;
- Support single-point air wake-up, i.e. ultra-low power consumption function; Supports fixed-point transmission, broadcast transmission, and channel monitoring; Supports the global license-free ISM 433MHz frequency band and the 470MHz frequency band; Supports data transmission rates of 2.4k to 62.5kbps; Support IAP upgrade, which makes firmware update more convenient;
- Airspeed adaptation, if certain conditions are met, any airspeed gear can be configured and can communicate with each other; Working temperature range: -40 +85, adaptable to various harsh working environments, a true industrial-grade product;Support Modbus protocol transmission; Ultra-small size, 80*28*28.5mm, easy and quick to install;Adopt flame-retardant plastic shell and guide rail installation structure, which is convenient and efficient to install;
- Simple and efficient power supply design, supports power adapter or wire pressing, supports 5~28V (DC) power supply; Multiple protection functions such as power reverse connection protection, over connection protection, antenna surge protection, etc. greatly increase the reliability of the radio; The communication port and power interface adopt isolation and high protection;
- Powerful software functions, all parameters can be set by programming: such as power, frequency, air rate, address ID, etc.; Built-in watchdog and precise time layout. Once an abnormality occurs, the radio will automatically restart and continue to work according to the previous parameter settings. Use hidden buttons to switch working modes to avoid false triggering, making the equipment more reliable.
