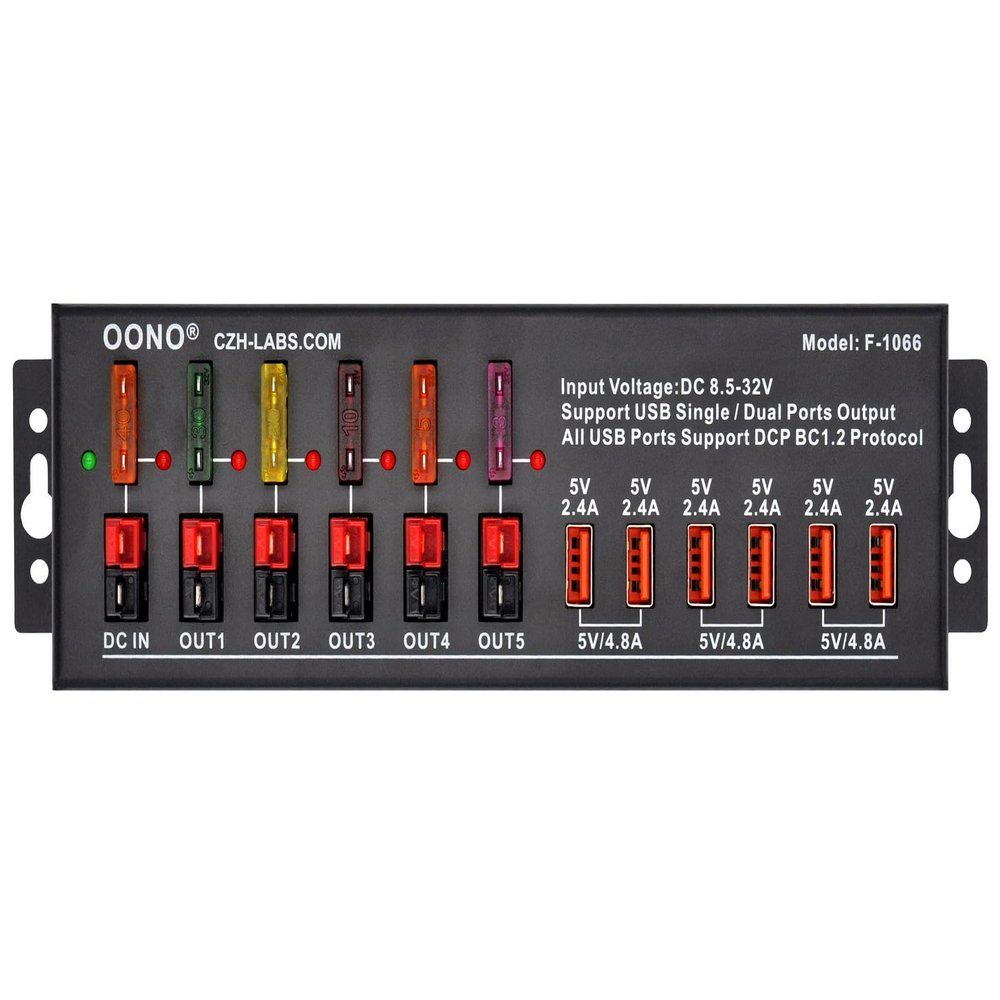

40Amp DC Power Splitter Distribution Module, 5 Power Pole Ports and 6 USB Ports Output

OONO

40Amp DC Power Splitter Distribution Module, 5 Power Pole Ports and 6 USB Ports Output

£173.67 £289.45
Save 40% (£115.78)
Buying Bulk?
  • Order within 19 hours and 47 minutes to get between May 21 - May 27
  • Tracked Shipping on All Orders
  • 14-Day Returns
  • Secure Payments
  • 24/7 Customer Support
Buying Bulk?

Description

  • Input: Operating voltage 8.5 to 32VDC. Maximum input current 40 Amp, fuse 40 Amp. No-load quiescent current: less than 8mA(at 13.8V).
  • Power pole output ports: 5 output ports, 1*30Amp 1*20Amp 1*10Amp 1*5Amp 1*3Amp, you can replace these fuses, but the maximum output current of each port is 30Amp, total maximum output current 40Amp.
  • USB output ports: 6 USB output ports, output voltage 5VDC, output maximum current 2.4Amp for each port. Support dual ports parallel output 4.8Amp. Support USB DCP BC1.2 protocol, support Apple and Samsung protocol. The conversion efficiency of the internal circuit is greater than 90%.
  • With power indicator LED, with fault indicator LED for each fuse. High-quality fuse holders, you can very easy to replace fuse from the outside, ATC/ATO auto fuses are easy to get and are available in 10 values from 1 to 40 Amp.
  • Enclosure: High quality aluminum enclosure, thickness 1.5mm / 0.06". Support screw mount, wall mount, of course can also be placed on the desktop. If you purchase together our CASE-015 DIN adapter bracket, it can also be support 35mm, 32mm or 15mm DIN rail mounting.
