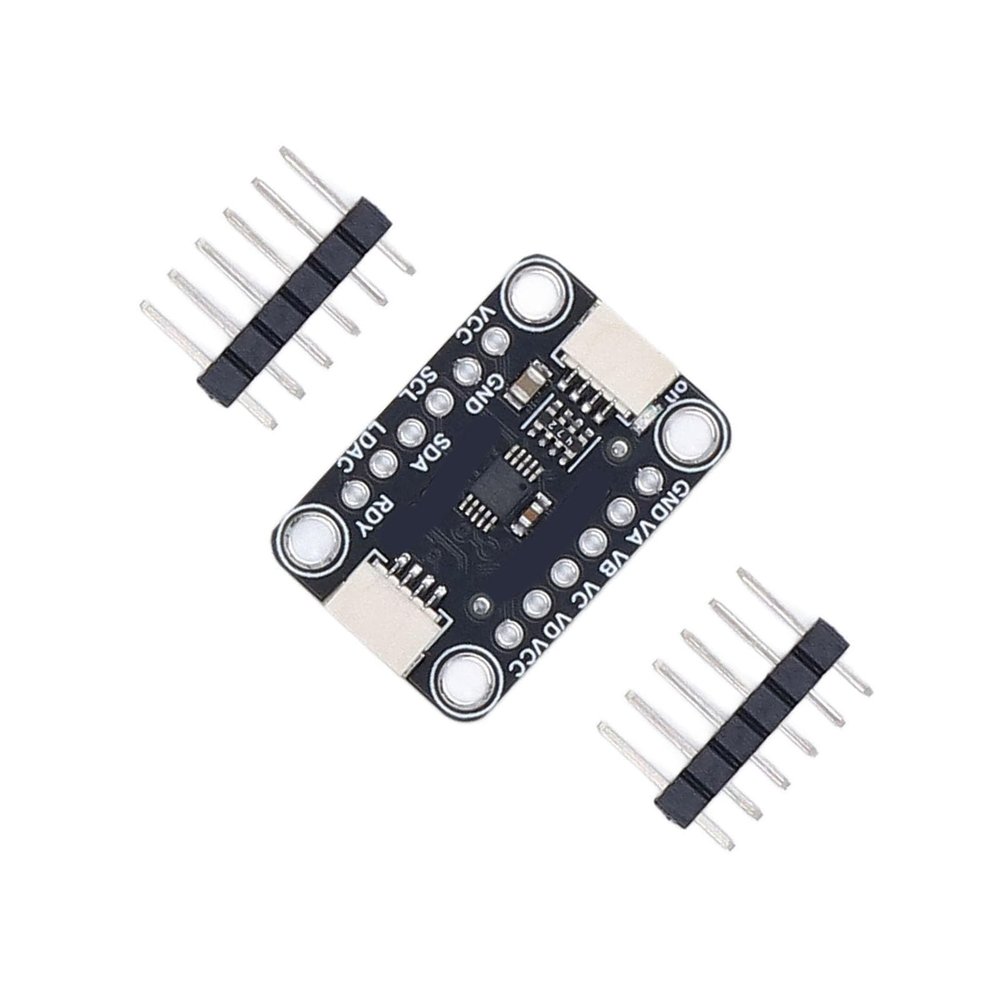

4 Way Digital to Analog Converter Module, with onboard EEPROM for Stemma QT Qwiic, 12 Bit Quad DAC Board MCP4728, 2.048V Vref, 0V to 4.096V, 6us Fast Stabilization TimeIndustrial Electrical

FTVOGUE

4 Way Digital to Analog Converter Module, with onboard EEPROM for Stemma QT Qwiic, 12 Bit Quad DAC Board MCP4728, 2.048V Vref, 0V to 4.096V, 6us Fast Stabilization TimeIndustrial Electrical

£43.38 £72.30
Save 40% (£28.92)
Buying Bulk?
  • Order within 15 hours and 17 minutes to get between May 21 - May 27
  • Tracked Shipping on All Orders
  • 14-Day Returns
  • Secure Payments
  • 24/7 Customer Support
Buying Bulk?

Description

  • 12 BIT: The MCP4728 has four 12 bit Dacs in a small package to meet any of your voltage setup needs. In addition, the DAC Settings can be stored in the internal EEPROM. Once saved to internal non volatile memory, the Settings will load by default when the DAC is powered on, all via I2C
  • WITH MEMORY: 4 Way digital to analog converter module with on board non volatile memory(EEPROM) for DAC code and I2CTM address bits, very convenient
  • FLEXIBLE AND ADJUSTABLE: By default, you will use the input voltage as the Vref, allowing you to adjust the voltage depending on the input voltage in the range of 0V3.3V or 5V. Alternatively, use 2.048V Vref for about 3.3V usage and 4.096Vref for about 5V usage
  • OPERATING VOLTAGE: Going one step further, the MCP4728 allow you to choose between two reference voltage sources: the input voltage used to power on the VCC pin, or the internal 2.048V reference voltage. If you use an internal reference voltage (Vref in DAC), you can choose 1X or 2X output gain, resulting in a voltage range of 0V to 2.048 or 0V to 4.096V depending on your application requirements
  • After-sales: If you have any questions after purchase, please us in time, we will answer your questions seriously and provide high-quality after-sales service.
