4 Port USB HUB HAT Compatible with Raspberry Pi USB to UART Onboard for Zero/Zero 2W / Zero W/Zero WH Easy Serial Communication

Description

• This is a 4 port USB hub for RPi, provides more USB capability to your Pi, what's more, it features USB to UART converter for easy serial communication.
• It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero 2W / Zero W / Zero WH.
• Onboard USB to UART, with enable / disable switch, convenient for RPi serial debugging and avoiding conflict
• Onboard multi indicators, for monitoring the status of power, USB to UART, and each USB port
• Operating voltage: 5V;Dimension: 65mm 30mm;Mounting hole size: 3.0mm

Overview
This is a 4 port USB hub for RPi, provides more USB capability to your Pi, what's more, it features USB to UART converter for easy serial communication.
It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero 2W / Zero W / Zero WH.

USB HUB HAT Features
4 USB Ports, compatible with USB2.0/1.1
Onboard USB to UART, with enable / disable switch, convenient for RPi serial debugging and avoiding conflict
Onboard multi indicators, for monitoring the status of power, USB to UART, and each USB port

Specifications
Operating voltage: 5V
Dimension: 65mm 30mm
Mounting hole size: 3.0mm

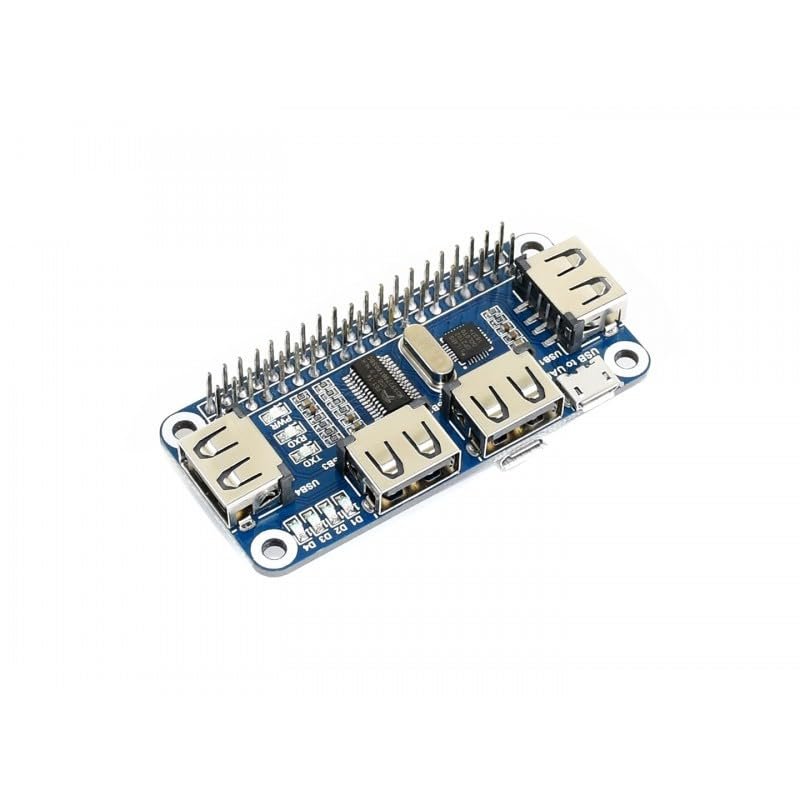

What's on the USB HUB HAT
RPi GPIO interface: for connecting RPi
USB to UART: for controlling the RPi via serial terminal
USB extended ports: USB1~USB4
USB port indicators: dedicated indicator for each USB port, D1~D4 for USB1~USB4 respectively
Power indicator
USB to UART indicator
FE1.1S: USB HUB chip
12MHz crystal
CP2102: USB to UART converter
