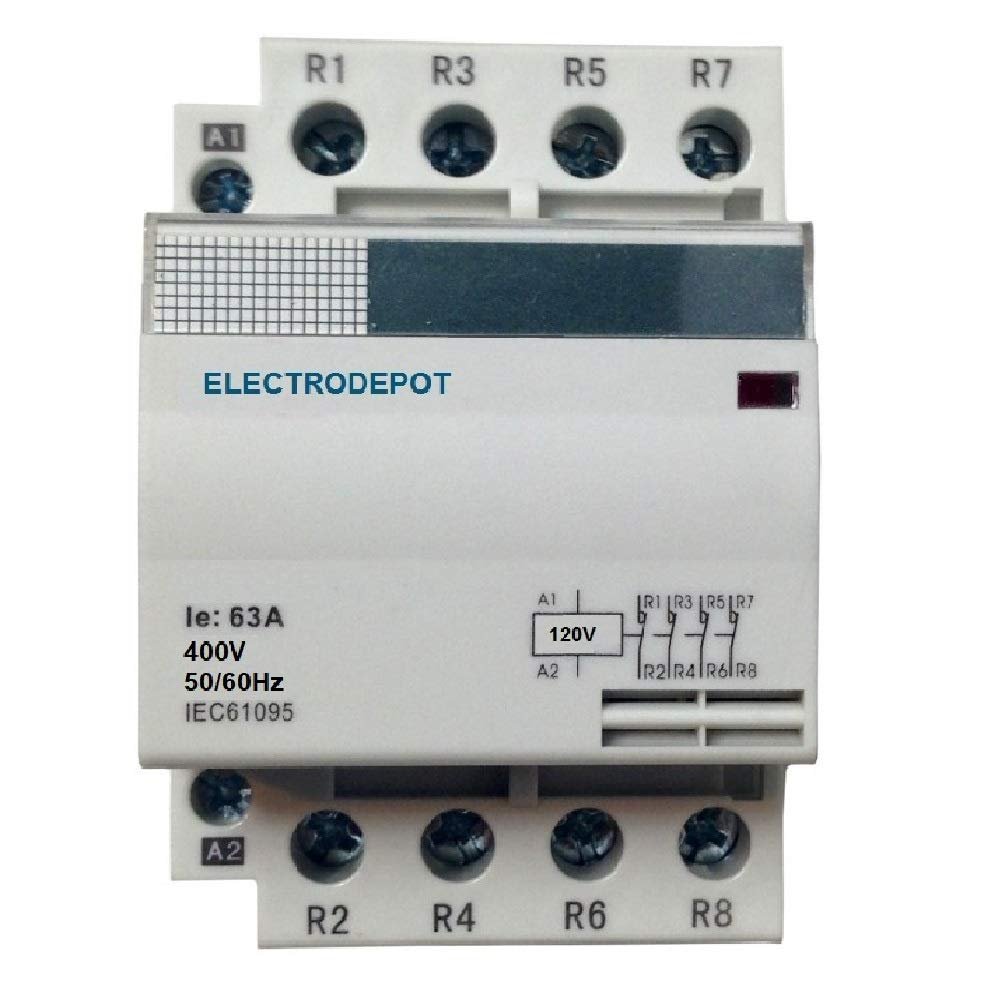

4 Pole Lighting Contactor 120V, 60 Amp 4 Pole N/C Normally Closed 120VAC Coil, 40Amp Ac-3 Silent Operation

Description

• N/C 60A, 32A, Heating & Lighting
• Designer 4 Pole Normally Open, Low energy drain
• Optional DIN Rail search in Amazom dinmigro
• Modular contruction IEC, Size: 2.2 x 3.3 x 2.5 inches
• Coil Voltage 110 120VAC : 50VA inrush, 6VA sealed

60 Amp 4 Pole 400 VAC Contactors - NC Normally Closed Contacts Energy saving low power drain save 120kwh/year. . Electrically held lighting contactor. FEATURES: DIN rail mounting 60 A. Incandescent or resistive load, -- 30 A. Ballast and General purpose Power ON indicator Coil: 30VA inrush, 4VA sealed Normally open (N.O.) contacts IEC AC Rate: AC-1; 16 kW, AC-3; 11 kW @400V Operating Temperature -30...+70 C (-22...+158 F) Solid Conductor: 25 mm2 Max torque 0.6 Nm Stranding Conductor: 16 mm2, Max torque 0.6 Nm Electric strength: 4 kV Max switching capacity 600 switch/hr No humming coil, low noise CE approved 61095, Weight: 0.88 lb (0.42 kg)
