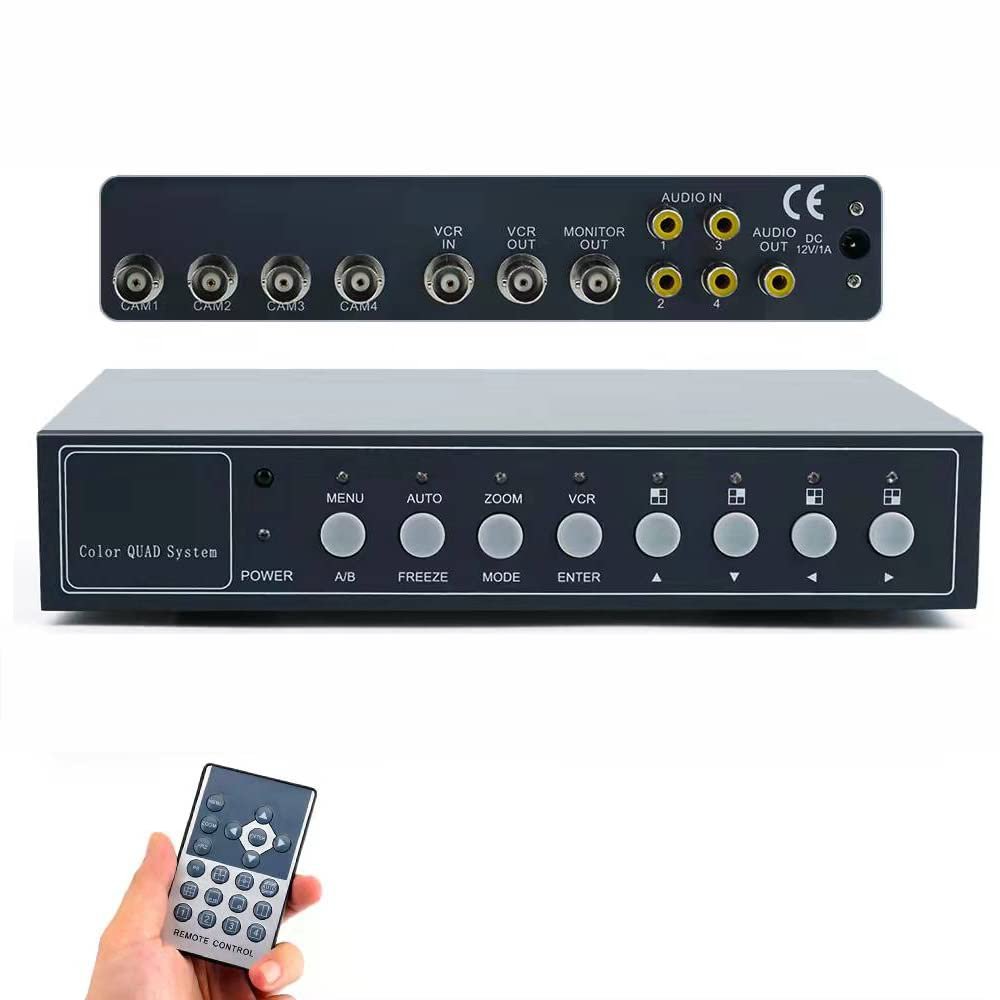

4 Channels Video Quad Video Image Multiplexer Processor for CCTV Surveillance Cameras, with Functions of Digital Zoom, Video Freezing, Video Loss Alarm, Motion Detection, Support Audio in/Out

Description

• -Support 4 channels realtime video display with multiple display modes.
• -Support digital zoom in/out.
• -Support auto sequential switching. Support 4 channels audio input and 1 channel audio output.
• -Support multiple video channels freezing at the same time.
• -Support motion detection alarm, video loss alarm. Note: this video quad supports ana-log cctv security cameras ONLY, doesn't support AHD or IP cameras.

Key Features:

-Support 4 channels real-time video display, each channel can be renamed.

-Support 4 channels audio input, 1 channel audio output and 2 channels video output.

-Support auto sequential switching.

-Support 1, 2, 3, 4 channels or PIP (Picture-in-Picture) multiple video display modes.

-Each PIP position is adjustable.

-Support digital zoom in/out, zooming area is selectable.

-Support multiple video channels freezing at the same time.

-Support motion detection alarm, detective area and alarm duration are adjustable.

-Support video loss detection and alarm.

-Support IR Remote Control.

Parameters:

Video System: NTSC/PAL

Video Resolution: PAL: 720576; NTSC: 720480

Video Frame Rate: PAL: 100fps, NTSC:120fps

Video Input : 4xBNC 1Vp-p,75

Video Output: 1 channel main monitor output, 1Vp-p,75, 1 channel slave monitor output, 1Vp-p,75

Audio Input: 4xRCA

Audio Output: 1xRCA

Auto Switch Intervals: 0~99 seconds selectable

Event Record: 60 groups in max

Alarm Output: None

OSD Language: English

Customized Menu: Brightness ,Contrast, Saturation, Hue, Sharpness can be adjustable

Power Consumption: 4.5W (350mA)

Power Supply: DC 12V, 1A

Operation Temperature: -10~ +60

Product Weight: 1kg

Product Size: 210mm130mm40mm

Note: this video quad supports ana-log cctv security cameras ONLY, doesn't support AHD or IP cameras.
