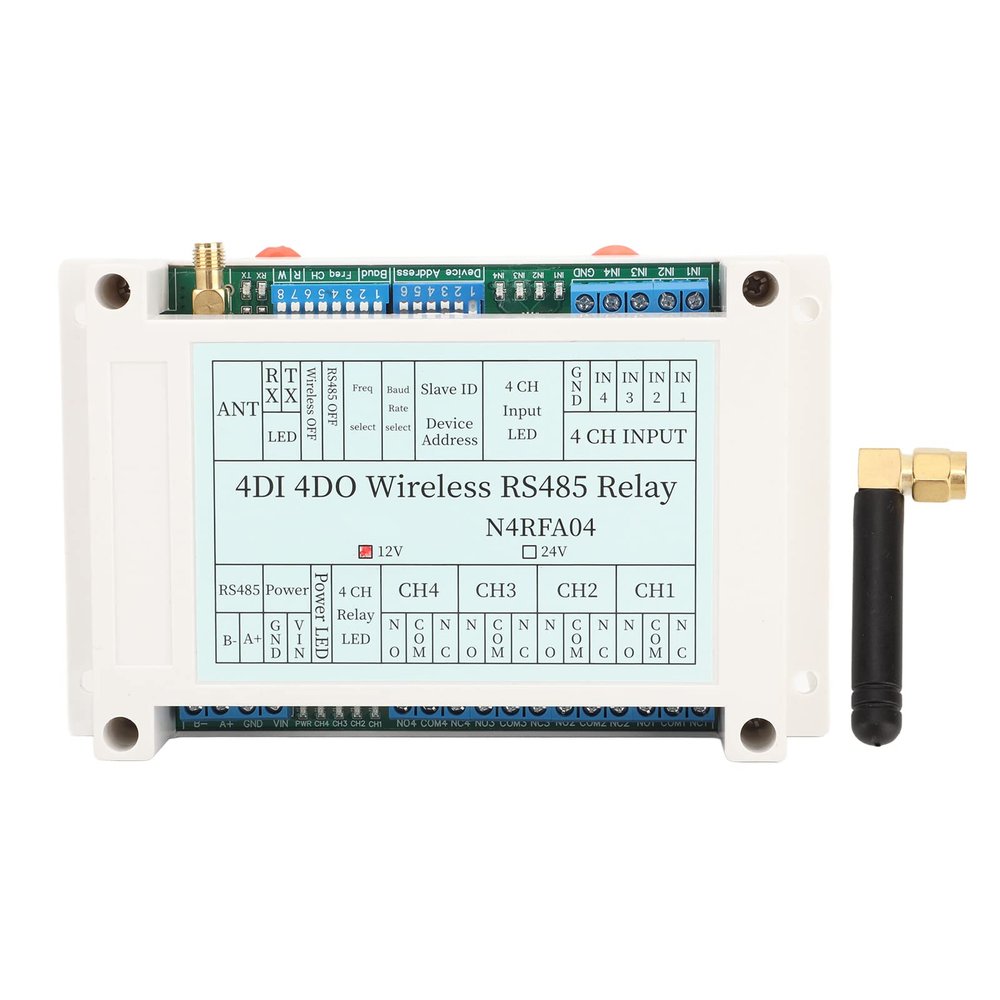

4 Channel Wireless Relay Module Wireless Control for Smart Home Security Monitoring with Antenna (12V)

Description

• [WIRELESS CONTROL] The wireless relay module enables easy remote reading and control of relay status through RS485 or 433M wireless, as well as input status feedback.
• [MATCHING DEVICES] Compatible with RT5BF01 wireless transmission modules and N4RFA04 devices for seamless wireless remote IO functionality.
• [PARAMETER SETTING] Conveniently adjust 5 critical parameters through the dial switch, including device address, RS485 and wireless switches, baud rate, and channel settings.
• [EXTENDED REACH] Operates within the 426-508.5MHz wireless frequency range, capable of transmitting signals up to 1000 meters in optimal conditions for expanded coverage.
• [VERSATILE APPLICATIONS] Ideal for PLC IO expansion boards, smart home systems, security surveillance, access control, network cameras, LED light drivers, and more.

[WIRELESS CONTROL] The wireless relay module enables easy remote reading and control of relay status through RS485 or 433M wireless, as well as input status feedback.
[MATCHING DEVICES] Compatible with RT5BF01 wireless transmission modules and N4RFA04 devices for seamless wireless remote IO functionality.
[PARAMETER SETTING] Conveniently adjust 5 critical parameters through the dial switch, including device address, RS485 and wireless switches, baud rate, and channel settings.
[EXTENDED REACH] Operates within the 426-508.5MHz wireless frequency range, capable of transmitting signals up to 1000 meters in optimal conditions for expanded coverage.
[VERSATILE APPLICATIONS] Ideal for PLC IO expansion boards, smart home systems, security surveillance, access control, network cameras, LED light drivers, and more.

Spec:
Item Type: Wireless Relay Module
Standby Current: Default 20mA, turn off wireless transceiver function 12mA
Baud Rate: 9600 19200 38400 115200, default 9600, N, 8, 1
Wireless Working Frequency: 426MHz-508.5MHz, 16 channels, channel interval 5.5MHz, default 426MHz
Transmission Power: 20dBm
Receiving Sensitivity: -113dBm
Wireless Transmission Distance: 800-1000 meters (Unobstructed open space)
Product Size: Approx. 144 x 92 x 40.5mm / 5.7 x 3.6 x 1.6in

Package List
1 x Relay Module1 x Antenna

Note
In addition to the conventional RS485 control, users can also use N4RFA04 with RT5BF01 wireless transmission module for data transmission without laying too many and too long signal transmission lines. The N4RFA04 module only needs to be powered on to realize remote control. It is very convenient for users to remotely operate N4RFA04 equipment, effectively avoid , broken line, poor , etc. of the signal line, and also very convenient for users to operate N4RFA04 from a remote place.
