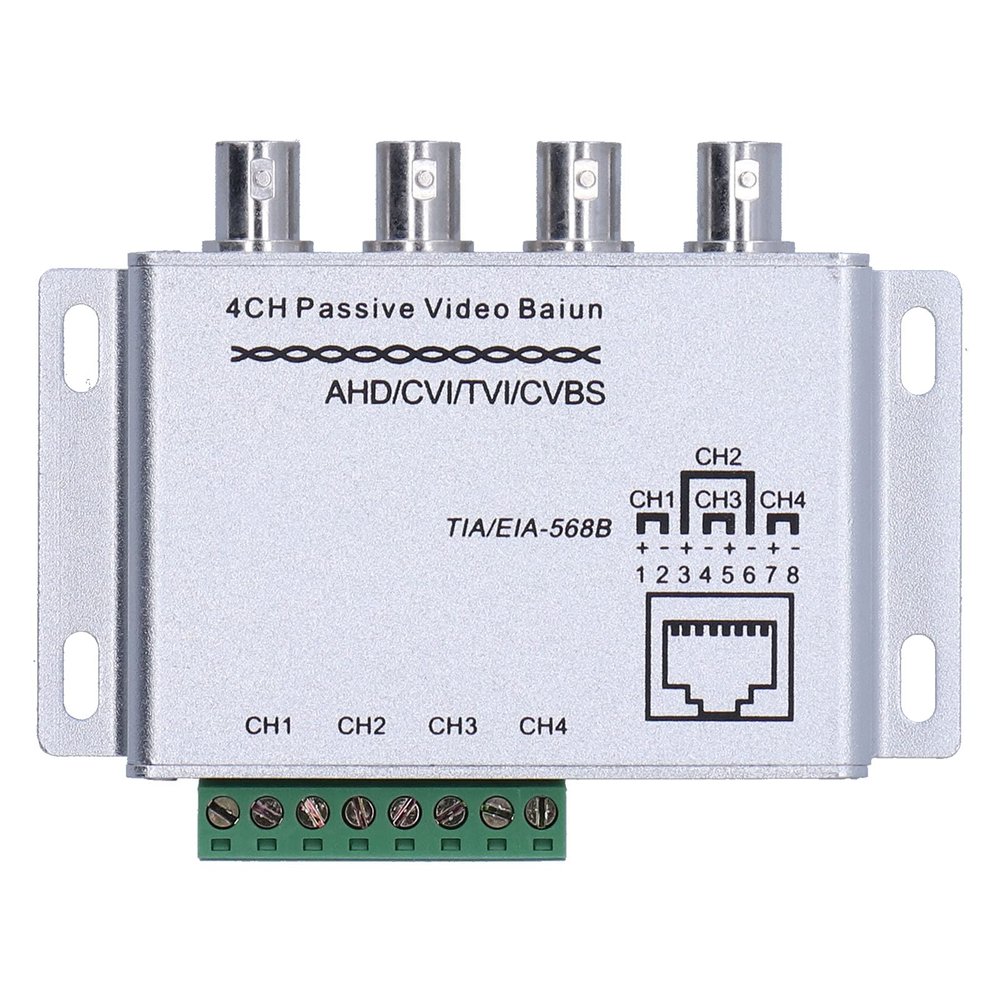

4 Channel Passive Balun, 1080P Video Balun 4CH HD for Home for UTP Converter for Passive Video Twisted Pair Transceiver for Industry

Description

• Video BalunHD Video balun converts the video signal into a balanced signal, and transmits it on an ordinary Cat-5 unshielded twisted pair cable at a perfect transmission rate.
• Compatible withPassive video twisted pair transceiver compatible with all HDCVI, HDTVI, HDAHD, supports NTSC, PAL and SECAM video formats; and has a long transmission distance, which can greatly simplify wiring engineering and save wire usage.
• High EfficiencyThis HD video balun allows 8-pin Cat-5 twisted pair to display video images simultaneously, which can be widely used in video surveillance and video conferencing, transmitting four channels of video signals.
• Anti-interferenceTVS of passive video twisted pair transceiver can protect up to 4000V surge voltage with up to 60dB of anti-interference make this HD video balun become easy and effective to use.
• Transmission DistanceHD video balun transceiver for 720P CVI cameras, the maximum length is about 450m; for 1080P CVI cameras, 720P/1080P TVI cameras and 1080P AHD cameras, the maximum length is about 250m; for 720P AHD cameras, the maximum length is about 320m.

Feature:
1. HD Video balun converts the video signal into a balanced signal, and transmits it on an ordinary Cat-5 unshielded twisted pair cable at a perfect transmission rate.
2. Allows your 8 pins Cat5 twisted pair cable display video images at the same time, which can be used in video surveillance and video conferences, and can transmit video signals of four channels.
3. Compatible with all HDCVI, HDTVI, HDAHD, supports NTSC, PAL and SECAM video formats; and has a long transmission distance, which can greatly simplify wiring engineering and save wire usage.
4. For 720P CVI cameras, the maximum length is about 450m; for 1080P CVI cameras, 720P/1080P TVI cameras and 1080P AHD cameras, the maximum length is about 250m; for 720P AHD cameras, the maximum length is about 320m.
5. Excellent anti-interference ability, 60dB anti-interference and anti-noise ability; built-in TVS, can protect up to 4000V surge voltage; no power supply, more convenient to use.

Spec:
Item Type: Video Balun
Material: Metal
Video Format: NTSC / for Saikai PAL
Maximum Input: 1Vp-p
Frequency Response: DC to 60MHz
CMMR: 60dB, (20K-60M) Hz
Wire Type: UTP (22-24) AWG
Wire Category: CAT5e CAT6
ESD: 8KV
Impedance: BNC: 75ohms, RJ45: 100ohms
Working Temperature: -10-60
Storage Temperature: -30-70
Humidity Range: 0-95%

Transmission Distance:

For 720P CVI camera, the longest may up to 450meters / 492yd
For 1080P CVI camera, the longest may up to 250meters / 273.4yd
For 720P/1080P TVI camera, the longest may up to 250meters / 273.4yd
For 720P AHD cameras, the longest may up to 320meters / 350yd
For 1080P AHD cameras, the longest may up to 250meters / 273.4yd

Package List: 1 x Video Balun
1 x Manual
