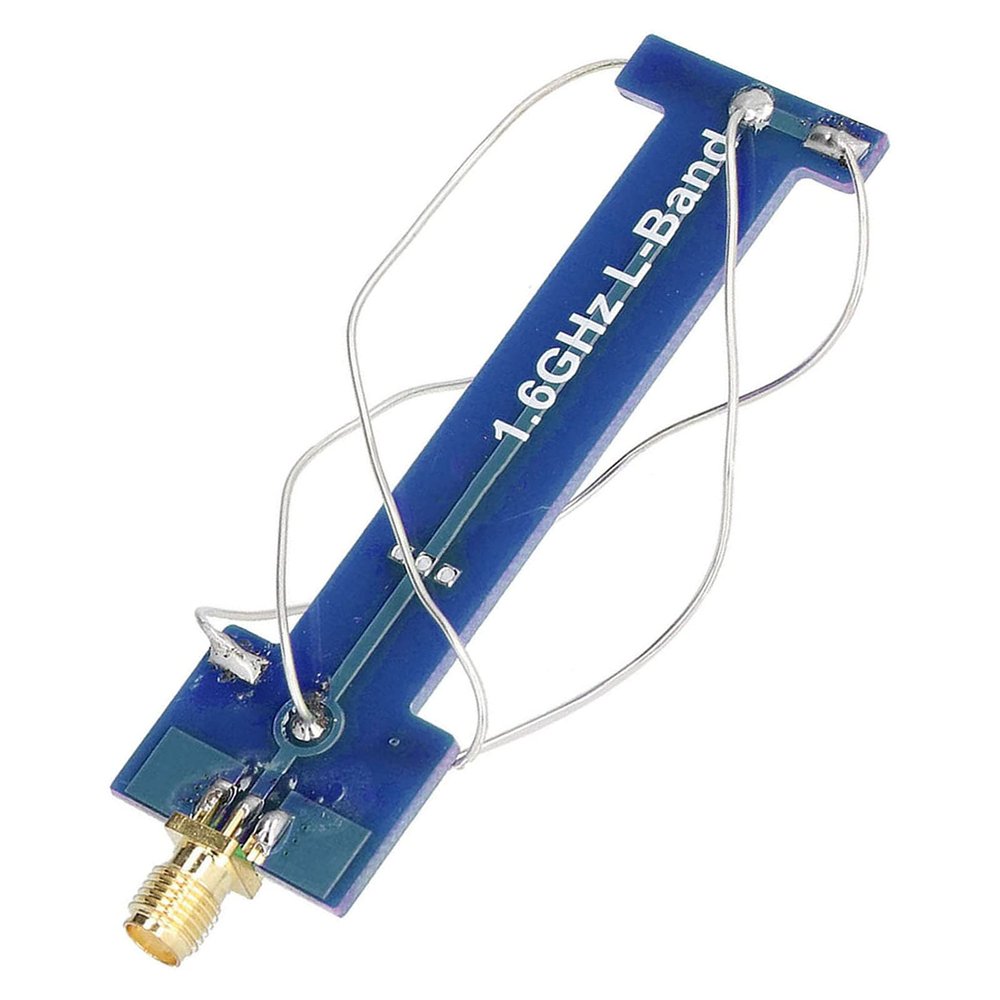

4 Arm Helical Antenna 1.4-1.68GHz SMA Connector PCB Wide Range Electronic Component, Excellent Positioning Performance, for Aircraft, Outdoors, Lab (Blue)

Description

• PCB adopts 1.6mm thick double-sided board, 2.0 oz copper thickness, and full tinning process to ensure good passing performance of large and small currents
• Fourarm helical antenna has a wide range of applications, including aerospace, meteorology, positioning, relay and many other fields
• The current amplitudes of the feed ends of the four spiral arms are equal, and the phases are different by 90 in turn
• With cardioid pattern, good front-to-back ratio and excellent wide-beam circular polarization characteristics
• 1.6G four-arm helical antenna is very suitable for use as a receiving antenna for satellite positioning systems

1. PCB adopts 1.6mm thick double-sided board, 2.0 oz copper thickness, and full tinning process to ensure good passing performance of large and small currents
2. Fourarm helical antenna has a wide range of applications, including aerospace, meteorology, positioning, relay and many other fields
3. The current amplitudes of the feed ends of the four spiral arms are equal, and the phases are different by 90 in turn
4. With cardioid pattern, good front-to-back ratio and excellent wide-beam circular polarization characteristics
5. 1.6G four-arm helical antenna is very suitable for use as a receiving antenna for satellite positioning systems

Specification:
Item Type: FourArm Helical Antenna
Material: PCB
Purpose: Used in fields such as sky, weather, positioning, relay antenna, etc.
Antenna Impedance: 50
Working Frequency Band: 1.4 ~ 1.68GHz
Antenna Connector: SMA (male)

Package List:
1 x Four-Arm Helical Antenna

Notice:
Do not use it outside the frequency and impedance range.
