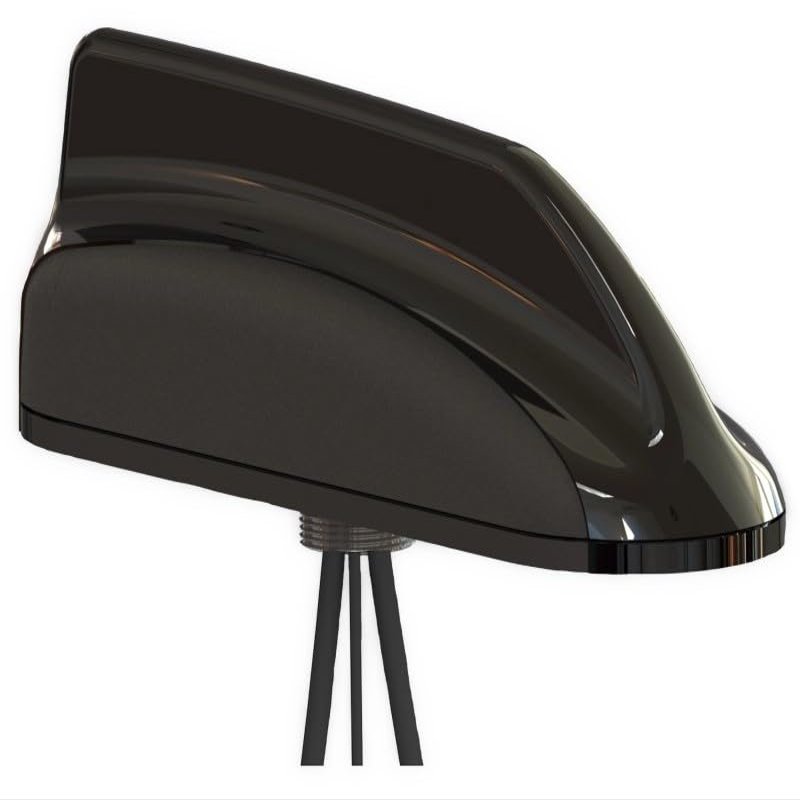

3-in-1 MaxFin Multi-Band MXFG308 2X Global 5G LTE, GNSS Antenna - Thread Mount - 15ft by MobileMark

Description

• MaxFin Series (3 cables) - 2x Global LTE 617-960/1710-6000 MHz, 15ft LL-195 SMA- plug, GLONASS/GPS 15ft RG-174 SMA-plug
• Frequency & Gain: Cables 1 - 2 LTE/5G 617-700 MHz, 1 dBi LTE 700-960 MHz, 3 dBi LTE 1700-2700 MHz, 4 dBi LTE 3400-4200 MHz, 6 dBi LTE 4900-6000 MHz, 6 dBi
• Frequency & Gain; Cable 3 GNSS 1561, 1575, & 1602 MHz, LNA 26 dB, 5 dBi
• Mounting: Thru Hole, Ground Plane Dependant
• Shock & Vibration: IEEE1478, EN 61373, MIL-810G, TIA 329.2-C
• Water Ingress: IP67

The 3-cable MXFG308 MaxFin (2x Global 5G LTE, GNSS) antenna include two Global 5G LTE antennas and one GNSS antenna. This provides MIMO (multiple-input-multiple-output) coverage for 5G Cellular. In addition, GNSS operates on GPS, Galileo, Glonass, QZSS or Beidou at 1561, 1575, & 1602 MHz.
The Global LTE 5G-ready antenna element covers: 617-960 & 1710-6000 MHz. Furthermore, it covers all Cellular bands, worldwide. In the US, this includes the new CBRS (Citizens Broadband Radio Service) at 3.55-3.7 GHz and Band 71 at 617-698 MHz.
The antenna elements all fit in this slim tapered radome that measures only 7 1/2 long x 2.25 wide by 2.5 tall (19 cm x 5.7 cm x 6.4 cm). The antenna housing contains a stylish combination of matte & polished finish, providing a sleek, high-tech look on the vehicle.
Mobile Mark Part # MXFG308-3C3C2C-BLK-180
