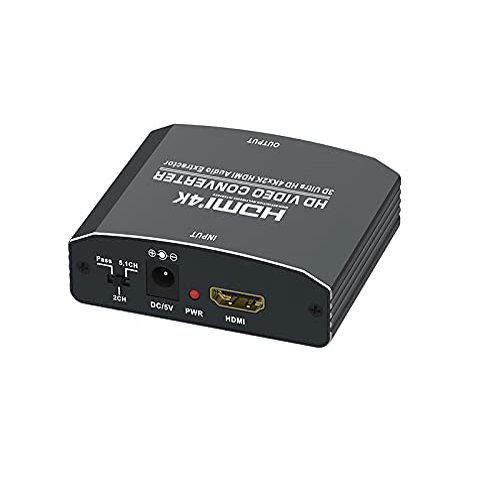

3D Ultra Hd 4kx2k Hdmi Audio Extractor, Separate Hdmi to Hdmi & 3.5 Stereo/spdif/coaxial Audio, Supports 1080i/p & Video Color Up to 36bit Deep Color

Description

• 1*FunctionThe Spliter (3D Ultra HD 4Kx2K HDMI Audio Extractor) allows the HD device Source to connect those single HD Display and extra one 3.5 Stereo & SPDIF/Coaxial audio with output port. It can resolute problem from noise, space and security concerns. So you can enjoy and hear HIFI stereo or headphone at synchronization
• 2*Plug and Playthe HDMI Separator can realize plug and play after installed drivers in minutes, it is easy to set up, and supports HDCP protocol & HDMI 1.4b and convert to one HDMI+ Audio SPDIF+ 3.5(Stereo)+Coaxial) output
• 3*Wide Compatibilitythe HDMI adapter convert HDM signal output to HDMI output, and 3.5 Stereo & Coaxial output. Supports resolution (480i/p,576i/p,720p,1080i/p,4Kx2K@30Hz), video color format(24bit/30bit/36bit deep color). Share music and movies on the HD TV. Increasing signal processing provides a high-resolution, flicker-free and distortion-free image quality
• 4*Widely Useit is widely applied to HDTV display sources comes from remote distance in Factory, School, Media, home and enjoy HD image result and HIFI stereo
• 5*WarrantyWe provide 12 months warranty and Service after sales. The HDMI Converter is durable aluminum build makes for more stable safety

Brand: Sheng Jie
Model: T-621A
Type: Switch/Distributor/Extractor, Support system: all, Resolution: 4K@30hz, Support: Cable length: 15 (meters),
Purpose: HDMI audio separator
1.0 INTRODUCTION
The converter allows the HD device Source to connect those single HD Display and extra one 3.5 Stereo & SPDIF/Coaxial audio with output port. It can resolute problem from noise, space and security concerns, and was applied to difference various workplaces.

2.0 FEATURES
1.Plug and play, Installs in minutes; 2.Support HDCP protocol & HDMI 1.4b;
3.One HDMI input converted to one HDMI+ Audio (SPDIF+3.5(Stereo)+Coaxial) output;
4.Input/Output Resolution: up to 4Kx2K(25/30Hz);
5.Achieve the synchronization between one HDMI and another audio signal separation;
6.Support 2.0CH/5.1CH/by pass audio mode options;

3.0 OTHERS SPECIFICATIONS:
Max bandwidth: 340MHz, Max baud rate: 10.2Gbps; Input/Output TMDS signal: 0.5~1.5Volts p-p(TTL) ;
Input/Output DDC signal: 5Volts p-p (TTL); Input cable distance: 15m 26AWG
Output cable distance : 20m 24AWG HDMI standard cable; Max working current: 500mA
Power adapter: Input: AC(50/60HZ) 100V-240V; Output: DC5V/1A; Operating Temperature range: (-15 to +55)
Operating Humidity range: 5 to 90%RH (No no Condensation)
