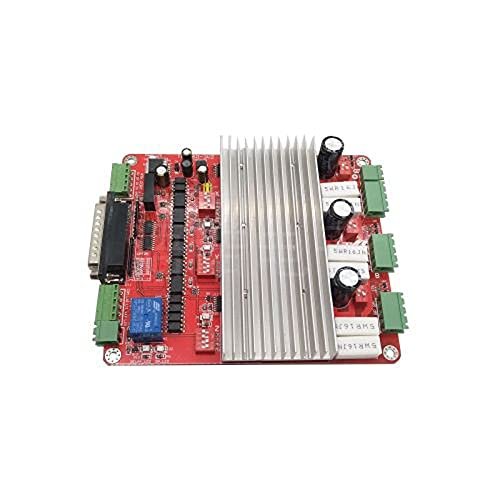

3 Axis TB6560 Stepper Motor Controller Board 3.5A DB25 port for CNC Router

Description

• 1. Maximum phase current output of 3.5A, the average output of 2.5A.
• 2. with spindle control relay, , etc. easy to use software to control the start and stop of the spindle.
• 3. high speed optocoupler DC / DC fully isolated from the true sense of protecting your computer.
• 4. with 4-axis expansion, and convenience you require 4-axis machining, 4-axis extension.
• 5. Standard parallel port interface, support for , KCAM4 series software.

Applicable to the stepper motor: 42,57,86-type phase current is less than 3A of the 2-phase 4-phase (4-wire line and 8 lines)
Features:
1. Maximum phase current output of 3.5A, the average output of 2.5A.
2. with spindle control relay, , etc. easy to use software to control the start and stop of the spindle.
3. high speed optocoupler DC / DC fully isolated from the true sense of protecting your computer.
4. with 4-axis expansion, and convenience you require 4-axis machining, 4-axis extension.
5. Standard parallel port interface, support for , KCAM4 series software.
6. Supports four sub select - 1,1 / 2,1 / 4,1 / 16.
7. four input control, you can set the limit, stop, reset, which is divided into the knife.
8. support four operating modes - mixed-mode, fast mode, slow mode, the ordinary mode.
9. the semi-flow control functions, effective to stop the motor when the current drops to a minimum.
10. Have fan interface, you can add a fan to the board.
11. PWM chopper type sinusoidal micro-order control technology
Package Includes:
1 x 3 Axis TB6560 stepper motor driver
1 x cable
Item specifics:
Motor type: Stepper Motor
