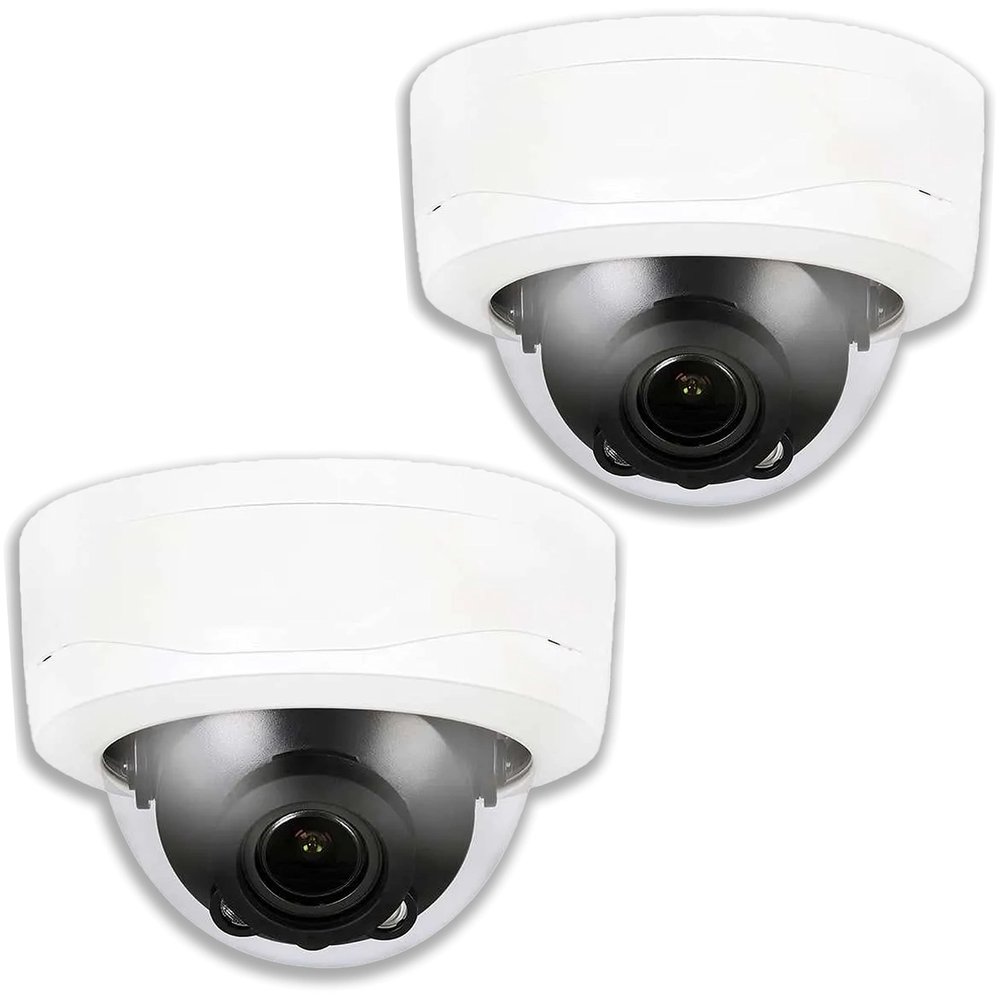

2X 8MP 4K Network IP CCTV Security Cameras Vari-Focal Dome H.265 for Diamond NVR

Description

• 8MP, 1/2.7 CMOS image sensor, low illuminance, high image definition
• Outputs max. 8MP (3840 2160) @15 fps, and supports 26881520 (2688 1520) @25/30 fps
• Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire
• Abnormality detection: Motion detection, video tampering, no SD card SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection

2x 8MP 4K HD Network IP CCTV Security Cameras Vari-focal Dome H.265 For Diamond NVR

With upgraded H.265 encoding technology, the Lite series network camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays better color image in the condition of low illumination. It supports SD card storage, dust-proof function, waterproof function and vandal-proof function, complying to the standards of IP67 and IK10 (Supported by some select models).

Features
- 8MP, 1/2.7 CMOS image sensor, low illuminance, high image definition
- Outputs max. 8MP (3840 2160) @15 fps, and supports 26881520 (2688 1520) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max IR distance: 40 m
- ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, no SD card SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
- Supports max. 256 GB Micro SD card
- 12V DC/PoE power support
- IP67, IK10 protection

*This IP Security Camera works with Diamond Networking Video Recorder(NVR)

This listing includes:
(2) ENS Network CCTV Security Cameras HNC3V281R-IR-ZS-S2

SPECIFICATIONS:

-Camera-
Image Sensor: 1/2.7 8 Megapixel progressive CMOS
Effective Pixels: 3840 (H) 2160 (V)
ROM: 128 MB
RAM: 256 MB
Scanning System: Progressive
Electronic Shutter Speed: Auto/Manual 1/3 s1/100,000s
Min. Illumination: 0.008 Lux@F1.5
IR Distance: 40m (131.2 ft)
IR On/Off Control: Auto/Manual
IR LEDs Number: 2

-Pan/Tilt/Rotation Range-
Pan: 0 ~ 355
Tilt: 0 ~ 67
Rotation: 0 ~ 355

-Lens-
Lens Type: Motorized vari-focal
Mount Type: 14
Focal Length: 2.7mm ~ 13.5mm
Max. Aperture: F1.5
Iris Type Fixed
Close Focus Distance 0.8m0.8m (2.62 ft2.62 ft)

-Field of View-
Pan: 113 ~ 31
Tilt: 58 ~ 17
Diagonal: 138 ~ 36

-DORI Distance-
Lens----Detect-----Observe----Recognize----Identify
--W------85.3m------34.1m---------17m----------8.5m
---------(279.9ft)----(111.9ft)-----(55.8 ft)-------(27.9 ft)
--T-------280m-------112m----------56m----------28m
---------(918.6ft)----(367.5ft)----(183.7ft)-------(91.9 ft)

-Smart Event-
General IVS Analytics: Tripwire; intrusion

-Video-
Video Compression: H.265; H.264; H.264B; MJPEG
Smart Codec: Yes

-Video Frame Rate-
Main stream:
3840 2160 (1 fps15 fps)
2688 1520 (1 fps25/30 fps)
Sub stream:
704 576 (1 fps25 fps)
704 480 (1 fps30 fps)

Stream Capability 2 streams

-Resolutions-
3840 2160 4K UHD
3072 2048
3072 1728
2592 1944
2688 1520
2048 1536 3M
2304 1296
1920 1080 1080p HD
1280 960 1.3M
1280 720 720p HD
704 576 D1
704 480 D1
640 480 VGA
352 288 CIF
352 240 CIF

Bit Rate Control: CBR / VBR
Video Bit Rate: H.265: 12 Kbps8192 Kbps / H.264: 32 Kbps8192 Kbps
Day/Night: Auto(ICR)/Color/B/W
BLC: Yes
HLC: Yes
WDR: 120 dB
White Balance: Auto/natural/street lamp/outdoor/manual/regional/custom
Gain Control: Auto/Manual
Noise Reduction: 3D DNR
Motion Detection: OFF/ON (4 areas, rectangular)
Region of Interest(RoI): Yes (4 areas)
Smart IR: Yes
Image Rotation: 0/90/180/270 (Supports 90/270 with 2688 1520 resolution and lower.)
Mirror: Yes
Privacy Masking: 4 areas

-Network-
Network: RJ-45 (10/100 Base-T)
Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Interoperability: ONVIF(Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host: 20
Edge Storage: Dahua Cloud; FTP; SFTP; Micro SD Card (support max. 256 GB); NAS
Browsers: IE, Chrome, Firefox
Management Software: Smart PSS; DSS; DMSS
Mobile Phone IOS; Android
Certification

-Certifications-
CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

-Power-
Power Supply 12V DC/PoE (802.3af)
Power Consumption <7.4W

-Environment-
Operating Conditions 30C to +60C (22F to +140F)/less than 95% RH
Storage Temperature 40C to +60C (40F to +140F)
Protection Grade IP67; IK10

-Structure-
Casing: Metal
Dimensions: 122mm 88.9mm (4.80" 3.50")
Net Weight: 0.47 kg (1.1 lb)
Gross Weight: 0.63 kg (1.4 lb)

Lite Series | HNC3V281R-IR-ZS-S2
