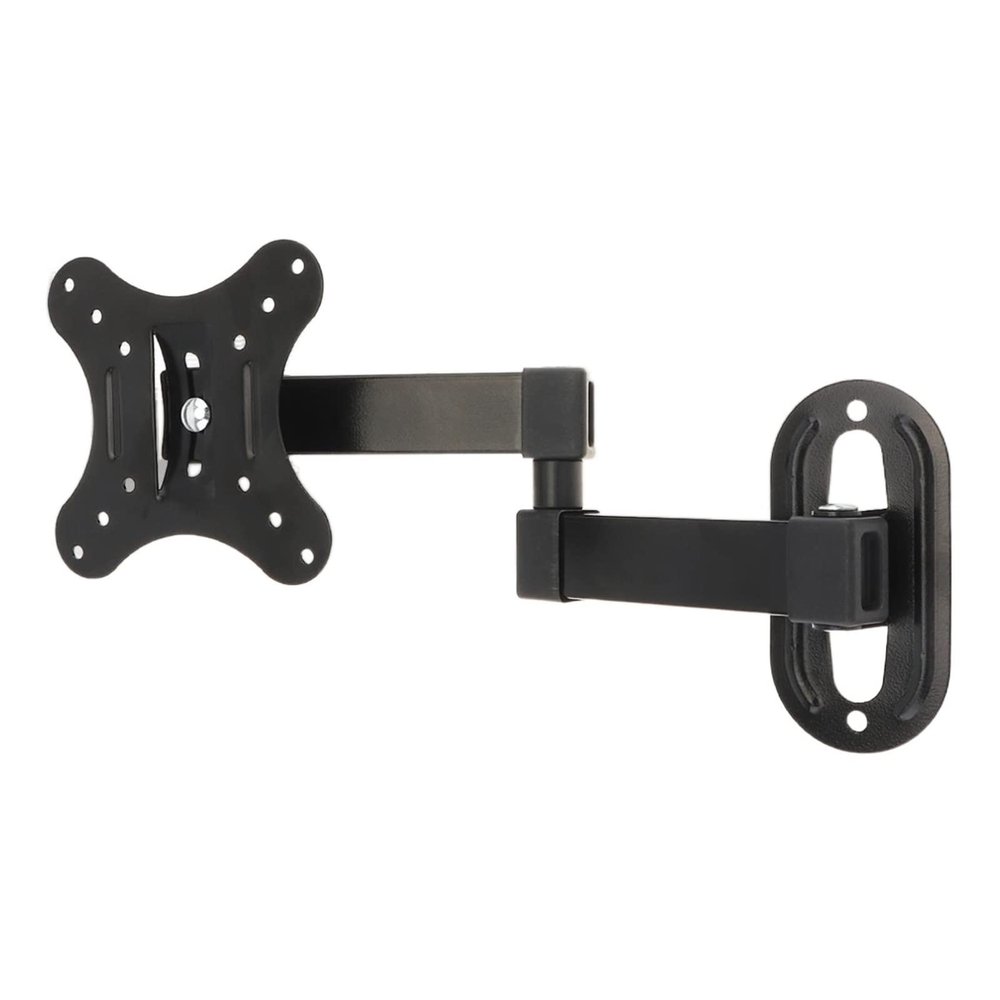

2PCS 10KG Adjustable 14-27 Inch TV Wall Mount Bracket Flat Panel TV Frame Support 15 Degrees for LCD LED Monitor Flat Pan(1 Piece)

Description

• Bedstand & Desk Mounts

Bedstand & Desk Mounts
Description
Product Type: TV Rack
Color: Black
Material: 1.5mm thick cold rolled steel
Compatible TV Size: 14 inches to 27 inches
VESA: 75 x 75mm to 100 x 100mm
Load Weight: 10Kg / 22lbs
Rotated Degrees: 180 degrees(right and left), 30 degrees(up and down)
Distance to Wall: 60-300mm
Features:
- The movable joints are reinforced with plastic sleeves, which is more durable.
- Automatic telescopic adjustment design, stretchable and rotatable.
- The key parts are thickened, the structure is stable, and the ability to withstand weight is strong.
- The tilt elevation angle can be adjusted to -15 to 15.
- High-intensity rotating shaft that can withstand multiple rotations without deformation.
- Safety screw design ensures no offset under load.
- Applicable scope: Suitable for most HDTV flat screen TVs, LCD TVs, LED TVs, plasma TVs. For example, , , Sharp AQUOS, Sanyo, Plasma TV. Suitable for home, entertainment, public places and commercial establishments such as living room, KTV, bar, airport, train station, bus station, shopping mall, store waiting hall, lounge, large conference room, classroom, lobby and restaurant.
Installation and operation instructions:
1. Use the wall plate as a templet to drill four holes of 10mm diameter and 50mm depth in the concrete wall. Then wedge four plastic concrete anchors into the holes.
2. Install the wall plate, Putthe wall plate on the wall,and then screw four lag bolts into each plastic concrete anchor through metal washer to four the lag bolt,the plastic concrete anchor and the wall.
3. Install the monitor brackets onto the back of the panel TV: screw four bolts into the holes in the back of the panel TV Make sure the distance from each bracket to the top of the panel TV is equal,and also as center as possible.The parts shall be selected according to the dimensions of the holes in the back of the panel TV.
4. Adjust t
