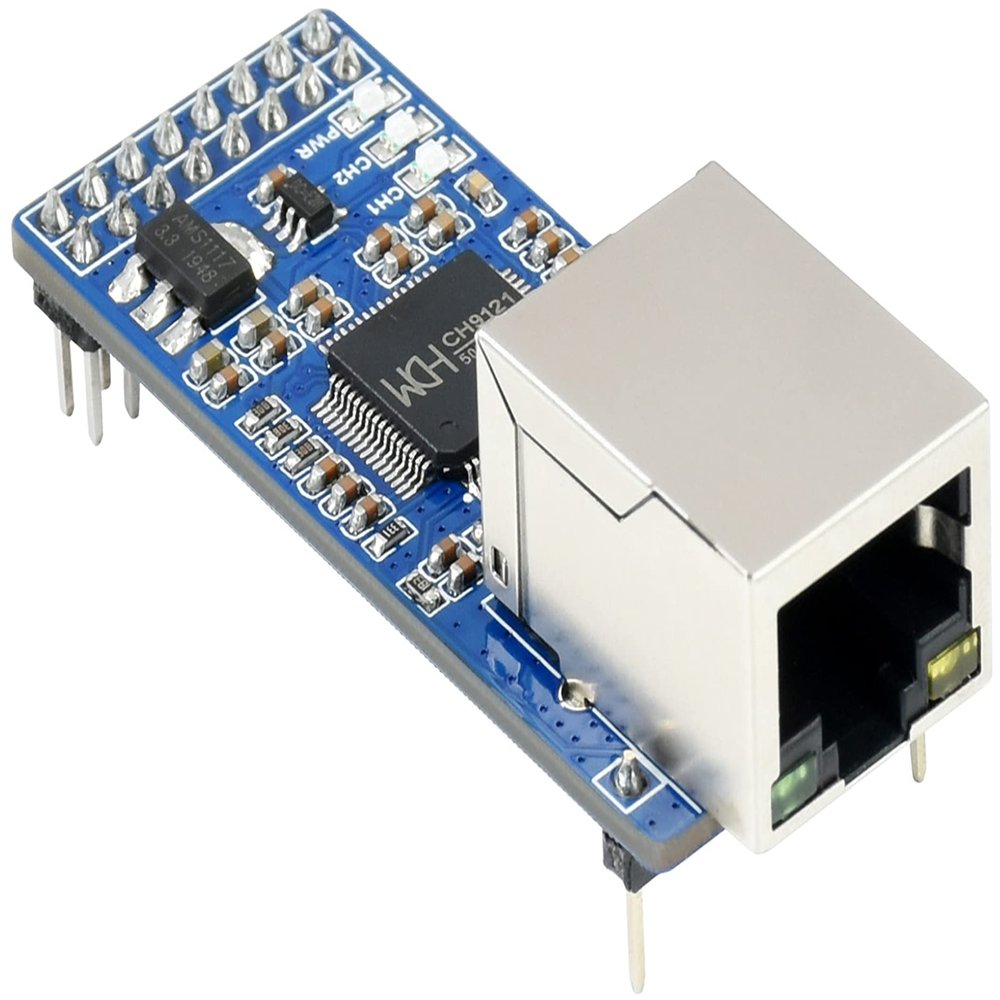

2-Channel UART to Ethernet Converter, Serial Port Transparent Transmission Module UART TTL and RJ45 Ethernet Bi-Directional Transmission, with Control Pin for Raspberry Pi/Arduino/STM32,ect.

Description

• 2-CH UART to Ethernet Converter, serial port transparent transmission module. Embedded Ethernet MAC and PHY layers. Bi-direction transparent data transmission between UART and Ethernet. 10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant.
• Auto-MDI/MDIX, detect and switch cable type automatically. Supports DHCP auto-obtained IP and DNS domain access. Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command.
• Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER. 2-CH UART concurrent operation, standalone transparent transmission for each channel. Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch. Supports virtual serial port software (provided). KEEPALIVE mechanism support.
• Application scenario : Bi-direction transparent transmission between UART TTL and wired Ethernet; Extend the communication distance for serial devices; Manage multi serial client devices remotely via one web server; Manage serial server remotely via multi web clients
• 3.3V/5V Operating voltage. 140mA Operating current. TCP/UDP Operating mode. 300bps ~ 921.6Kbps UART baudrate. UART TTL level:compatible 3.3V / 5V

Overview
The 2-CH UART TO ETH provides an easy way to communicate between UART TTL and RJ45 Ethernet, allowing bi-directional transparent data transmission. It is easy to use, along with features like fast data rate, low power consumption, high stability, suits applications such as safety & security, IoT, and so on.

Features
(1). Embedded Ethernet MAC and PHY layers
(2). Bi-direction transparent data transmission between UART and Ethernet
(3). 10/100M, full-duplex/half-duplex auto-negotiation Ethernet interface, 802.3-compliant
(4). Auto-MDI/MDIX, detect and switch cable type automatically
(5). Supports DHCP auto-obtained IP and DNS domain access
(6). Network parameter configuration like chip operating mode, port, IP, via host computer software or UART command
(7). Four operating modes: TCP CLIENT, TCP SERVER, UDP CLIENT, UDP SERVER
(8). 2-CH UART concurrent operation, standalone transparent transmission for each channel
(9). Full-duplex or half-duplex UART communication, supports RS485 RX/TX auto switch
(10). Supports virtual serial port software (provided)
(11). KEEPALIVE mechanism support
(12). Comes with development resources and manual (examples for Pico/Raspberry Pi/Arduino/STM32)

Package Content

2-CH UART TO ETH x1

Note
Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
