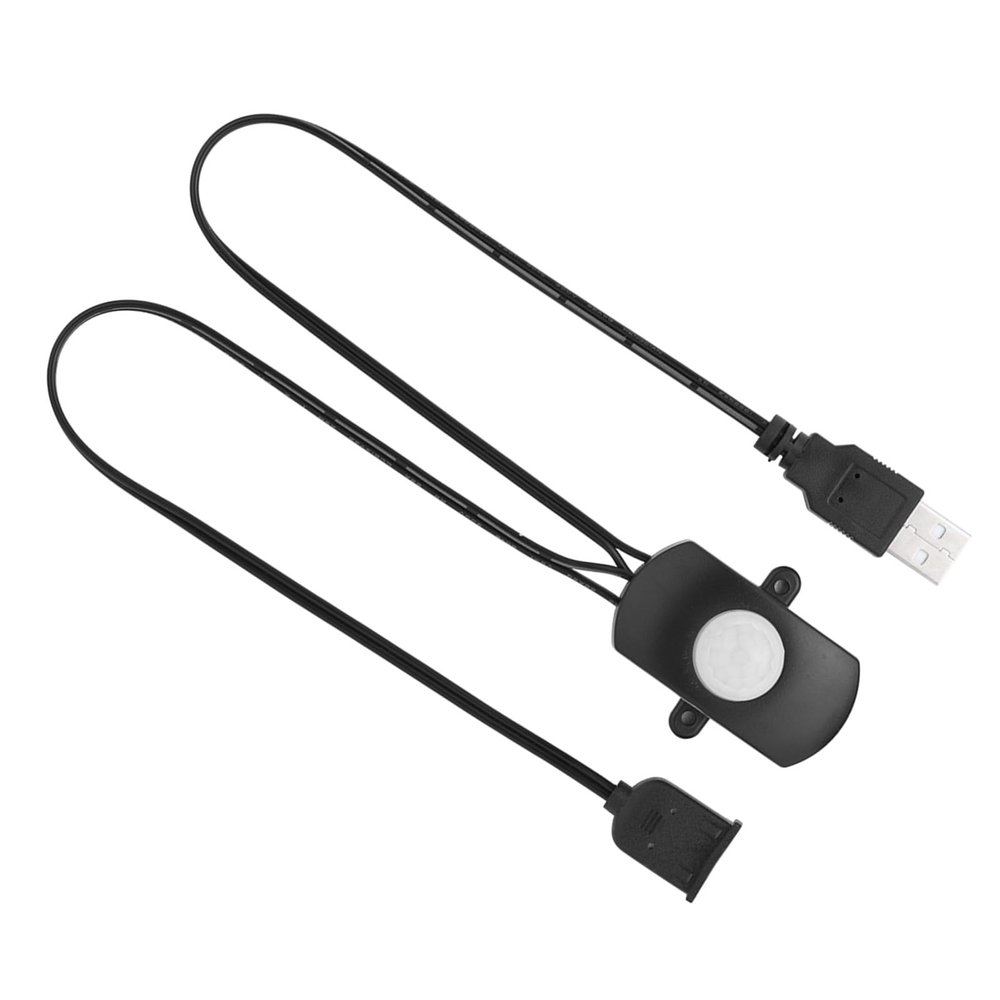

2A DC 5-24V Mini PIR Motion Sensor Switch, Infrared Occupancy Detector for LED Strip, USB Interface, Automatic Light Control for Indoor Lighting, Alarm PIR Detection (Black)

Description

• PIR Motion Sensor Technology: This mini PIR motion sensor switch uses advanced infrared technology to detect human movement, ensuring automatic activation of LED strips and lighting. Ideal for motion-activated lighting in various indoor spaces such as corridors, bathrooms, basements, and garages.
• Energy Efficient & dependable: With its high and stable sensitivity, this sensor switch efficiently saves energy and reduces electricity costs. It automatically turns off after detecting no movement for a set time, making it ideal for energy-conscious users.
• USB Powered Convenience: This sensor features a USB interface, allowing you to easily power it through a mobile phone charger, power bank, or computer. Its versatile USB power input makes installation simple and user-friendly, no need for complex wiring.
• Wide Detection Range: The sensor offers a broad 120-degree detection angle with a sensing range of 5-7 meters, ensuring full coverage of the intended area. Whether for indoor lighting or security purposes, it provides dependable and effective motion detection.
• Adjustable Time Delay & Temperature Compensation: With a default 15-second delay setting, the sensor allows for customizable adjustments. Additionally, the built-in temperature compensation chip minimizes the impact of temperature variations on the sensing distance, ensuring consistent performance in different environments.

Description:
This switch with PIR Infrared Motion sensordetector, can be used in corridors, bathrooms, basements, warehouses, garagesand other places to achieve automatic control functions. High and stablesensitivity, effectively save energy and money for you.

Features:
1.With PIR motion sensor, it can detect humanmovement by detecting infrared ray emitted by human body.
2.120 degrees cone angle detecting range.High and stable sensitivity, effectively save energy and improve efficiency.
3.Intelligent sensing, it will automaticallydelay to shut down after the person leaves.
4.Widely used on the motion-activatedlighting, for automatic lighting corridors, bathrooms, basements,warehouses,garages and other places.
5.USB port make it convenient and simple tostandby. Power supply via mobile phone, charging bank or other devices with USBport, 6.Output voltage is equal to input voltage, low power consumption.
Built-in temperature compensation chip,reducing the impact sensing distance by the temperature.

Specifications:
Operating voltage: 5V-24 DC
Output current: 2A
Working temperature: -15C~38C
Function: Infrared human body sensor switch
Quiescent current:
Trigger mode: Continuous trigger
Output Mode: Inductive Output
Sensing distance: 5-7m
Sensing angle: 120 degrees
Induction mode: Passive
Time Range: Default setting 15s, Adjustable
Product size: 5 x 2.6 x 2.2cm/1.97 x 1.02 x 0.87inch
Power supply: by mobile phone charging, bycharging bank, by computer, by notebook
Color: Black, White (Optional)

Package List:
1 x PIR Motion Sensor Switch
1 x Screws
