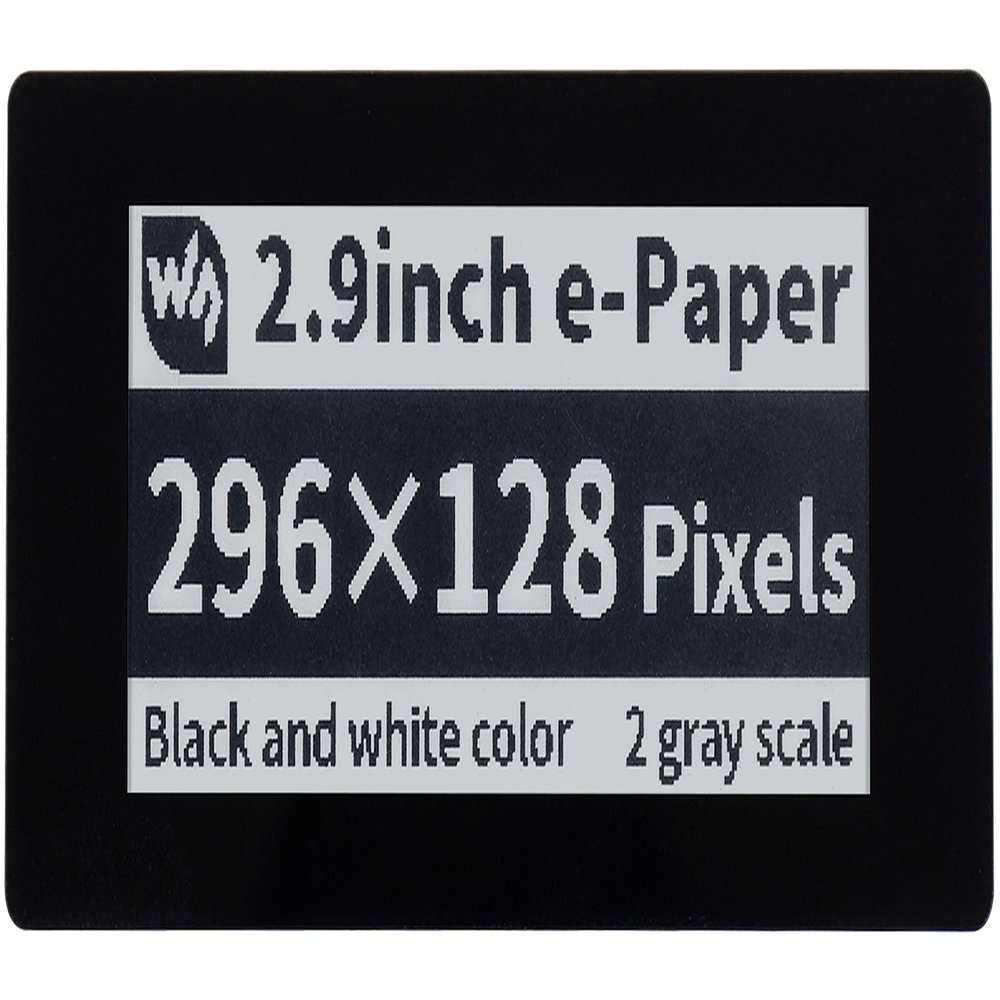

2.9inch Touch E-Paper Display HAT for Raspberry Pi 4B/3B+/3B/2B/Zero/Zero W/WH, 296128 Pixel 5-Points Black/White 3.3V/5V Capacitive Touch E-Ink Screen, SPI Interface Support Partial Refresh

Description

• 2.9inch capacitive touch ePaper module, 296128 resolution,Black / White, SPI Interface. 5-points touch support, user-defined wakeup gesture.
• Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
• No backlight, keeps displaying last content for a long time even when power down. Ultra low power consumption, basically power is only required for refreshing.
• Reversed control interface, for connecting with controller boards like Arduino/STM32, etc. Comes with development resources and manual (examples for Raspberry Pi).
• Support partial refresh, low power, wide viewing angle, paper-like effect Ideal for price tags, shelf labels, industrial instruments...

2.9inch Touch e-Paper E-Ink Display HAT for Raspberry Pi, 5-Points capacitive touch, 296128 pixels, Black / White, SPI Interface.
Capacitive touch, partial refresh, low power, wide viewing angle, paper-like effect

Features
2.9inch capacitive touch ePaper module, 296128 resolution
5-points touch support, user-defined wakeup gesture
No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards,Reversed control interface, for connecting with controller boards like Arduino/STM32, etc.
Comes with development resources and manual (examples for Raspberry Pi)
Touch control power supply configuration: the touch control power supply is determined by the position of 0R resistor

Specifications
operating voltage : 3.3V/5V
display color: black, white
interface: 3-wire SPI, 4-wire SPI
grey scale:2
partial refresh time: 0.3s
full refresh time: 2s
refresh power: 26.4mW (typ.)
resolution: 296128 pixels
standby current: 170
outline dimensions: 89.10 42.70mm
display size : 66.89 29.05mm
dot pitch : 0.227 0.226mm

Package Content
2.9inch Touch e-Paper HAT x1
