24VDC Two Master and One Slave Rs485 Repeater Cache Photoelectric Isolation Modbus Dual Host Hub Industrial Grade Signal Extension(1 Slave to 2 Master)

Description

• Compact and Easy Installation:DIN rail mountable design with optional bus power, simplifying industrial wiring.
• Rs485 Repeater|Rs485 Repeater Module|Extended Communication Range:Supports up to 1200m communication distance, enhancing industrial signal reach.
• Robust Isolation Design:Features photoelectric isolation for reliable, interference-free RS485 signal extension.
• Versatile Host Compatibility:Accommodates multiple master-slave configurations, ensuring flexible RS485 network setup.
• Wide Operating Temperature:Performs flawlessly in environments, spanning from -20 to +55.

Description
SKU Explanation:
1 in 1 out isolator: Rs485 isolator, 1 in 1 out, rs485 in and out, 24vdc power.
2 Slave to 1 Master: [Slave station] 2 to 1 [Master station] hub, rs485 in and out, 24vdc power.
4 Slave to 1 Master: [Slave Station] 4 to 1 [Master Station] Hub, rs485 in and out, 24vdc power.
1 Slave to 2 Master: [Slave station] 1 to 2 [Master station] buffer, rs485 in and out, 24vdc power.

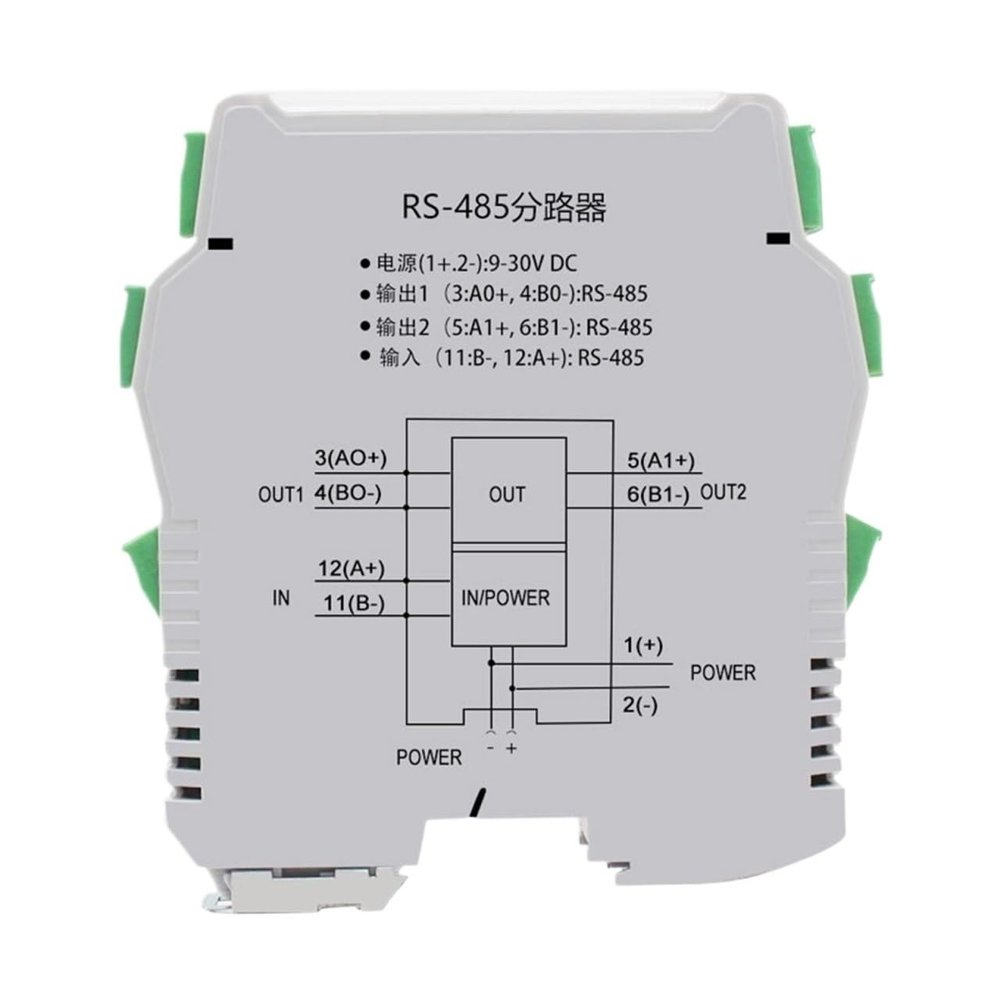

Product Description
RS-485 buffer, supporting communication between two RS-485 hosts and the same slave.
DIN rail installation method with optional bus power supply function.
Main Technial Parameter
Input
Numbers of channel
2
Signal type
Host RS-485 digital signal
Signal level rules
Standard RS-485 differential level
BAUD
1200-115200bps
Data bit
5,6,7,8bit
Parity
No parity, odd parity, even parity
Stop bit
1 bit
Cache size
256byte
Communication distance
1200m
Output
Numbers of channel
1
Signal type
Slave RS-485 digital signal
Signal level rules
Standard RS-485 differential level
BAUD
1200-115200bps
Data bit
5,6,7,8bit
Parity
No parity, odd parity, even parity
Stop bit
1 bit
Cache size
256byte
Communication distance
1200m
Basic Parameter
Power supply
DC24v,Voltage range:DC9-30V
Consumption power
2W@DC24V
Insulation strength
1500VDC/1min
Insulation resistance
100M
Working temperature
-40~+85
Relative humidity
10%-90%RH
Dimensions : 118*100*17.5mm
Operating Temperature : -20 ~ +55
Supply Voltage : 24v
Accuracy Class : 0.1%F.S.
Model Number : TD-751X
Display Type : Digital Only
DIY Supplies : Electrical
