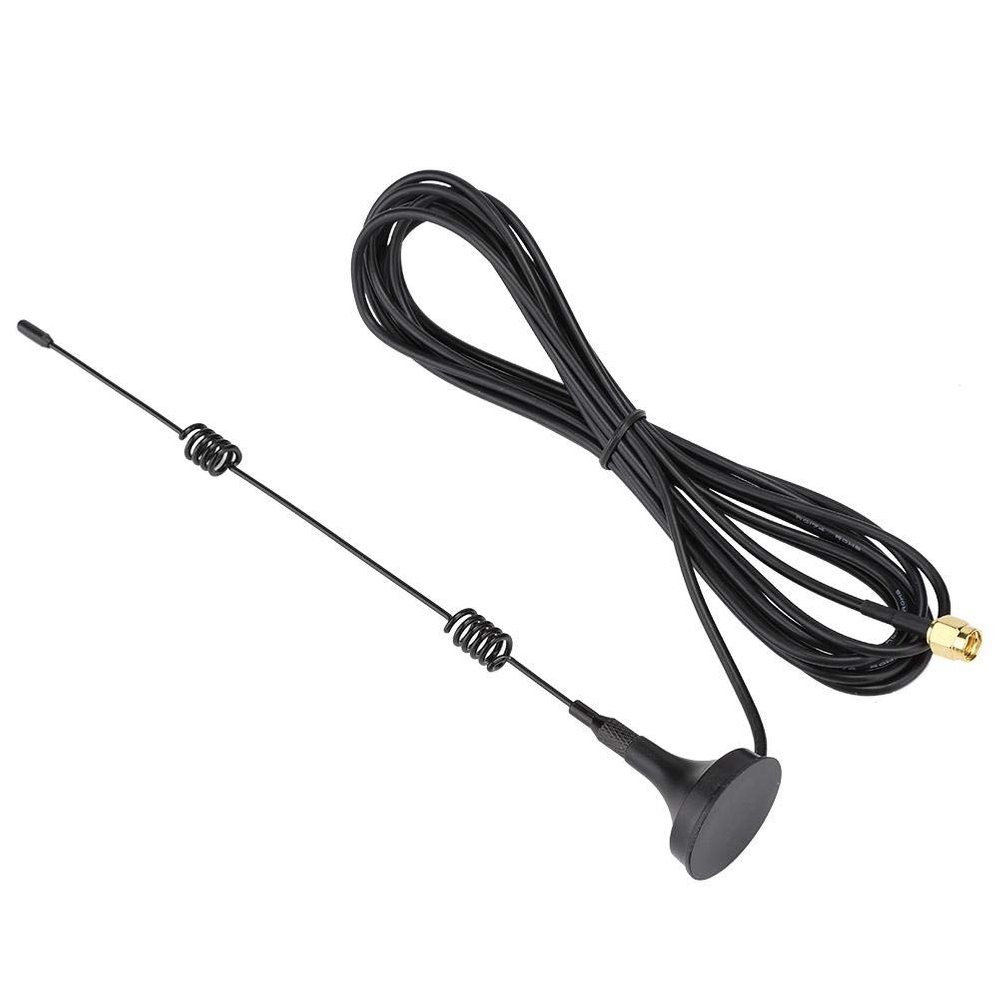

2.4GHz 8dbi Antenna SMA Female Plug with Magnetic Base High Gain for ZigBee Module Router Network Card (10m/32.81ft)

Description

• This product is made of high quality metal material, strong and .
• Support 2.4GHz network, suitable for module router network card ZigBee, height is 23cm.
• 8dBi high gain, greatly improving signal reception stability.
• Pure copper oscillator signal is stronger and more stable.
• The base is magnetically mounted, not easy to fall off, and can be adsorbed on various devices.

Specifications:
Material: Metal
Frequency: 400 2500MHz 2.4GHz
VSWR: 1.5
Gain: 8dBi(maximum)
Polarization Type: vertical
Rated power: 50W
Input impedance: Nominal value is 50ohms
Cable Length: /9.84ft, 5m/16.40ft, 10m/32.81ft(optional)
Antenna Connector Type: SMA Internal thread internal pin
Wire: RG174
Compatible Model: Module Router Network Card ZigBee vending machines, advertising machines, and other industrial equipment

Package list:
1 x Antenna
