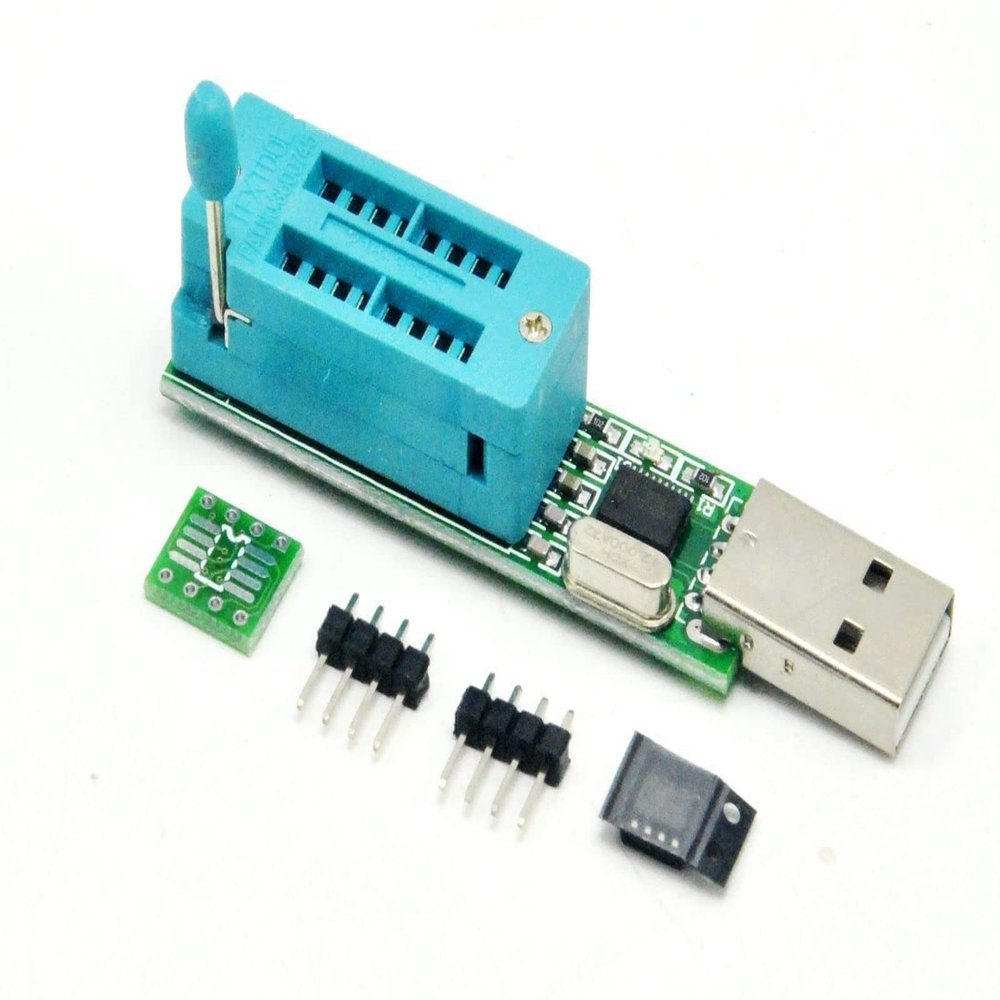

24CXX 24LCXX Programmer EEPROM Data Memory Reader Writer USB Port WIN7

Description

• PCB using high-quality glass plate, thickness 1.6mm. Dimensions: 20mm X 55mm
• using the USB interface, can be directly plugged into the USB port on a computer chip can be programmed and read the complete work
• Impedance: 4-8 ohms
• Can program the chip directly to the back of the package

Features
1. PCB using high-quality glass plate, thickness 1.6mm. Dimensions: 20mm X 55mm.
2. using the USB interface, can be directly plugged into the USB port on a computer chip can be programmed and read the complete work. 3. programmer support hot-swapping, that is the case of
uninterruptible power programmer can be removed or placed on the chip.
4. can program the chip directly to the back of the package.
5.Programmer supports the chip:24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C128, 24C256, 24C512, 24C1024
6.It can support Win-XPwin7win8win10 and so on.
Instruction
1.USB to Serial (232): DIP switch 1,2 ON, 3,4,5,6 OFF
2.USB to 485: DIP switch 3,4 ON, 1,2,5,6 OFF
3.serial (232) to 485: DIP switch 5,6 ON, 1,2,3,4 OFF
4.USB, serial port (232) to 485 at the same time: DIP switch 3,4,5,6 ON, 1,2 OFF
5.USB, 485 at the same time-to-serial (232): DIP switch 1,2,5,6 ON, 3,4 OFF
Package
1pc 24CXX 24LCXX Programmer EEPROM Data Memory Reader Writer USB Port WIN7
