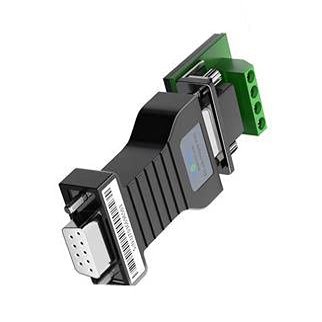

232 to 485 Converter Industrial Passive RS485 to RS232 Serial Port Module ut-204e bidirectional Mutual Conversion Module

Description

Product parameters

Product Name: RS232 to RS485 converter

Model: ut-204e

Interface features: compatible with EIA / TIA RS-232 and RS-485 standards

Electrical interface: RS-232 end DB9 hole connector

RS485 terminal DB9 pin connector, distribution terminal

Working mode: asynchronous half duplex differential transmission

Transmission medium: twisted pair or shielded wire

Transmission rate: 300bps-115.2kbps

Transmission distance: RS-232 up to 5 meters, RS-485 up to 1200 meters

Use environment: - 40 - 85 , relative humidity 5% to 95%

Product features:

Wide range of applications, passive two-way conversion, two-way transmission communication distance up to 1200 meters

Engineering grade low / high temperature resistance

It has good high and low temperature resistance, and can operate stably at - 25 ~ 70

Transient voltage protection, safer signal transmission

Built in fast transient voltage suppression protector, protect RS485 interface terminal, protect data from loss, more secure transmission

Stable high speed transmission of 1200 meters

Stable component combination and TVs converter ensure that the signal can be transmitted to 1200 meters at the rate of 300bps-115.2kbps

Data transmission without delay

Built in high-speed logic processing chip and dual TVs tube, ensure that the signal transmission is not delayed, and the system can be used more smoothly
