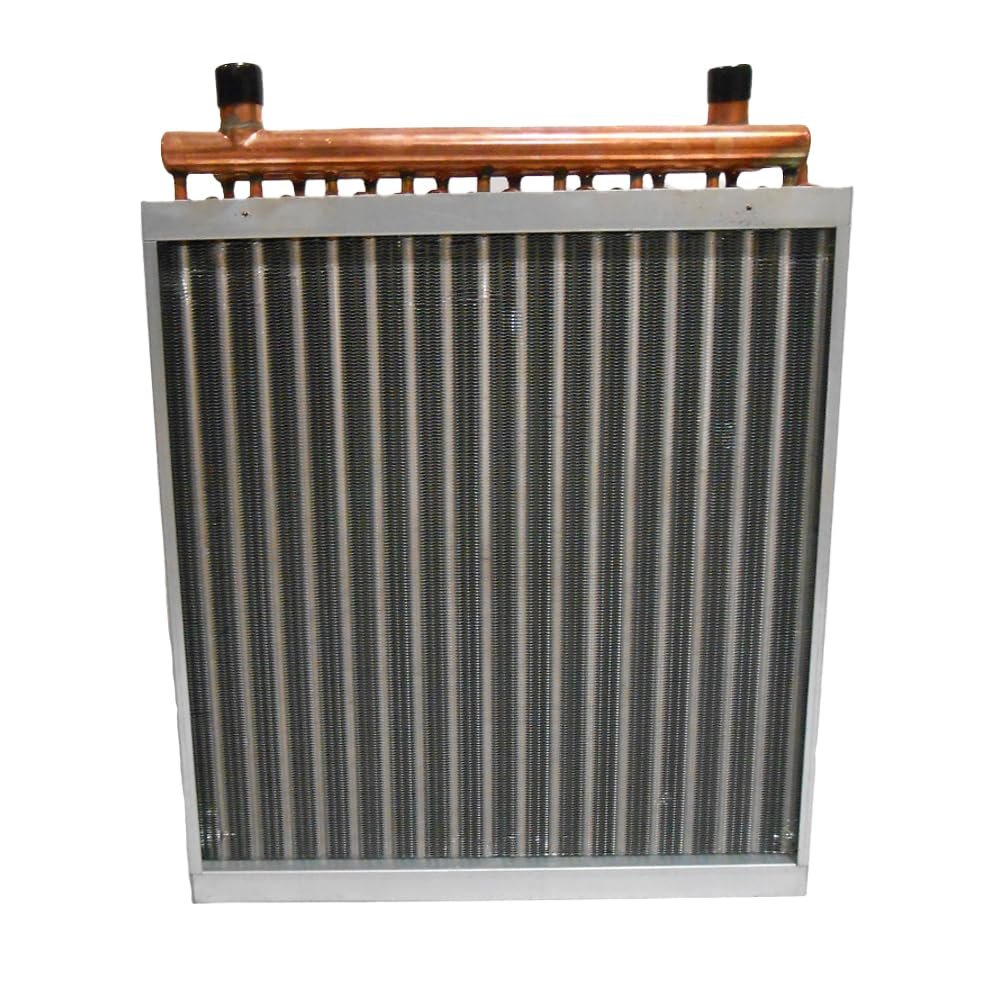

22x24 Water to Air Heat Exchanger Hot Water Coil Outdoor Wood Furnace

Description

• 1" Copper Connections

This unit is a Water to Air Heat Exchanger for use in your hot air plenum of your existing forced air furnace. This unit is most commonly used in conjuction with an outside wood furnace to transfer heat into your existing forced air system. It can also be used with any other source of hot water such as a boiler to create hot air. This exchanger is for use with ANY outdoor wood stove and also features quality aluminum fins with seamless copper tubes.BTU Rating178,538 @ 18 GPMFeatures & BenefitsThese exchangers use Lead-Free solder and can be used with potable waterOur coils are packaged the best possible way to minimize shipping damage The coils fit snuggly in the boxes to minimize movement within the box There are strips of styrofoam all the way around the manifold to prevent damage if dropped The entire coil is packaged in a double wall, cardboard box These are also packaged with metal port protectors over the inlet/outlet ports to protect them from shipping damage Product SpecificationsFinned Area: 22" x 24"Overall Dimensions: 22-1/4" x 26" x 3-1/2" thickOverall Dimesions (including Copper Manifold): 22-1/4" x 29" x 3-1/2" thickRows of Tubes: 3 (3/8" Seamless Copper)Inlet/Outlet: 1" Copper SweatRating: 175 psig/350FFin Spacing: 12/inchCFM: 3000We do our best to offer a high quality product that will not be damaged during shipping and you will not have to return due to manufacturers defects such as leaking.We stand behind the exchangers with a Limited Lifetime Warranty against manufacturer defects .A free copy of the written warranty is available upon request.
