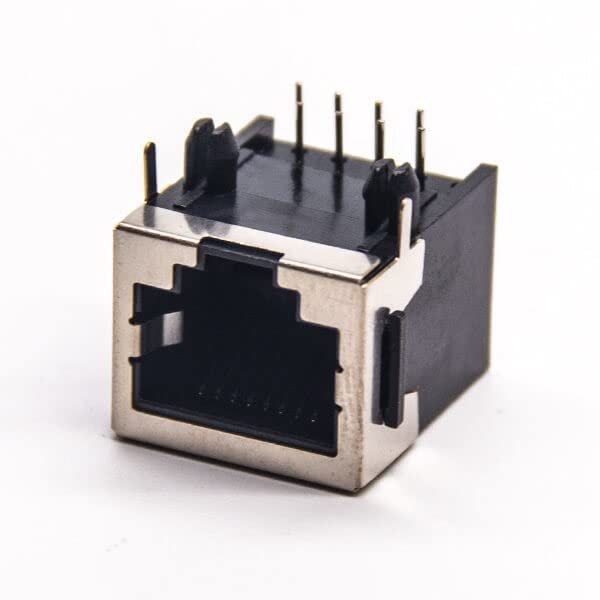

20pcs RJ45 Ethernet Connectors Single Port 90 Degree Modular Shielded PCB Mount Without LED Through Hole

Description

• [Product]: RJ45 Jack,8P8C,Single Port,1*1,Angled,Gold,Through Hole,PCB Mount,Shielded,without LED,without Filtered
• [High-Speed]:It enables users to work more efficiently by providing high-speed data transfer and reliable power supply.
• [PVE shell]: With environmentally friendly PVE shell, this durable connector has no fear of daily wear and tear.
• [Nickel Plated Interface]: The interface is effective with nickel plating process, Prevent oxidization and rust of the connector, At the same time, resistant to pulling and inserting.
• [One-Piece Seamless Interface]:The nickel plating process of the interface effectively, Prevents oxidization and rusting of the connector, Resistant to plugging and unplugging.

Applications:

Ethernet switches
ATMs
Point of sales terminals
Vending machines
Set-top boxes
Technology analysis equipment
Laptops
Phone line security systems
Electrical Characteristics
Current rating: 3A continuous
Insulation resistance: 500M min.
Dielectric withstanding voltage: 1500V min.
Voltage rating 1000V rms
Mechanical Characteristics
Mating force: 5N to 20N
Unmating force: 8N to 20N
Durability:10,000 mating cycles
Environmental Characteristics
Operating Temperature: -40C~ + 120C
Material:
Part
Material
Finish
Housing
Nylon 46 glass filled
UL94V-0
Shield
Copper Alloy
Nickel Plating
Contact
Copper Alloy
Au over nickel
