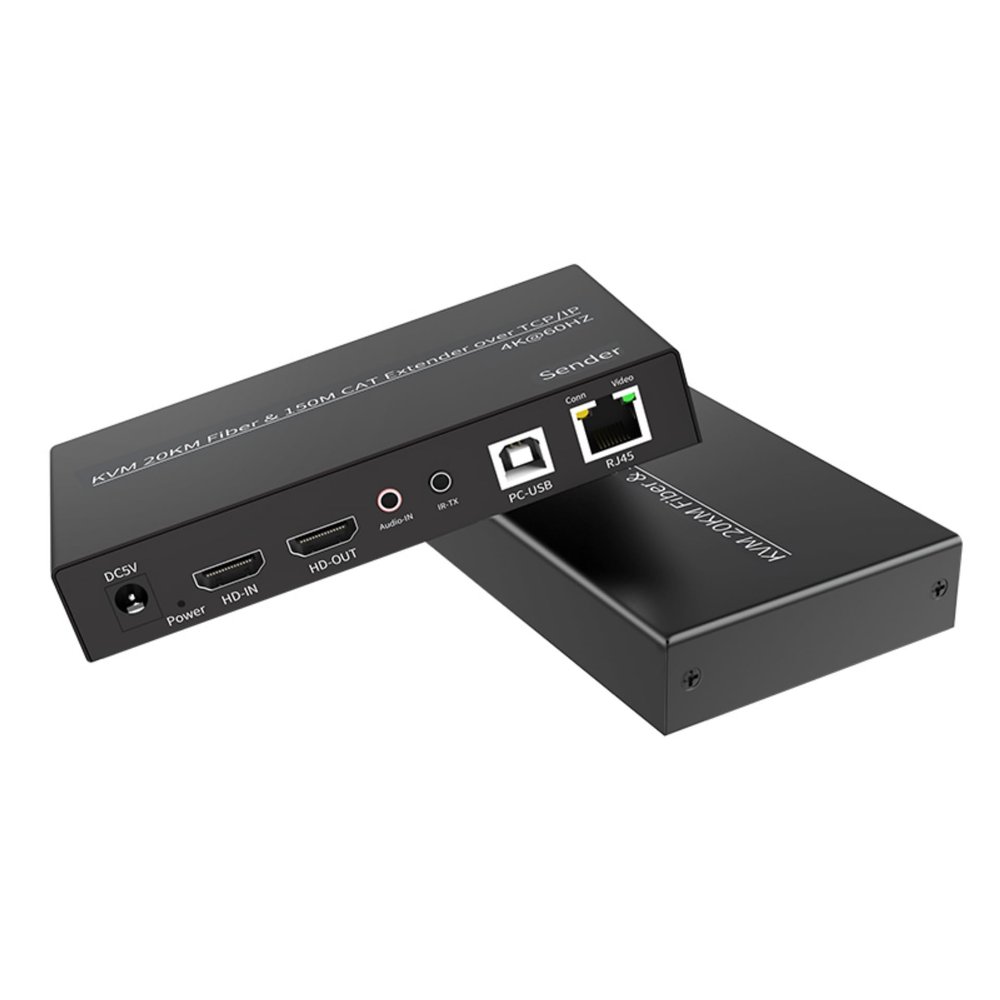

20KM Fiber Extender Over TCP/IP 4K 60Hz HDMI-Compatible RJ45 Interface to 150M USB KVM Fiber Transceiver Support Mouse Keyboard

Description

• A:Ultra-long-distance transmission: Break through the limitations of traditional HDMI cables. Using CAT-5E/6 network cables can extend the transmission distance to 150 meters, while fiber optic transmission can reach up to 20 kilometers, meeting the needs of long-distance scenarios.
• B:4K HD Resolution Support: With a resolution of up to 38402160@60Hz and a signal transmission rate of 6Gbps, it ensures lossless transmission of 4K video and is compatible with the HDCP protocol.
• C:Flexible Cabling Advantages: Compared to HDMI cables, CAT-5E/6 or fiber optic cables are easier to bend and route through conduits, and users can customize cable lengths, addressing issues such as fixed HDMI cable lengths and difficulties in conduit routing.
• D:Multi-functional integrated design: Supports HDMI/DVI interfaces (adapter required), integrates USB keyboard/mouse KVM functionality, and is compatible with lossless and compressed audio formats such as LPCM, DTS, and Dolby.
• E:Plug-and-play convenience: No additional setup required when used in pairs. The transmitter features HDMI video output, independent audio input, and infrared output, while the receiver supports audio output and infrared input, ensuring simple operation.

1. Introduction
This extender extends high-definition TV signals and USB keyboard/mouse signals up to 150 metres or 20 kilometres using a single CAT-5E/6 cable or fibre optic cable, with a resolution of up to 38402160@60Hz. It not only breaks the distance limitations of HDMI cables but also offers greater flexibility and convenience in cabling thanks to the use of CAT-5E/6 or fibre optic cables. This HDMI extender uses an HDMI (High-Definition Multimedia Interface) connector. If an HDMI-to-DVI adapter is used, it also supports DVI (Digital Visual Interface) connectors, providing greater flexibility and more options for home theatre systems.
2. Operating Steps
1) Connect the display device directly to the signal source player via an HDMI cable, and check for signal output and normal display.
2) Connect the HDMI cable and USB printer cable to the HDMI IN, USB IN, and host ports on the sender (Sender).
3) Connect the receiver (Receiver) to the display device and the sender (Sender) to the display device via an HDMI cable.
4) Connect the host's DC 3.5 audio port to the sender, receiver, and speakers using an audio cable.
5) Connect the mouse and keyboard to the receiver's USB ports.
6) Connect the sender and receiver using a CAT-5E/6 cable or fibre optic cable.
7) Power on the sender and receiver.
3. Packaging Contents
1) One transmitter unit
2) One receiver unit
3) Two DC5V power adapters
4) One USB A-B data cable for transmitting keyboard and mouse data and powering the transmitter unit
5) One infrared receiver cable and one infrared transmitter cable
6) User manual
KVM Features:
KVM = keyboard, video, mouse,
The "Receive" USB interface only supports connecting USB wired mouse and wired standard 104 keyboards, and does not support any other USB devices.
