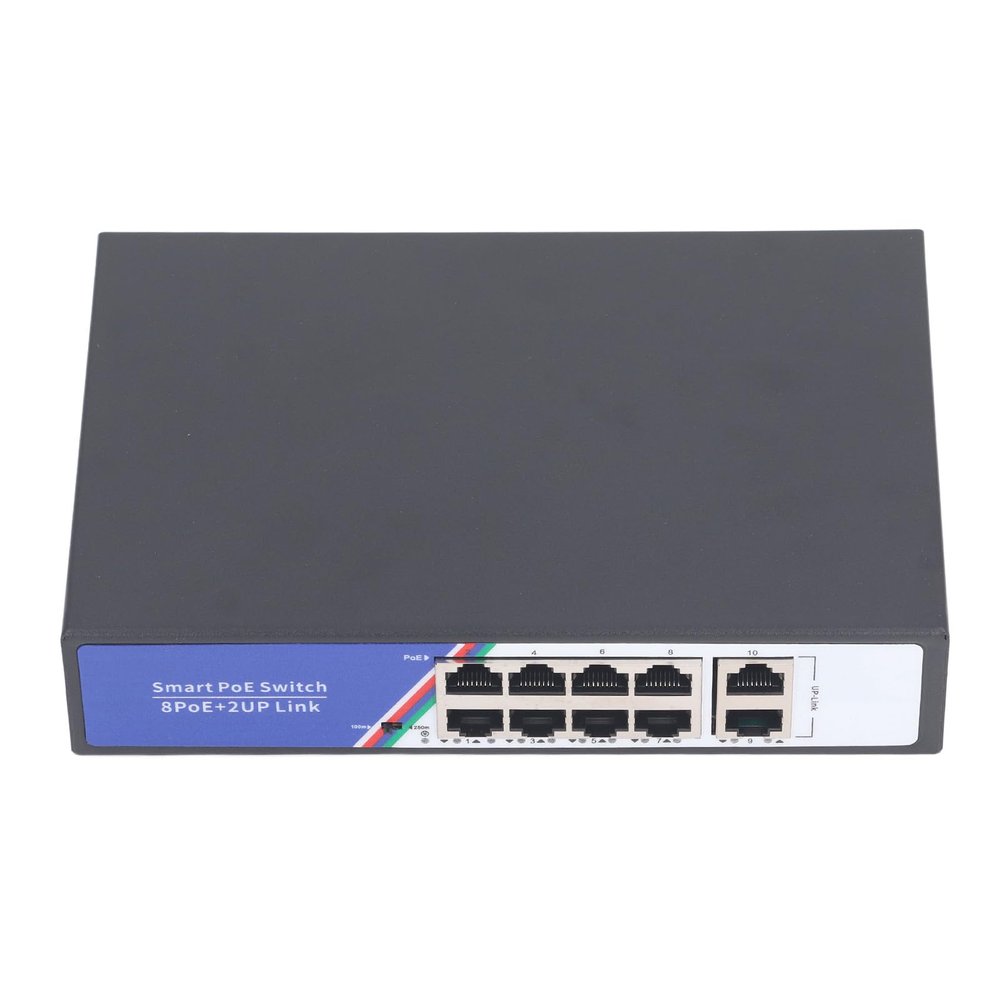

20Gbps Ethernet Switch, 10 Port Ethernet Switch, Plug and Play, Metal Housing, Fanless Design, 20Gbps Capacity, 250m Distance, Switches (US Plug 100-240V)

Description

• [Wide Compatibility]: Compatible with gaming PCs, servers, adapters, and more, this switch is for various settings such as shopping malls, schools, hospitals, and hotels.
• [High-performance Switch Specification]: Experience seamless connectivity with this 10-port Ethernet switch, boasting a 20Gbps switching capacity and 4KV port thunder .
• [User-friendly Design]: Easily set up and use this Ethernet switch - just plug in the power cord and connect the Ethernet cable to your device, no additional configuration needed.
• [Dual Mode Functionality]: Switch between normal mode for regular unmanaged use and extended mode for a maximum distance of 250m, providing flexibility for different networking needs.
• [Metal Housing]: The metal casing ensures durability and excellent heat dissipation, while the fanless design guarantees silent operation, ideal for noise-sensitive environments.

1. Switch Specification: 10 port POE Ethernet switch, unmanaged plug and play, with 20Gbps switching capacity, 4KV port thunder protection, supporting storage forwarding.
2. Convenient Use: This Ethernet switch is easy to operate, just plug in the power cord, connect the Ethernet cable to your device to use, without any other configuration required.
3. Good Compatibility: This POE switch is compatible with gaming PC, server, adapter, and other devices, suitable for shopping mall, community, school, hospital, hotel, and more.
4. Metal Cover and Fanless Design: Features metal casing with excellent durability and heat dissipation. The fanless design ensures silent operation, suitable for noise sensitive environments.
5. 2 Modes: In normal mode, all ports can communicate with each other, used as regular unmanaged PoE switch. In extended mode, the maximum transmission distance of the switch is 250m.

Specification:
Item Type: 10 Port PoE Switch
Model: ZX G0802GN
Chip Solution: RTL8367S+RTL8367S
Standard Protocol: IEEE 802.3af/at
Network Media:
10BASE T: Unshielded twisted pair CAT3, CAT4, CAT5 (maximum 100m)
100BASE TX, 100BASE T: Unshielded twisted pair CAT5 and CAT5e above (maximum 100m)
1000BASE TX, 1000BASE T: Twisted pair CAT6e (maximum 100m)
Fixed Ports: 8 10/100/1000 Base TX Ethernet Ports (Data Power), 2 10/100/1000 Base T Ethernet Ports (Data)
Forwarding Mode: Store and Forward
Media Access Control Address Capacity: 4K
Switching Capacity: 20Gbps
Packet Forwarding Rate: 14.48Mpps
Port Thunder Protection: 4KV
Indicator Light:
Each Device: Power System (Power: Green Light), indicator light is always on when connected to the load
Each Port: Link Activity (Link Act: Green Light), indicator light is flashing when connected to the load
POE Power Supply: 1-8 ports compatible with 802.3af at PoE Power Supply (1/2)+, (3/6)-
Port Features: 2 Modes:
OFF: Normal Mode
All ports can communicate with each other, can be used as a common unmanaged PoE switch
ON: Extension Mode
The maximum transmission distance of the switch is 250 meters
Working Temperature: -10-70 (32-127)
Storage Temperature: -40-85 (-97-142)
Working Humidity: 10%-90% non condensing
Storage Humidity: 5%-95% non condensing

How to Use:
Take out the product and follow the user manual.

PackageList:

1 x Ethernet Switch
1 x Power Adapter
1 x User Manual
