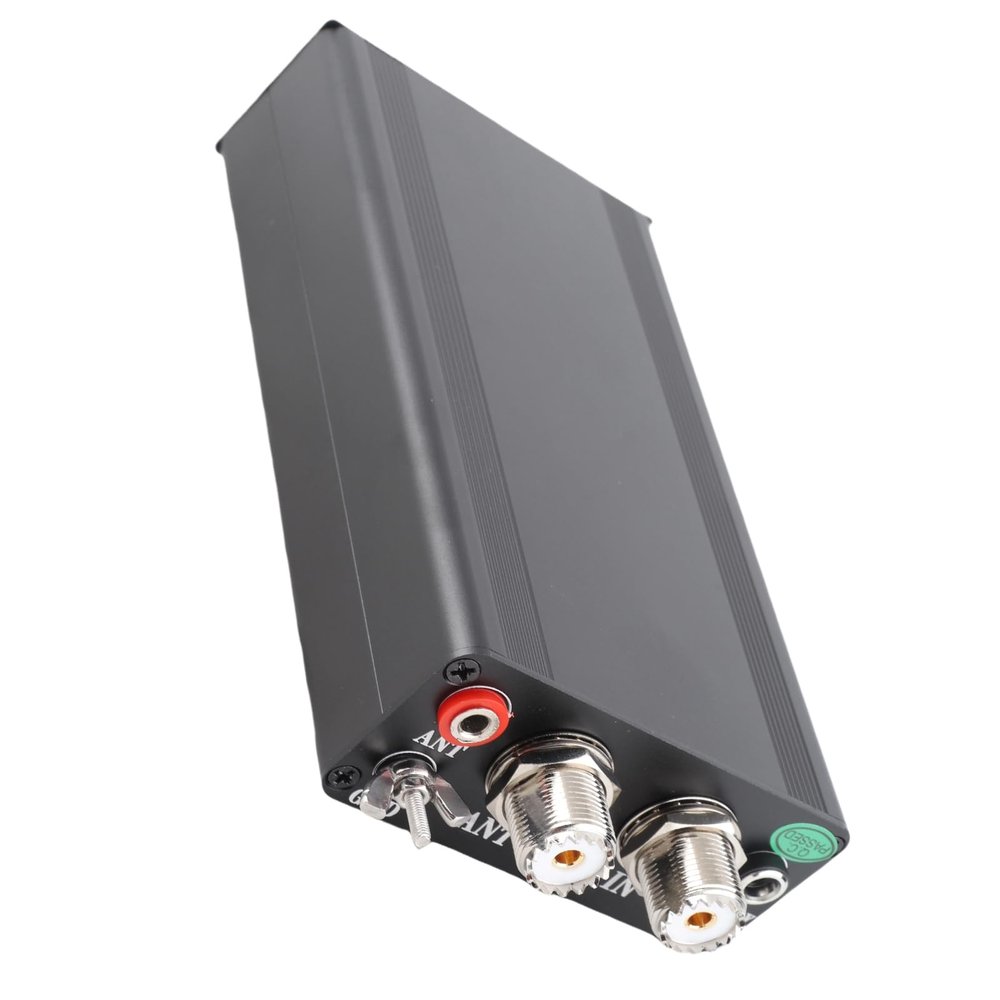

200W Micro Shortwave Automatic Antenna Tuner with Organic LED Display, Aluminum Alloy Shell, Compact Size, Excellent Performance for Home or Vehicle Use

Description

• EXCELLENT PARTS: Adopts C channel 1000V high voltage SMD capacitor, advanced chip and UHF connector to ensure stable performance.
• ALUMINUM ALLOY: The shell of the antenna tuner is made of aluminum alloy, with light weight, fast heat dissipation and resistance.
• COMPACT SIZE: The automatic antenna tuner has compact structure, convenient connection, portable design is suitable for home or vehicle use.
• GOOD PERFORMANCE: Higher level capacitance, larger magnetic ring, thicker wire diameter, greater power bearing capacity, total inductance 12.4uh.
• ANTENNA TUNER: Miniature shortwave automatic antenna tuner, without any control line operation, suitable for most radio stations.

Description

Specification:
Item Type: Automatic Antenna Tuner
Model: ATU-130
Material: Aluminum Alloy
Power Supply Voltage Range: 10-15VDC (+in the center)
Maximum Current Consumption: 500mA
Maximum Working Power: 150W
Starting Tuning Minimum Power: 5W
Minimum Measurable Power: 0.1W
Measurement Accuracy Up to 10W Power: 0.1W
Measurement Accuracy Greater Than 10W Power: 1W
Maximum Installed Inductance: 8.53H
Minimum Installation Inductancee: 0.05H
Micro Automatic Antenna Tuner Features:
Has the function of power meter standing meter (according to BYPASS, straight through mode, one horizontal line in the middle of the screen, the test value is approximate, and the accuracy is lower than that of professional high accuracy meter, for reference).
PIC18F2520, MCU (faster).
Short machine automatic antenna tuner
The third edition adopts the design of 4 large magnetic ring inductors, which generates less heat than the original edition.
HF32, 10A, HF33, 5A relays are used.
High voltage porcelain chip capacitor is adopted.
The maximum measurable value is SSB 275w. It is recommended that the SSB should not exceed 200w for a long time.
For other continuous modes, the power shall not be greater than 100W (FT8, CW, FM, when the standing deviation is large before adjustment, the power shall be reduced as appropriate, and it is recommended to use 10min interval for 5min).
Size: Approx. 38 x 88 x 155mm / 1.5 x 3.5 x 6.1in (excluding projections)
Weight: Approx. 0.5Kg / 17.6oz (portable, suitable for vehicle, indoor and outdoor fixation, etc.)
1.8-50MHz (specifically affected by antenna length and standing deviation).
Tuning Impedance Range: 5-1.2K

packing list:
1 x Antenna Tuner
1 x Cable
1 x Accessory
