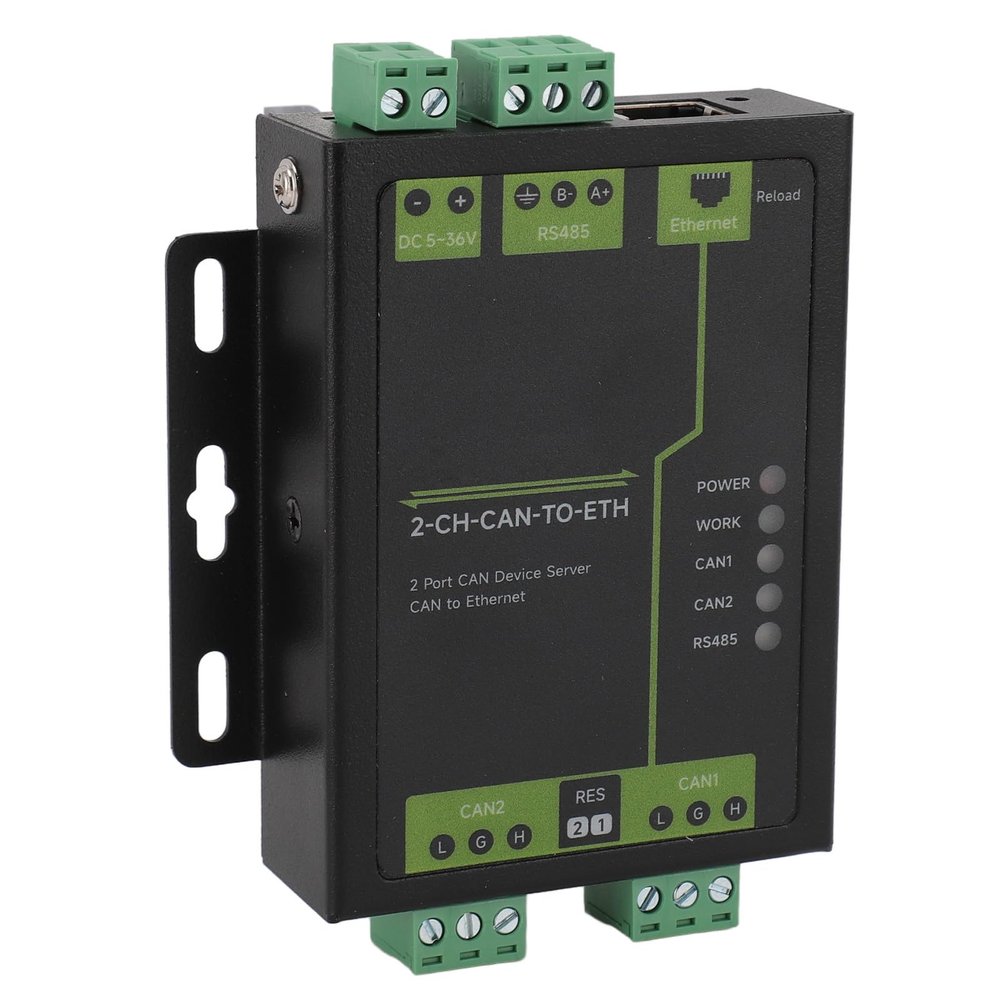

2 Ports CAN Device Server, Professional Industrial Grade 2 CH CAN RS485 Ethernet Double Socket CAN to Ethernet Converter 2 Port CAN to Ethernet Server for Computer

Description

• Effortless Set-Up- Our Ethernet Server facilitates basic and loopback working mode, supports static or DHCP IP addressing and features 1.5KV electromagnetic isolation with an reset switch, significantly simplifying the setup process.
• Firmware Upgrade Facility- The Server supports firmware upgradeability over the network for more user-friendly updates. It offers the unique feature of web port customization and a keepalive mechanism for quick anomaly detection and reconnection.
• Account- Offering password-protected access to web login and network settings, our 2 Port CAN to Ethernet Server ensures maximum security for your device while also supporting CAN relay and CAN to 485 functions.
• Hardware- Empower your device with our 2 Port CAN to Ethernet Server, engineered meticulously to your important hardware components, ensuring stable and effective functioning even in stringent industrial settings.
• Uncomplicated Functionality- Offering 10 100Mbps network port, our Ethernet Server supports Auto MDI MDIX rendering a more secure and convenient usage. It encourages two SOCKET connections through a single port.

1. Hardware Guard: New hardware guard, CAN, serial port, network port, power supply have high guard, suitable for more demanding industrial environments; new ARM kernel, industrial grade operating temperature range, carefully optimized TCP IP protocol, stable and reliable.
2. Easy to Use: 10 100Mbps network port, support for Auto MDI MDIX, cross direct line can be used; support CAN ID filtering function, a variety of filtering methods to use more secure and convenient; a port can support two SOCKET connections.
3. Simple Setup: CAN baud rate support 10K~1Mbps; support BASIC and LOOPBACK working mode; support static IP address or DHCP to get IP address automatically, and can query devices in the network through UDP broadcast protocol; Reload , one key to the default settings, not afraid of wrong settings; RJ45 with Link Data indicator. RJ45 with Link Data indicator, external isolation transformer on the network port, 1.5KV electromagnetic isolation.
4. Upgrade Firmware: The world's only Media Access Control Address (starting with D8 B0 4C); support firmware upgrade through the network, firmware update is more convenient; support for web port (default 80) change; support for keepalive mechanism, you can quickly detect the dead connection and other anomalies and quickly reconnect.
5. Account Security: Support account and password, which can be used for web login and network settings, more secure; power supply interface supports 5.082 terminal block and wide voltage supply (5~36V); CAN relay function; CAN to 485 function.

Specification:
Item Type: 2 Port CAN to Ethernet Server
Material: Aluminium Alloy
Device Interface: CAN RS485 ETH
Hardware:
Working Current:
26mA (avg) 36V
56mA (avg) 12V
124mA (avg) 5V
Power Guard: Power 3, Group Pulse 3
Network Port Specification: RJ45, 10/100Mbps, Cross Direct Connection Adaptive
Network Port Guard: 1.5KV
