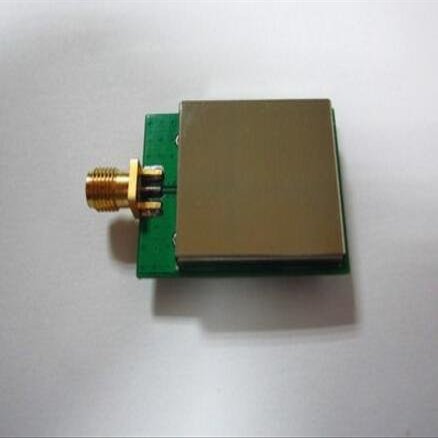

2 pcs lot Zigbee CC2530PA Module RFMD6505PA-LNA chip

Description

1. Using the world's leading front-end RFMD 6505PA-LNA chip, with excellent RF characteristics; 2. Output power greater than +25 dBm, harmonic is very small, is the existing 2.4G amplifier chip in the smallest harmonic; 3. Sensitivity -108dBm, link budget -135dB (without antenna gain). 4. Using four-layer PCB, good stability; 5. All industrial grade components, wide operating temperature range, suitable for a variety of environments, high reliability; 6. Module size 35 25mm. 7. Lead all CC2530 IO pins (with two pins for PA-LNA control), including the debug interface. 8. SMA two antenna interface, Sensitivity -108dBm Output power> + 27dBm Input gain 10dB Noise 2.5dB Emitting peak current 550mA Receive current 32mA Quiescent current 110mA Sleep current 10uA Operating voltage 3.3V Transmission distance of 2000m Data rate 250Kbps Number of channels 16 Antenna IPEX or SMA Module size 35 25 5 (mm)
