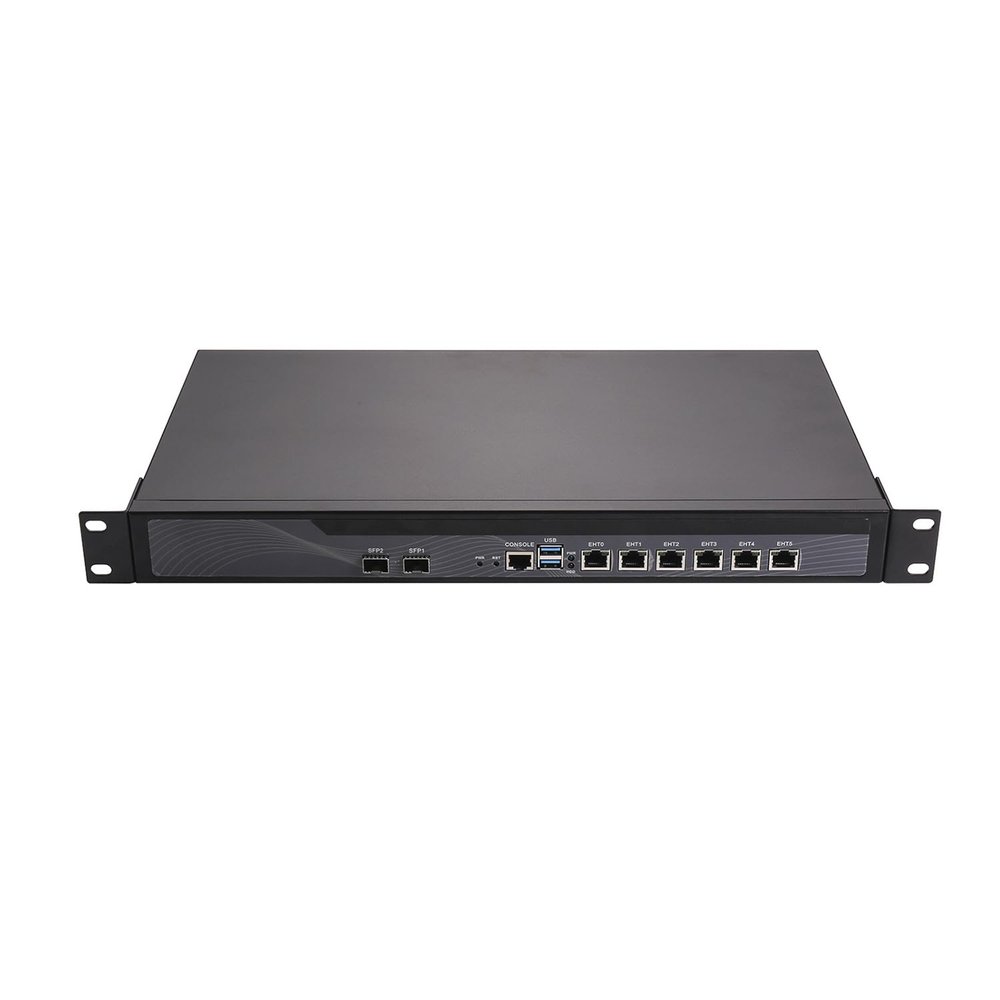

1U Rackmount Firewall Hardware, OPNsense, VPN, Network Appliance, I3 13100, RS48, 6 x 2.5GbE LAN, 2 x SFP28 25GbE Optical, COM, VGA, 0 RAM, 0 Storage, Barebone No System

Description

• HUNSN RS48 equipped with Intel i3 13100 processor, compatible with many freebsd based router systems, linux distros, or win.os supported, easy configuration and management, support intel aes new instructions
• Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
• Standard 19 inch 1u cabinet, 300w power, with power cord, make sure to use the big brand memory and ssd with quality assurance
• Designed with 2 x sfp28 25gbe optical, console, 2 x usb3.2, 6 x 2.5gbe 226-v lan, vga, power switch, size at 450 x 270 x 45mm
• Original industry network motherboard, low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation

Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN RS48
CPU: Intel I3 13100 or the same level replacement cpu, ship one of them
AES-NI Supported: Yes
Chipeset: Intel H610
Memory: 2 x SODIMM DDR4 3200 MT/s, Max. 64GB RAM
Storage: 1 x M.2 NVME 2280 PCle4.0 X4
I/O Interface: 2 x SFP28 Optical, Console, 2 x USB3.2, 6 x LAN, VGA, Power Switch
Expansion: 1 x M.2 slot for PCIE/CNVI WiFi, 1 x M.2 slot for 5G, 1 x Mini PCIE slot for 4G, with Nano SIM slot
Chassis: 1U 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Network Card: 6 x Intel I226-V 2.5GbE LAN, 2 x Mellanox MCX4121A-ACAT 25GbE SFP28
WAN-LAN Throughput: Throughput through 2.5 gigabit nic from lan to wan forwarding speed is 2.5Gbps
Throughput through 25 gigabit optical from lan to wan forwarding speed is around 25Gbps
Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling
Power: DC300W 100-240V AC/50-60HZ
Size: 450 x 270 x 45mm
Weight: 5.5kgs
Packing List: HUNSN RS48 firewall appliance, rackable ears, power cord, warranty card
System Compatibility: The latest architecture only supports the latest system, Windows 11, UBUNTU 23.02 etc
Compatibility:firewalls for pfsense, opnsense and other popular open-source software solutions, supports UEFI only
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U Rackable, 9-15 inch rackable, all are available in our shop,
Bookmark HUNSN store, for customization needs and other needs, we shall be glad to supply,contact us to get a timely reply
