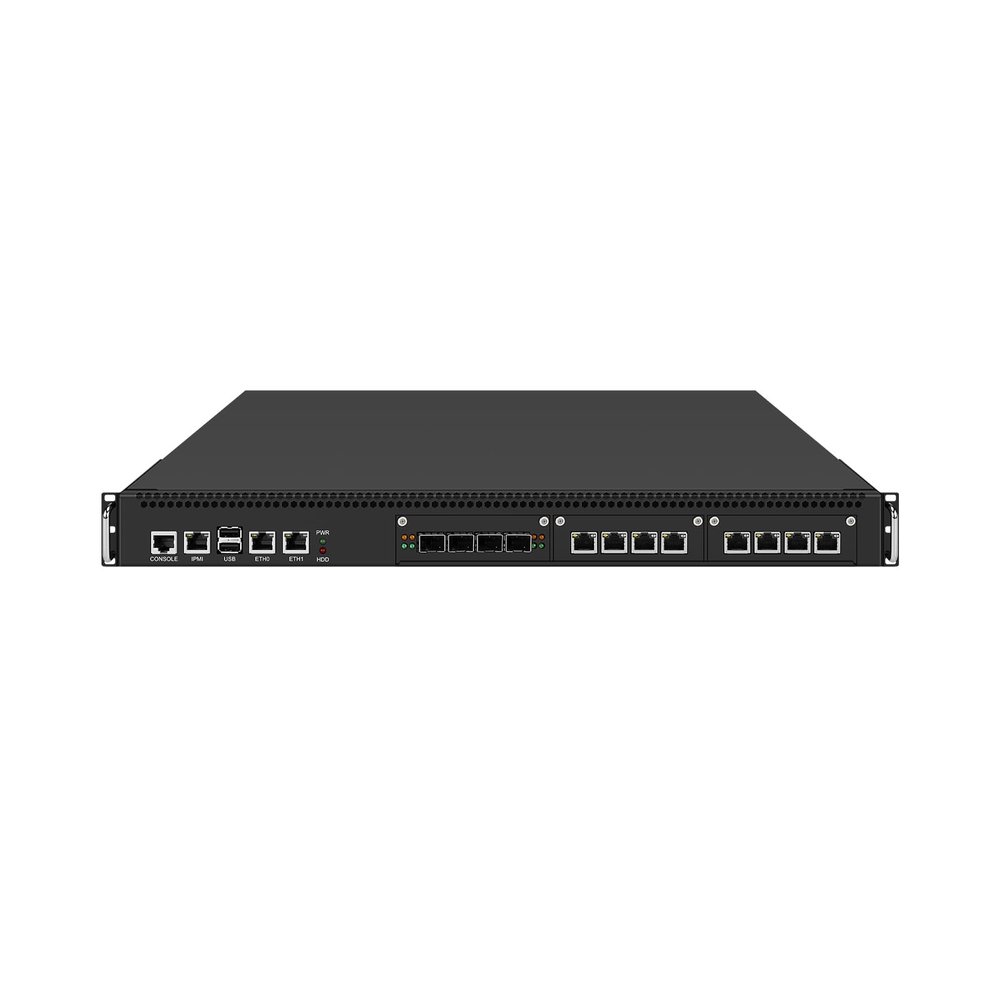

1U Firewall Appliance XEON Server with IPMI, OPNsense, VPN, Dual E5 2697 V4 CPU, RJ66, C612, 2 x 1GbE LAN, 4 x X710 SFP+, 8 x 2.5GbE LAN, 0 RAM, 0 Storage, Barebone No System

Description

• HUNSN RJ66 equipped with intel xeon processor e5-2697 v4, compatible with many freebsd based router systems, linux distros, or win.os supported, easy configuration and management, support intel aes new instructions
• Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
• Standard 1u, atx power, with power cord, make sure to use a big brand memory and ssd with quality assurance, ready to run straight out of the box
• Designed with console, ipmi, 2 x usb2.0, 2 x i210 / i211 lan, 4 x x710 sfp+, 8 x 226-v lan, vga, power switch, ac socket, size at 440 x 600 x 45mm
• Original industry network motherboard, low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation

Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN RJ66
CPU: 2 x Intel Xeon Processor E5-2697 v4 45M Cache, 2.30 GHz
AES-NI Supported: Yes
Chipeset: Intel PCH C612
Memory: 7 x ECC/ECC-REG DIMM DDR41600/1866/2133/2400 MAX 256G, each slot supports up to 32G,
a single CPU supports up to 128G, dual CPUs support up to 256G memory
Storage: 1 x mSATA SSD, 1 x CF, 2 x M.2 NVMe PCle 3.0 x4 2280, 2 x 2.5/3.5 Inch SATA SSD/HDD
I/O Interface: Console, IPMI, 2 x USB2.0, 2 x I210 / I211 LAN, 4 x X710 SFP+, 8 x 226-V LAN, VGA Aspeed AST2400,
Power Switch, AC Socket
Expansion: 3 x PCI-E x8 / 1 x PCI-E x16, 1 x Mini PCIE slot for WiFi
Chassis: 1U 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Network Card: 1 x RTL-8211 E IPMI, 2 x Intel 1GbE I211/I210 LAN, 4 x SFP+ model is 10GbE X710, 8 x 2.5GbE 226-V LAN
WAN-LAN Throughput: Throughput through 1 gigabit nic from lan to wan forwarding speed is 1Gbps
Throughput through 10 gigabit optical from lan to wan forwarding speed is around 5Gbps or more
Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling
Power: 800W 100-240V 50Hz/60Hz
Size: 440 x 600 x 45mm
Weight: 8.7kgs
Packing List: HUNSN RJ66 firewall appliance, rackable ears, power cord, warranty card
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported. UEFI support only
Compatibility:firewalls for pfsense, opnsense and other popular open-source software solutions
