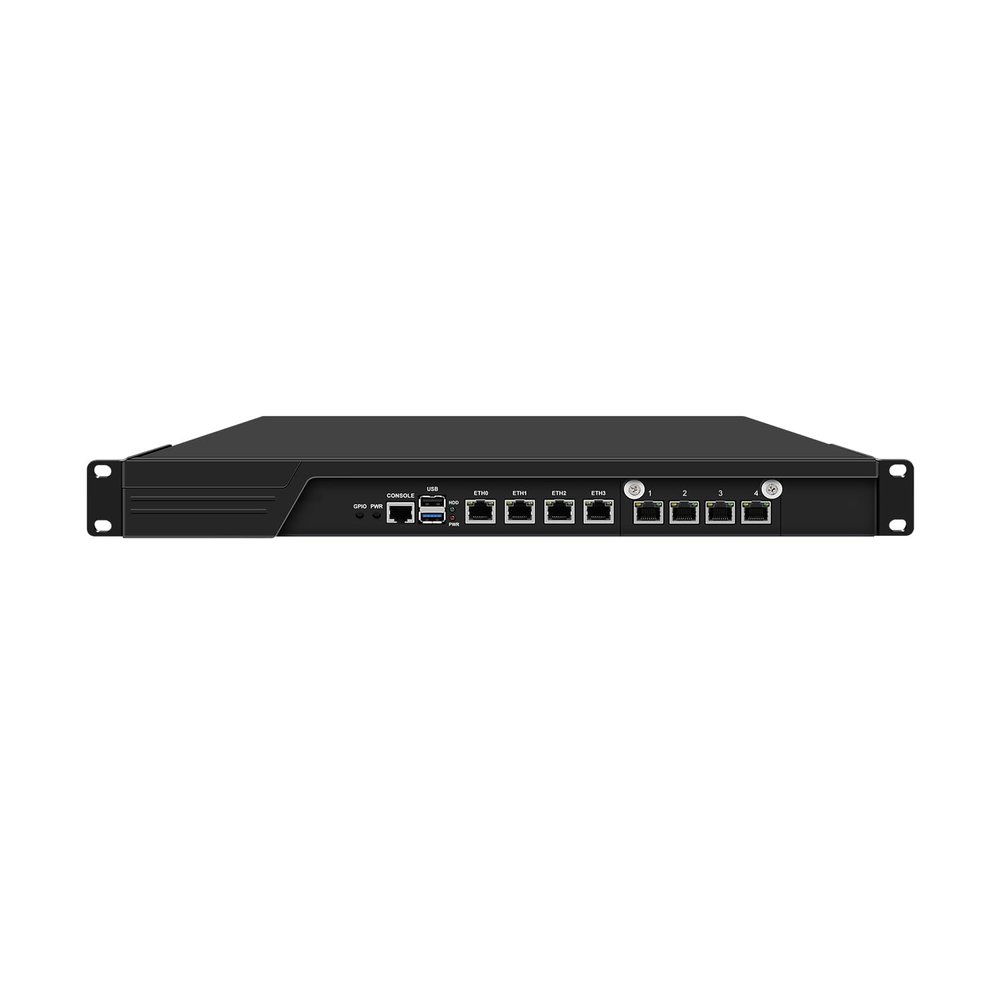

1U Firewall Appliance with Redundancy Power Supply, OPNsense, VPN, Router PC, N100, RJ55, 8 x 226-V 2.5GbE LAN, Console, VGA, GPIO, Dual Power, 0 RAM, 0 Storage, Barebone No System

Description

• HUNSN RJ55 equipped with intel processor n100, compatible with many freebsd based router systems, linux distros, or win.os supported, easy configuration and management, support intel aes new instructions
• Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
• Standard 19 inch 1u cabinet, with a redundancy power supply, dual 65w power supply, with power cord, make sure to use a big brand memory and ssd/hdd with quality assurance
• Designed with gpio, pwr, console, usb2.0, usb 3.0, 8 x lan, vga, size at 440 x 322 x 44mm
• Original industry network motherboard, low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation

Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN RJ55
CPU: Intel Processor N100 6M Cache, up to 3.40 GHz
AES-NI Supported: Yes
Memory: 1 x SODIMM DDR5-4800 MT/s, max. 32GB RAM
Storage: 1 x CF-50P card slot, 1 x mSATA SSD, 1 x 2.5 Inch SATA SSD/HDD, 3 choose 1.
Default is mSATA, CF/2.5 inch SATA SSD/HDD support needs to change resistance, contact us to customize
I/O Interface: GPIO, PWR, Console, USB2.0, USB 3.0, 8 x LAN, VGA
Expansion: 1 x Mini PCIE slot for WiFi / MPE 4G, with Nano SIM slot, 1 x PCIEX8 for 4X signal
Chassis: 1u 19 inch cabinet, rackable, with mounting bracket ears, wall hanging, foot pad
Network Card: 8 x Intel 2.5GbE I226-V
WAN-LAN Throughput: Throughput through 2.5 gigabit nic from lan to wan forwarding speed is around 2gb
Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling
Power: 2 x 65W 12V 5.42A, 90~264VAC, 47~63Hz, with a redundancy power supply
Size: 440 x 322 x 44mm
Weight: 6.5kgs
Packing List: HUNSN RJ55 firewall appliance, rackable ears, power cord, warranty card
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported. UEFI support only
Compatibility: firewalls for pfsense, opnsense and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U Rackable, 9-15 inch rackable, all are available in our shop,
Bookmark HUNSN store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply
