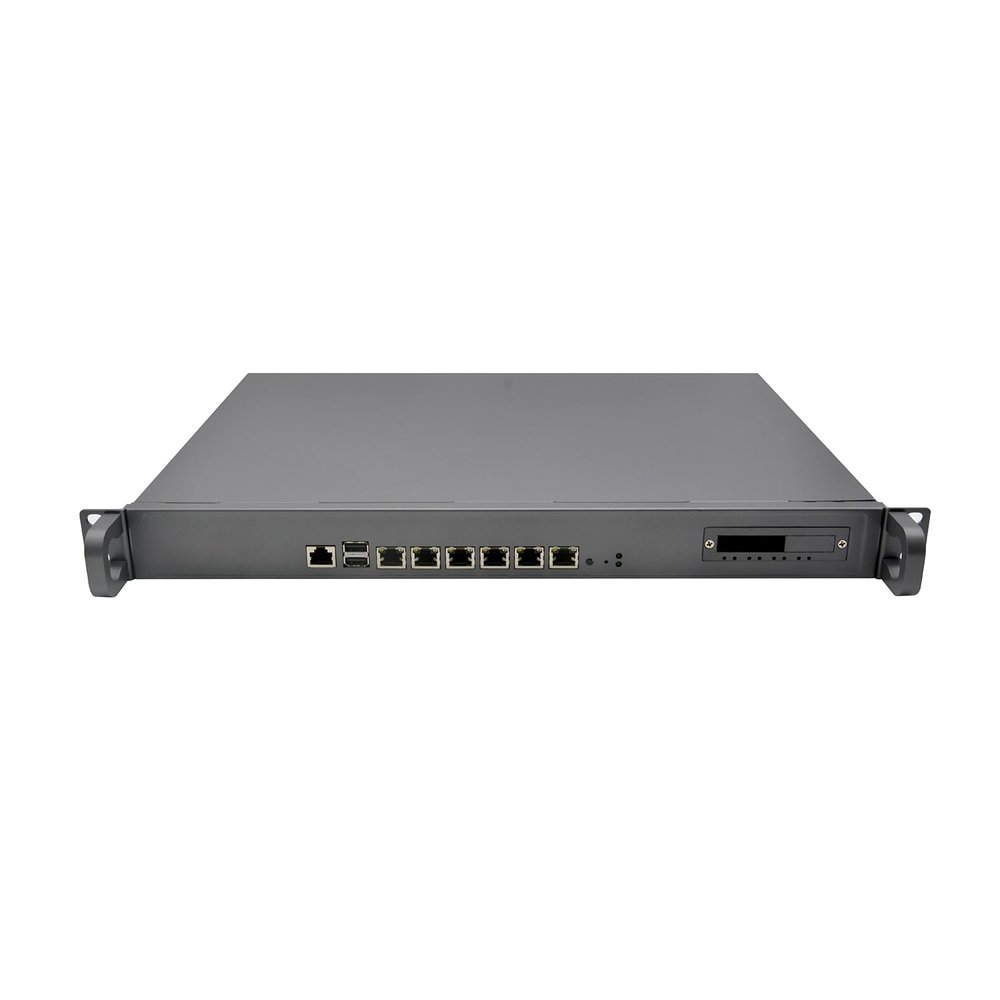

1U Firewall Appliance 10GbE, OPNsense, VPN, Network Rackmount, Intel I5 9400, RZ05, 6 x Intel 2.5GbE I226-V, 4 x SFP+ XL710 BM1 10000Mbps, 0 RAM, 0 Storage, Barebone No System

Description

• HUNSN RZ05 equipped with Intel i5 9400 processor, compatible with many freebsd based router systems, linux distros, or win.os supported, easy configuration and management, support intel aes new instructions
• Please note, this is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
• Standard 1u, atx power, with power cord, make sure to use a big brand memory and ssd with quality assurance
• Designed with console, 2 x usb2.0, 6 x lan, 4 x sfp+, vga, size at 440 x 320 x 46mm
• Original industry network motherboard, low power consumption, low heat, use dedicated turbo silent cooling fan to ensure long-term operation

Please note: This is a barebone only. A system memory, a storage drive and an operating system are needed to complete this system
Model Number: HUNSN RZ05
CPU: Intel I5 9400 or the same level replacement cpu, ship one of them
AES-NI: Yes
Chipeset: Intel B250/Q270
Bypass: Default without Bypass, LAN1-4 supports BYPASS, contact us to customize
Memory: 2 x SODIMM DDR4-2400, max. 64gb ram
Storage: mSATA SSD Optional for TPM/4COM and 2.5 / 3.5 Inch SATA SSD/HDD
I/O Interface: Console, 2 x USB2.0, 6 x LAN, 4 x SFP+, VGA
Expansion: 1 x M.2 slot for WiFi, with NANO SIM slot, 1 x M.2 slot for 5G
Network Card: 6 x Intel 2.5GbE I226-V, 4 x SFP+ Intel xl710-bm1 10000Mbps
WAN-LAN Throughput: Throughput through 2.5 gigabit nic from lan to wan forwarding speed is >1Gbps
Throughput through 10 gigabit optical from lan to wan forwarding speed is around 4.8Gbps
Cooling System: The processor uses the ball silent cooling fan to ensure the long time work and stable cooling
Power: 250w 100-240v 50hz/60hz
Operating Temperature: -1050
Storage Temperature: -2070
Relative Humidity: 5%-95% relative humidity, no condensation
Size: 430 x 320 x 44.5mm
Weight: 6kgs
Packing List: HUNSN RZ05 1u firewall appliance, rackable ears, foot pad, power cord, warranty card
System Compatibility: 5.10.x and above core-based freebsd router systems, linux distros, or win.os supported.
Compatibility: firewalls for pfsense, opnsense and other popular open-source software solutions
