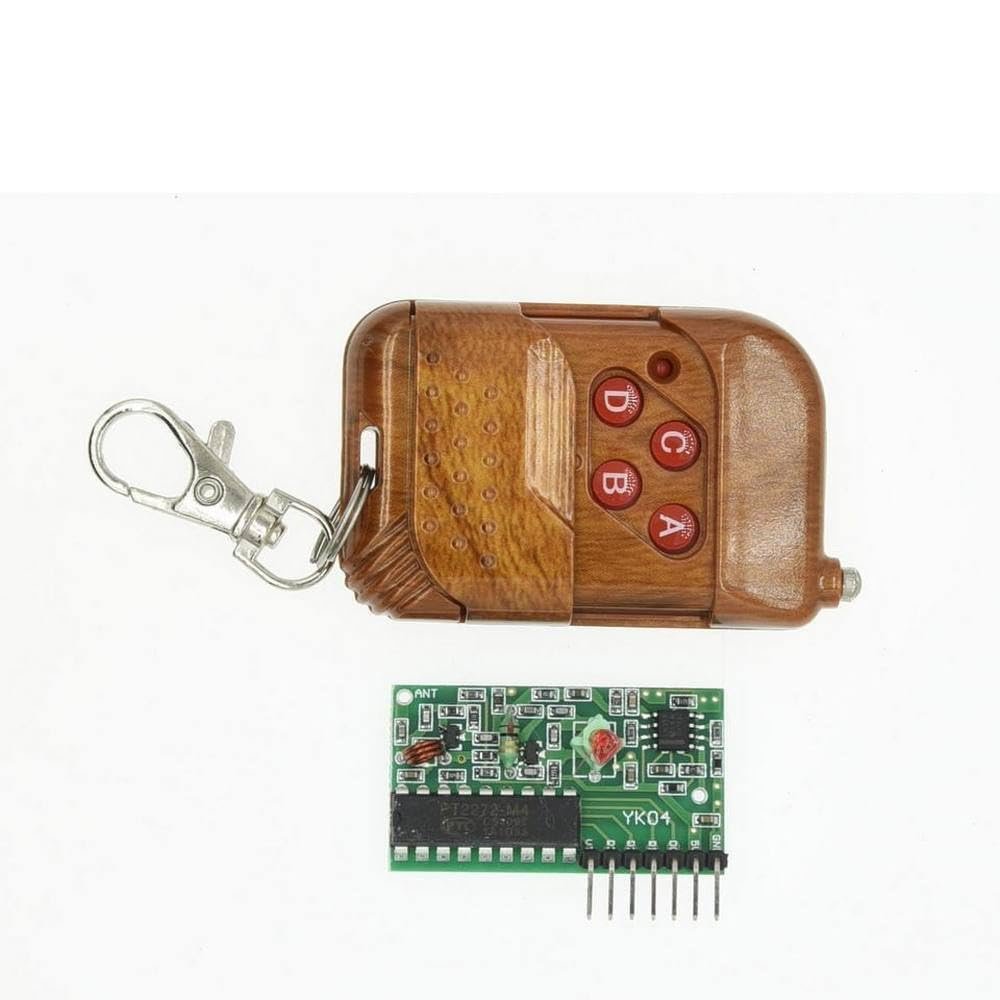

1set IC 2262/2272 4 CH 315Mhz Key Wireless Remote Control Kits Receiver Module

Description

• 1set IC 2262/2272 4 CH 315Mhz Key Wireless Remote Control Kits Receiver module

Operating Voltage(V):DC5V
Quiescent Current(MA):4.5 Ma

Modulation: AM (OOK)

Operating temperature:-10~ + 70

Receiver sensitivity(DBm):-105dB
working frequency(MHz):315Mfrequency

Encoding : Encoding pad ( fixed code )

Way of working:M4( Jog : Press grimdeath outputs , let go to stop output )

size(L WH):41 * 23 * 7 mom

II. Products Features :

Super-regenerative receiver moduleLCOscillation circuit , containing plastic surgery to enlarge , output data signal is decoded high-level signal , extremely easy to use , and inexpensive , it is widely used.Quad band decoded output ( also can be changed to six-way jog or interlock output ) , easy to use ; frequency debugging easy , short lead times ; product quality and consistency, and cost-effective.
Receiving module has a wide receiver bandwidth , typically 10MHz, Factory general emphasis315MHzor433.92MHz( If you have special requirements for adjustable frequency adjustment range and frequency of266MHz ~ 433MHz. ) The receiver module commonly usedDC5VPower supply , if there are special requirements for adjustable voltage range.

three.Pin and use:

Pin

name

Function Description

1

VT

Output status indication

2

D3

Data Output

3

D2

Data Output

4

D1

Data Output

5

D0

Data Output

6

5V

The positive power supply

7

GND

Negative power supply

ANT

Access antenna terminal

It received a total of eight external interface module , above the English representation ."5V"Showing positive power supply ,"D0.D1.D2.D "3"It represents the
