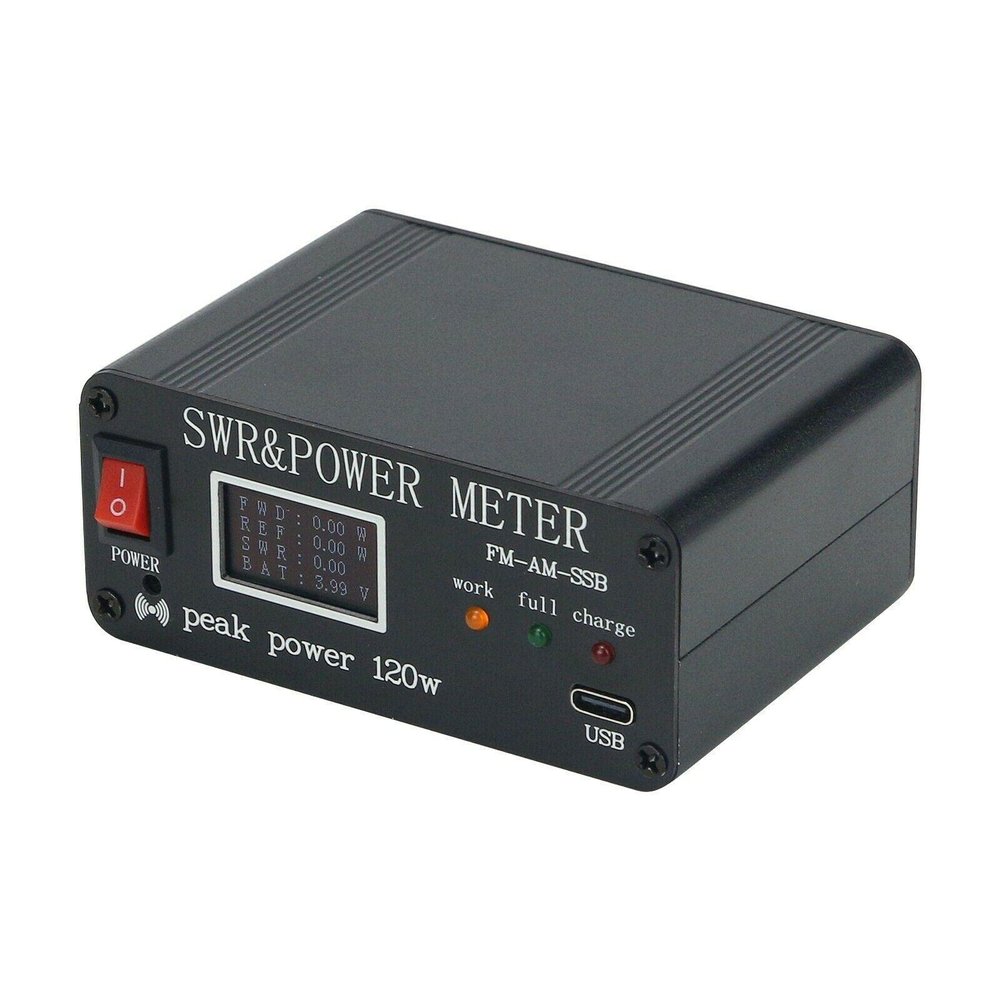

1*Power Watt Meter SWR & Power Meter Peak Power 120W FM-AM-SSB SWR 1.8MHz-50MHz

Description

• Frequency range: 1.8MHz-50MHz
• Measurement range: 0.5W-120W (up to 210w. Used below 120w for long-term FM, AM, and CW modes. SSB mode is optional)
• Measurement accuracy: < 5%
• Standing wave range: 1.0-99.99
• Access interface: SL16 (M socket)

Feature:
After booting, the version information of the device will be displayed, and its power standing wave measurement interface will be displayed after 3 seconds. It also shows you its battery level. English interface is available. And call sign can be customized (need to be notified in advance).

Specifications:
Frequency range: 1.8MHz-50MHz
Measurement range: 0.5W-120W (up to 210w. Used below 120w for long-term FM, AM, and CW modes. SSB mode is optional)
Measurement accuracy: <5%
Standing wave range: 1.0-99.99
Access interface: SL16 (M socket)
Charging interface: type-c
Size of aluminum alloy shell: 63 x 88 x 38mm/2.5 x 3.5 x 1.5" (excluding size of protruding parts)
Battery capacity: 1000mAh
Insertion loss: <0.1db

Indicator Light and Buzzer:
Red light is on when it is charging. Green light will be on when charging is finished. And yellow light is on when it is working.
If the standing wave is greater than 2.5, the buzzer will prompt intermittently.
If the standing wave is greater than 3.0, the buzzer will prompt continuously.
If the battery is under-voltage, the buzzer will prompt continuously.

Package Included:
1*SWR Power Meter

Notice:
The buttons on the product are red and black, we ship randomly, thank you! !
