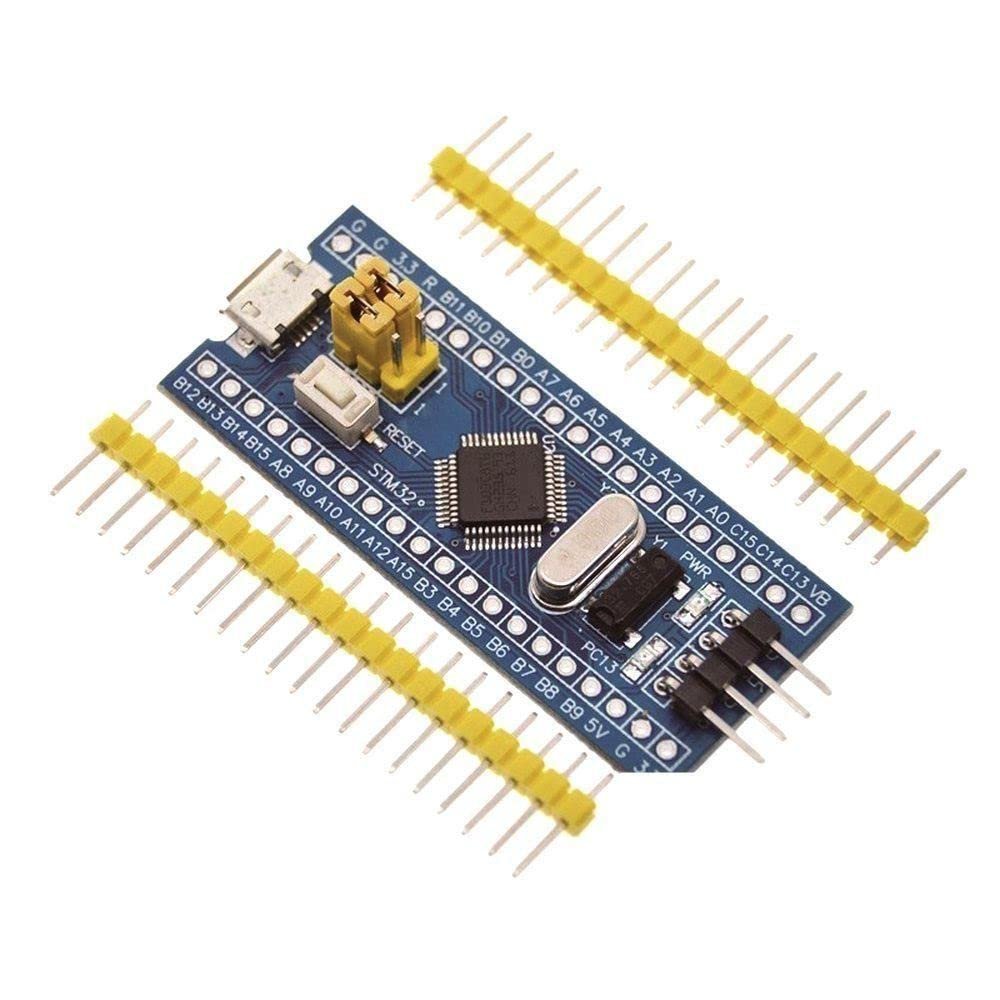

1pcs/lot STM32F103C8T6 ARM STM32 Minimum System Development Board Module for arduino CS32F103C8T6

Description

• 1pcs/lot STM32F103C8T6 ARM STM32 Minimum System Development Board Module For arduino CS32F103C8T6

|Kernel: ARM 32-bit CortexTM-M3 CPU
72MHz operating frequency
Single cycle multiplication and hardware division
Memory
from 64K or 128K bytes of flash program memory
up to 20K bytes of SRAM
l clock, reset and power management
2.0 to 3.6 volt supply and I/O pins
Power-on/power-off reset (POR/PDR), programmable voltage monitoring
(PVD)
4~16MHz crystal oscillator
Embedded factory-tuned 8MHz RC oscillator
Embedded 40kHz RC oscillator with calibration
PLL that generates the CPU clock
32kHz RTC oscillator with calibration
Low power consumption
Sleep, stop and standby modes
V BAT supplies power to the RTC and the backup register
L2 12-bit analog-to-digital converters with 1us conversion time (up to 16
Conversion range: 0 to 3.6V
Double sampling and hold function
Temperature sensor
DMA:
7-channel DMA controller
Supported peripherals: timer, ADC, SPI, I 2 C and
USART
Up to 80 fast I/O ports
26/37/51/80 I/O ports, all I/O ports can be mapped to
16 external interrupts; almost all ports can tolerate 5V letters
number
Debug mode
Serial single-wire debugging (SWD) and JTAG interface
Up to 7 timers
3 16-bit timers with up to 4 timers per timer
Input capture/output compare/PWM or pulse count channels
And incremental encoder input
1 16-bit with dead zone control and emergency brake for motor
Controlled PWM Advanced Control Timer
2 watchdog timers (independent and window type)
System time timer: 24-bit self-decreasing counter
Up to 9 communication interfaces
Up to 2 I 2 C interfaces (supports SMBus/PMBus)
Up to 3 USART interfaces (supporting ISO7816 interface,
LIN, IrDA interface and modem control)
Up to
