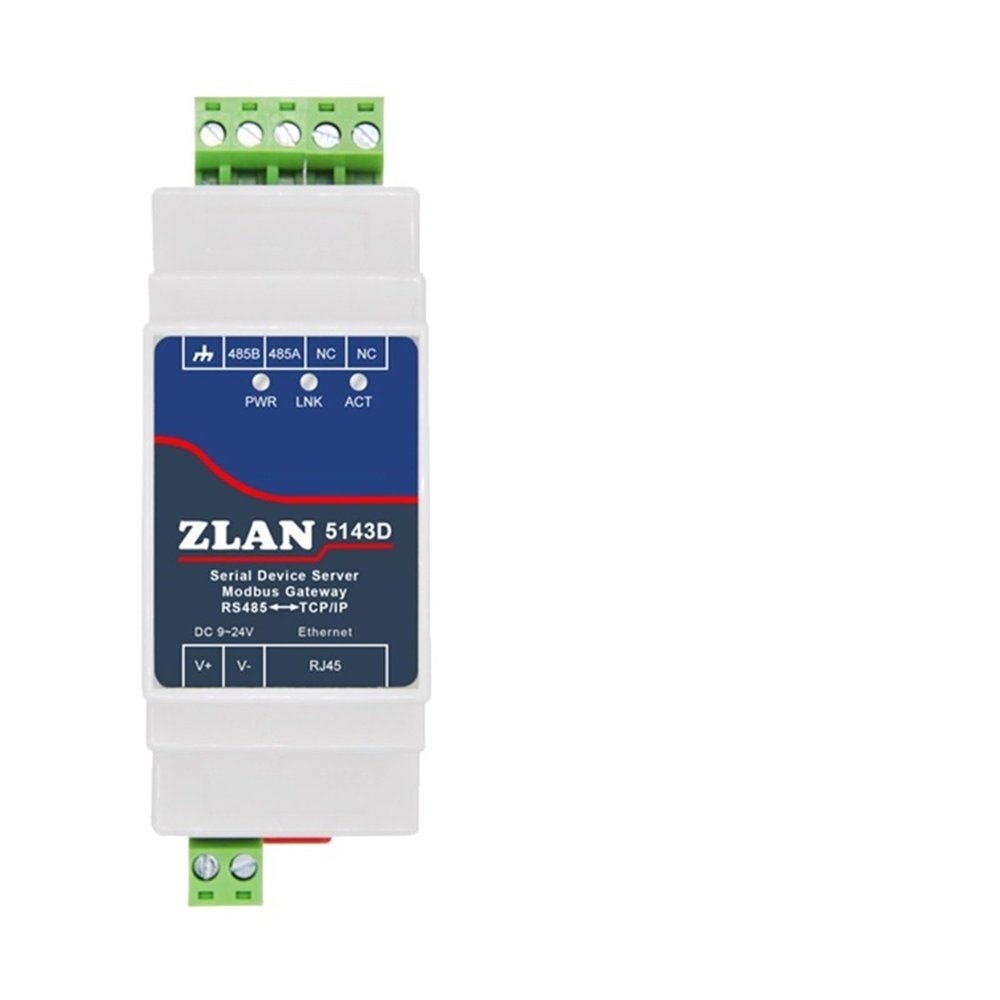

1Pcs ZLAN5143D DIN Rail RS485 to Ethernet RJ45 Converter Server Device Support Modbus RTU Gateway MQTT

Description

• TCP/IP Protocol Stack:Stable and reliable TCP/IP protocol stack for independent intellectual property.
• Industrial Power Supply:Reliable 9-24V wide voltage range power supply, suitable for industrial environments.
• Rich Indicator & Easy Debugging:Effortless debugging with LINK lights for cable and connection status.
• Modbus Tutorial For Beginners Pdf|Can Network Protocol|Full Duplex & High Speed Converting:Achieve continuous, high-speed data transmission with full duplex support, ensuring no packet loss.
• High Cost Performance:Maximize your investment with a cost-effective solution for serial device networking upgrades.

ZLAN5143DRS485 to Ethernet RJ45 Converter Modbus RTU Gateway Converter baud rate multi host serial device server
ZLAN5143D can realize the data transparent transmit between RS485and TCP/IP, easily make serial devices connected to Ethernet and Internet, achieving the network upgrading for serial devices. Support full duplex and uninterrupted communication of RS485port; RS485are embedded with protection; RS485 can be used at the same time without switch. Support DHCP, DNS. Support virtual serial port, the serial PC software no need any modifying.
ZLAN5143D has the function of Modbus converting to Modbus RTU, and the detailed usage please refer to .
1) one serial port: RS485
2) Industrial power supply mode: It can supply 9~24V wide range voltage.
3) Using TCP/IP protocol stack with independent intellectual property, stable and reliable.
4) Rich indicator, easy to debug. It has 10M-LINK light to indicate the cable connection, LINK light indicate connections establishing, and serial port to , to serial port has single indicator lights, convenient to detect whether it is the master computer did not send data or the slave computer did not reply.
Features
1)Support full duplex, high speed converting, and no packet lost.
ZLAN5143D is the first type of full duplex, continuous, and low cost serial server in industry. It support simultaneously converting between Ethernet &Serial with large bulk of data with no pause and also no data is lost
2High cost performance
ZLAN5143D is designed by concept of intensification after ensure the stability It highly takes the cost of networking upgrading in count
3)Support Server, Client, UDP model, UDP multicast.
4)Support baud rate 1200~115200bps, data size 5~9bits, parity of None, Odd, Even, Mark, Space.
6)Equipped freely with our Windows Virtual Serial & Device Management Tool ZLVirCom It supports virtual serial and can onekey searching ZLAN5143D or modifying parameters
7Provide device management library Windows DLL library. It's convenient for user to develop program with VC, VB, , C++ Builder. User need only use read or write function to communicate with ZLAN5143D.
8)The innovative disconnecting detecting method, whether ZLAN5143D work in Server mode or Client mode it can automatically reestablishing connection after network broken, to ensure the data real-time accessibility.
9)With build-in Web server, its parameters can be modified by web browser.
10)Support DHCP, easy for IP management and solve IP confliction.
11)Support DNS. It fulfills the need of access data server through domain name.
12)Support 100 connections communicate with network modules at the same time.
13)As a client, can connect to 7destination IP.
14)Flexible serial data framing setting. It fulfills all kinds of serial data frame requirement.
15)UDP mode support dynamic destination address mode. It helps for multi-user mange one serial server.
17)Support searching serial servers and modifying parameters through Internet remotely
18)Support parameter modifying protection, preventing modifying by accident. Support running with default parameters.
19)Build-in 2 KV electrical plus protection in RJ45.
20)High protection of electromagnetic interference.
Figure
Interface:
2 PIN terminal for RS485
Size:
L x W x H = 8.7cm x 3.6cm x 5.9cm
Communicate interface
Ethernet:
10M, 2KV electrical plus protection
Serial
RS485x 1:RXD,TXD,GND
Serial parameters
Baud rate:
300~115200bps
Parity:
None, Odd, Even, Mark, Space
Data size:
5~9
Flow control:
NO
Software
protocol:
ETHERNET, IP, , UDP, HTTP, ARP, ICMP, DHCP, DNS, Modbus
Setting method :
Modbus , ZLVirCom, WEB browser, device management library
Net communication method:
Socket, Virtual serial , device management library
Work mode
server, client, UDP
Power
Power:
9~24V DC.
Environment
Running temperature:
-40~85
Storage temp:
-40~120
Humidity:
5~95%RH
==========
Model Number : ZLAN5143D
Item Type : Communication Converter
